- Frequency Range: 868 MHz (customizable 433 MHz, 470 MHz, 915 MHz, and 1421050 MHz)
- High Sensitivity: Receives signals as low as -126 dBm
- Output Power: Adjustable up to 20 dBm
- Low Power Consumption: 13.5 mA in high-performance mode, 10.7 mA in low-power mode, and < 0.1 A in sleep mode
- Data Rate: Supports 0.1 to 1000 Kbps
- Modulation Types: (G)FSK, 4(G)FSK, (G)MSK, ASK
- Operating Voltage: 1.8V to 3.6V
- Temperature Range: -40C to +85C

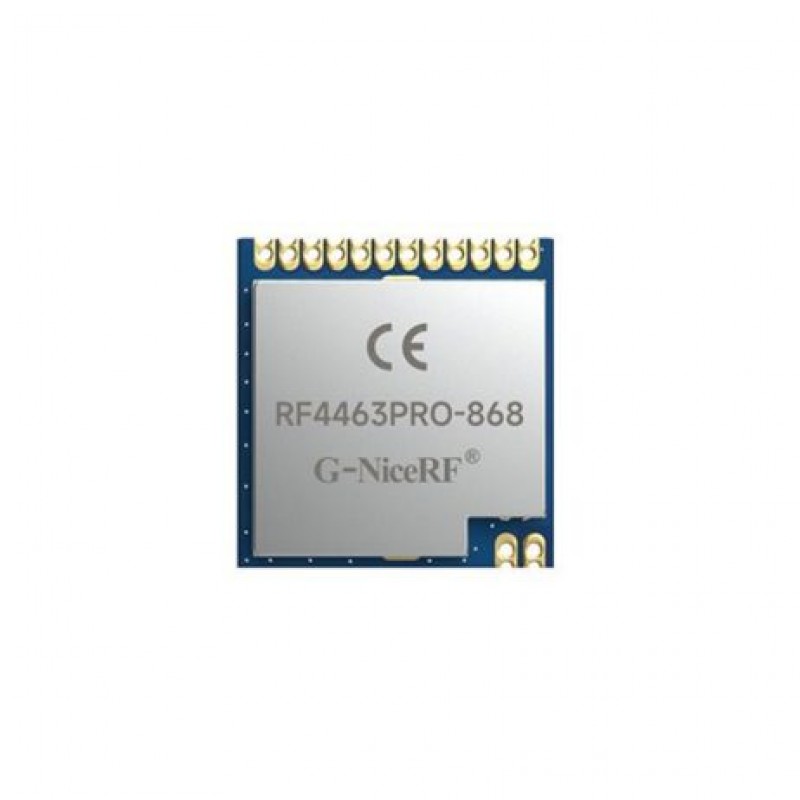

G-NiceRF RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal
- Product Code: EPI28229
- Availability: 5
-
Rs.690.30
OR
The G-NiceRF RF4463PRO-868 is a high-performance, CE-RED certified RF module designed for wireless communication in the 868 MHz ISM band. Featuring the Silicon Labs Si4463 C2 chip, it offers a receiving sensitivity of -126 dBm and a maximum output power of 20 dBm for extended range and reliable performance. With low power consumption (13.5 mA in high-performance mode) and versatile modulation options, it supports data rates from 0.1 to 1000 Kbps. The module is ideal for applications like remote control, sensor networks, and industrial control, and is compliant with RoHS and REACH standards. G-NiceRF RF4463PRO-868 operates across a wide temperature range (-40C to +85C) and simplifies certification with CE-RED approval, making it a cost-effective solution for various wireless systems.
Features:
Package Includes:
1 x G-NiceRF RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
