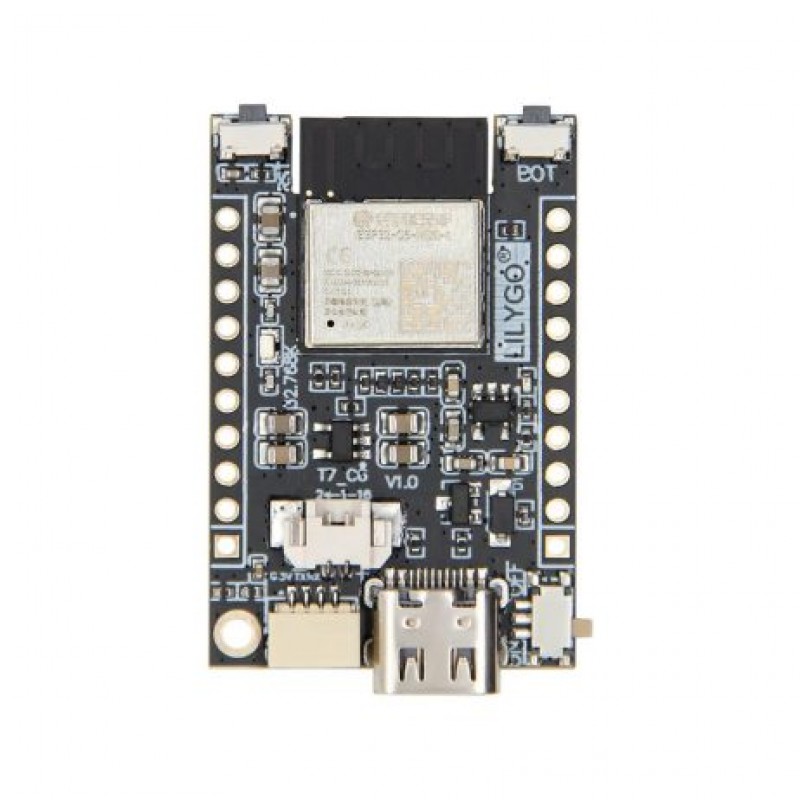

LILYGO T7-C6 Development Board

The LILYGO T7-C6 is a compact development board featuring the ESP32-C6-MINI-1 module, which is based on a RISC-V architecture and operates at up to 160 MHz. It offers 4MB of Flash memory and supports wireless protocols including 2.4GHz Wi-Fi 6, Bluetooth 5 (LE), and 802.15.4, making it suitable for IoT applications. The board is programmable in languages such as C/C++, MicroPython, and Lua, and is compatible with platforms like Arduino IDE, VS Code, and ESP-IDF. Onboard features include a Qwiic 4-pin connector, BOOT and Reset buttons, and a switch for easy integration with various sensors and modules. It is available in two versions: one with an external antenna module (N1) and another with a built-in antenna module (N4).

Features:

1. ESP32-C6 Chip: Powered by the ESP32-C6-MINI-1, a low-power RISC-V processor running at up to 160 MHz.
2. 4MB Flash Memory: Offers 4MB of Flash storage for running applications and storing data.
3. Wi-Fi 6 Support: Built-in 2.4GHz Wi-Fi 6 support for fast and reliable wireless communication.
4. Bluetooth 5 (LE): Enables Bluetooth Low Energy for efficient device connectivity.
5. 802.15.4 Protocol: Supports 802.15.4 for applications like Zigbee and Thread.
6. Multiple Programming Languages: Supports C/C++, MicroPython, and Lua for flexible development.
7. Arduino IDE Compatible: Works seamlessly with popular programming environments like Arduino IDE, ESP-IDF, and VS Code.
8. Qwiic 4-Pin Connector: Offers easy integration with SparkFun Qwiic sensors and modules for rapid prototyping.
9. Onboard Buttons: Features BOOT and Reset buttons for easy setup and debugging.
10. Antenna Options: Available with either an external antenna module (N1) or a built-in antenna (N4) for better signal reception.

Package Includes:

1 x LILYGO T7-C6 Development Board

1 x connector wire

2 x Header connector
