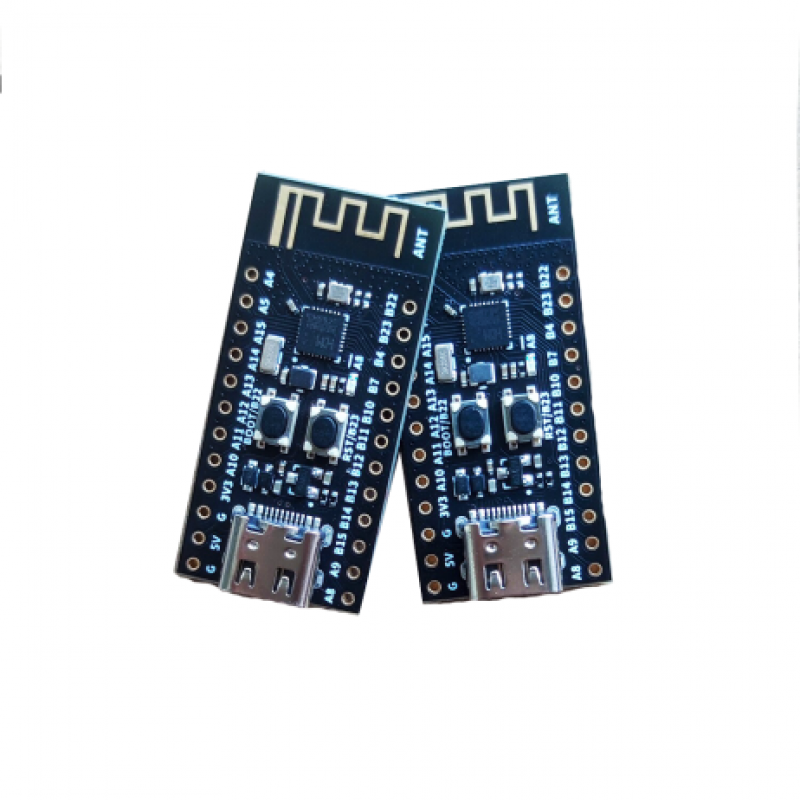

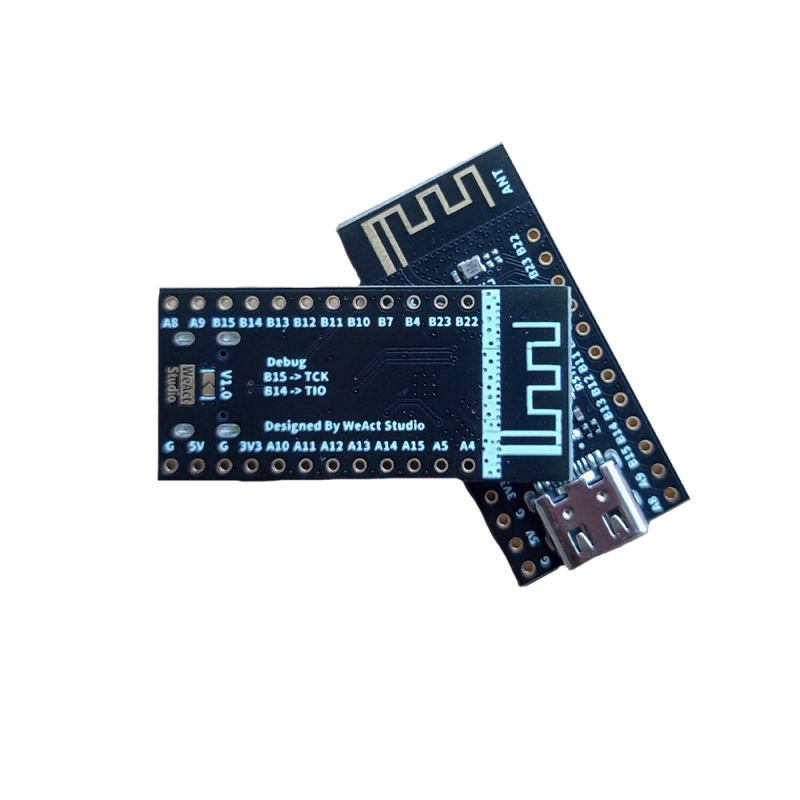

WeAct Studio CH582F motherboard WCH BLE 4.2 5.0 RISC-V

The CH582F Bluetooth Control Core Board is a versatile microcontroller board designed for Bluetooth-enabled projects. It features two variants, and CH582F, each offering different specifications to suit various application requirements. With a focus on performance, connectivity, and ease of use, this board serves as an ideal platform for developing Bluetooth-controlled devices.

Features:

1. CH582F: Equipped with a RISC-V4A CPU operating at speeds up to 60MHz.
2. Both variants offer ample memory resources with 20KB RAM and 448KB ROM (CH582F).
3. supports Bluetooth 4.2, while CH582F offers Bluetooth 5.0 compatibility, enabling seamless wireless communication with other devices.
4. Each board features multiple interfaces for connecting peripherals, including timers (4), PWM channels (10), UART ports (4), SPI interfaces (1), and ADC channels (8, 1 channel).
   CH582F additionally provides an I2C interface for expanded connectivity options.
5. CH582F offering 2 USB Device/Host ports, facilitating flexible data transfer and device connectivity.

Package Includes:

1 x WeAct Studio CH582F motherboard WCH BLE 4.2 5.0 RISC-V
