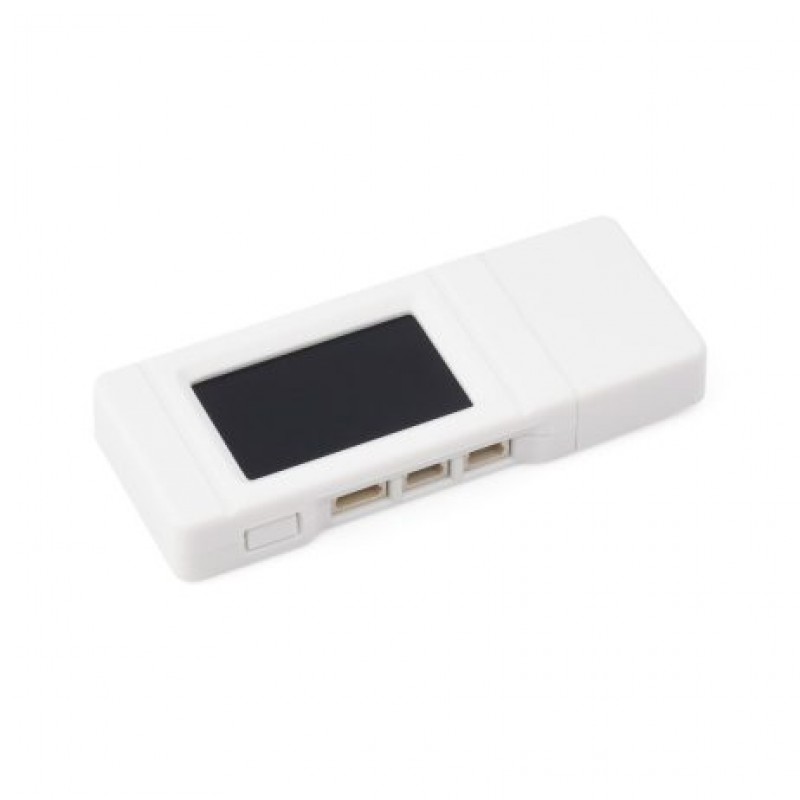

Waveshare RP2350-GEEK Development Board, Based On RP2350 Microcontroller
- Product Code: EPI27739
- Availability: 1
-
Rs.1106.00
- (Excluding 18% GST)
OR
Waveshare RP2350-GEEK Development Board development board designed by Waveshare, onboard USB Type-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.
Features:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Onboard 3PIN SWD port for connecting the debugged target board
- Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers
- Works with OpenOCD and other tools supporting CMSIS-DAP
- Adopts the Raspberry Pi 3PIN Debug Connector Specification
- Onboard 3PIN USB to UART bridge
- Onboard 4PIN I2C port for the testing target board
- Onboard 1.14inch 240135 pixels 65K color IPS LCD display
- Equipped with plastic case and cables
- Open-source firmware, more convenient to upgrade
Package Includes:
1 x Waveshare RP2350-GEEK Development Board, Based On RP2350 Microcontroller
