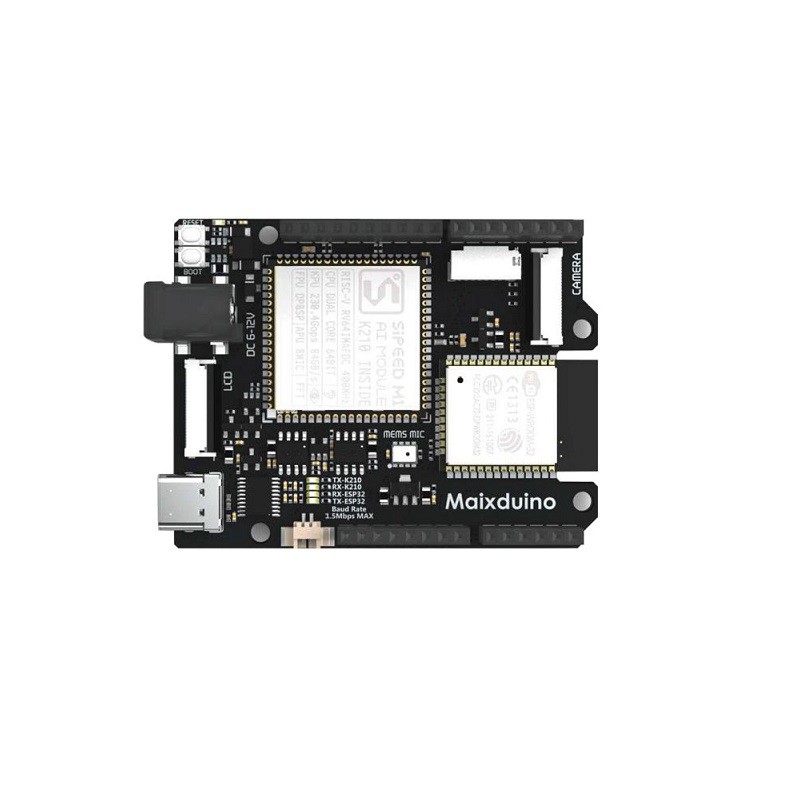

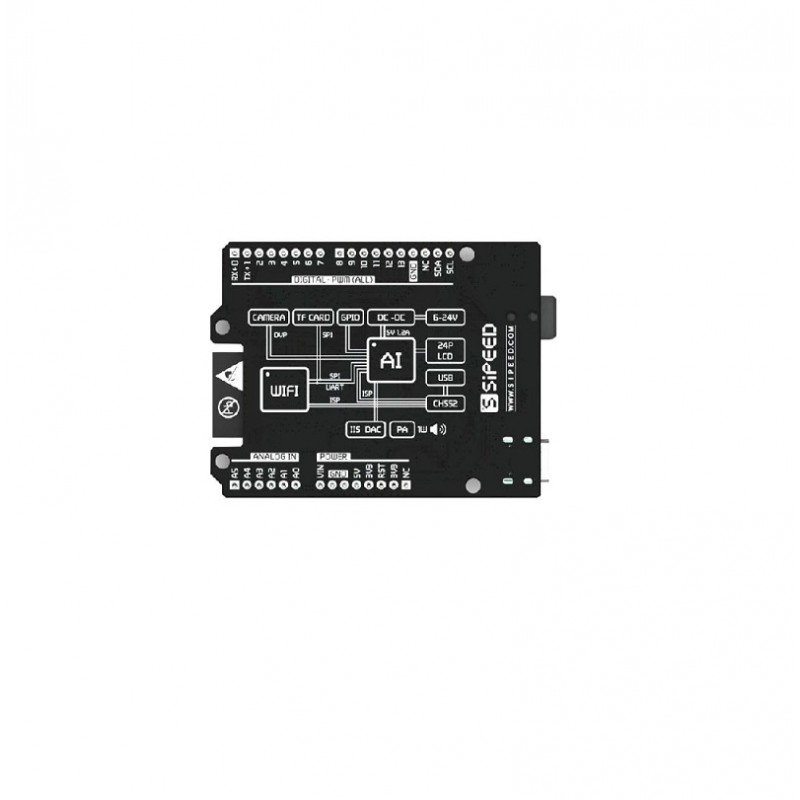

Sipeed Maixduino for RISC-V AI + IoT

Based on MAIX Module, the Maixduino is a RISC-V 64 development board for AI + IoT applications. Different with other Sipeed MAIX dev. boards, Maixduino was designed in an Arduino Uno form factor, with the ESP32 module on board together with the MAIX AI module.

To explore more tools you can refer link

Applications:

1. Smart Home applications like robot cleaners, smart speakers, electronic door locks, household monitoring, etc.
2. Medical Industry applications like Auxiliary diagnosis and treatment, medical image recognition, emergency alarm, etc.
3. Smart Industry applications like industrial machinery, intelligent sorting, monitoring of electrical equipment, etc.
4. Education applications like educational robots, intelligent interactive platforms, educational efficiency inspection, etc.
5. Agriculture applications like agricultural monitoring, pest and disease monitoring, automated control, etc.

Features:

1. CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor
2. QVGA@60FPS/VGA@30FPS image identification
3. Onboard ESP32 module support 2.4G 802.11. b/g/n and Bluetooth 4.2
4. Arduino Uno form factor, Arduino compatible interface
5. Onboard omnidirectional I2S digital output MEMS Microphone
6. 24P 0.5mm FPC connector for DVP Camera
7. 8bit MCU LCD 24P 0.5mm FPC connector
8. Support self-elastic micro SD card holder
9. Reset and boot button; 3W DAC+PA Audio output
10. Just connect the USB Type-C cable to complete the download
11. Machine vision based on convolutional neural network
12. High performance microphone array processor for machine hearing
13. Support MaixPy IDE,Arduino IDE,OpenMV IDE, and PlatformIO IDE
14. Support Tiny-Yolo, Mobilenet and TensorFlow Lite for deep learning

Package Includes:

1 x Maixduino dev. board

1 x OV2640 camera module
