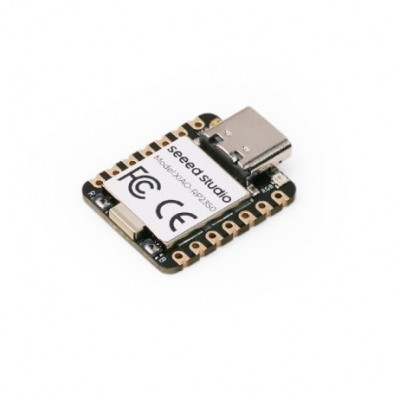

SeeedStudio XIAO RP2350 Raspberry Pi RP2350

The SeeedStudio XIAO RP2040 is a tiny, high-performance microcontroller development board based on the Raspberry Pi RP2040 chip. Designed for makers and developers, it features a dual-core Arm Cortex-M0+ processor, 2MB of onboard flash storage, and 19 multifunction GPIO pins, offering versatility for a wide range of applications. Preloaded with MicroPython support, it simplifies programming for beginners and professionals alike.

With its small form factor (21mm x 17.5mm), onboard RGB LED for status indication, and USB-C connectivity, the XIAO RP2040 is ideal for wearable devices, IoT projects, robotics, and compact embedded systems. Its low power consumption and robust capabilities make it a go-to choice for innovative, space-constrained designs.

Features:

1. Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring dual-core, dual-architecture capability, allowing developers to switch between the dual industry-standard Arm Cortex-M33 cores @ 150MHz with FPU, and a pair of open-hardware Hazard3 RISCV cores
2. Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security.
3. Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping.
4. Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, IC, UART, SPI, PWM).
5. Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications.
6. Efficient Power Design: Ultra-low power consumption of just 27A in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS).
7. Compact Thumb-Sized Design: Measuring 21 x 17.8mm, adopting Seeed Studios classic XIAO form factor, ideal for space-conscious applications.
8. Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.

Application:

1. Smart Control
2. Human Interface Devices (HID, such as mouse, DIY Mechanical Keyboard, joystick, console)
3. Education
4. Robotics
5. Wearables

Package Includes:

1 x Seeed Studio XIAO RP2350

2 x 7 Pin Header
