M5 Stack Goplus2 DC Motor and Servo Driver Module (STM32F0)

GoPlus2 is a stackable multi-functional motor and servo control module. The master control adopts STM32F030C8T6. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. Three PORT-B interfaces(Analog Input, Digital Output, Digital Input) can be expanded.

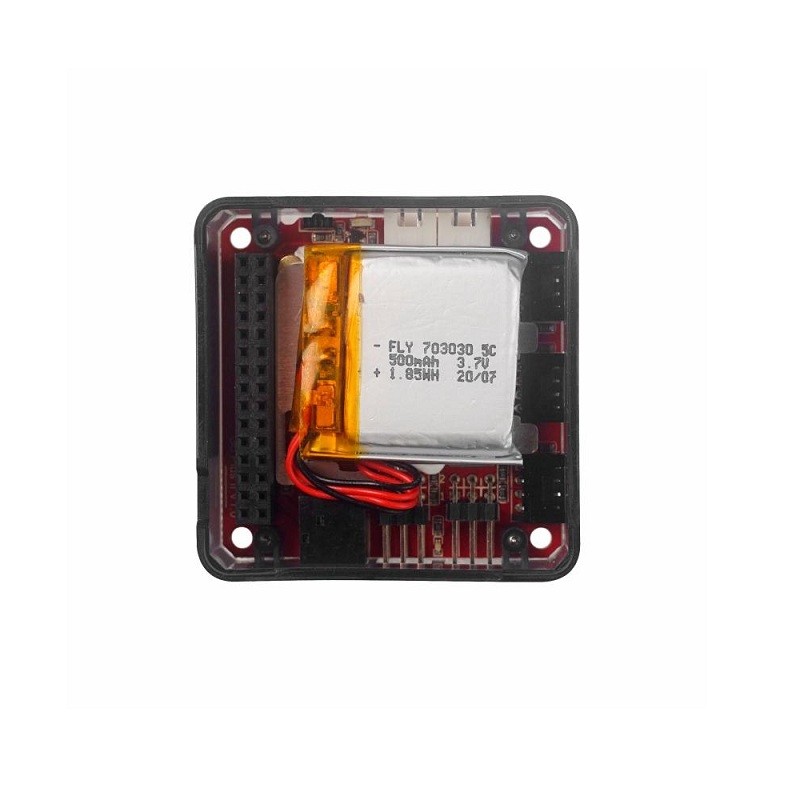

M5 Go Plus 2 comes with a built-in 500mAh battery and support infrared (IR) transmission and reception. In order to meet the requirements of the multi-channel interface power supply at the same time, a DC power interface is provided for the external power supply, the battery can be charged through the M5Core with USB-C.

Application:

1. Actuator/motor driver
2. Acquisition and control of multiple input and output signals
3. Infrared controller
4. DIY Toy base

Features:

1. Dual DC motor interface
2. Four Servo interface
3. IR transmit & receive
4. Three expand PORT B
5. Based On STM32F030C8T6
6. Built-in 500mAh battery

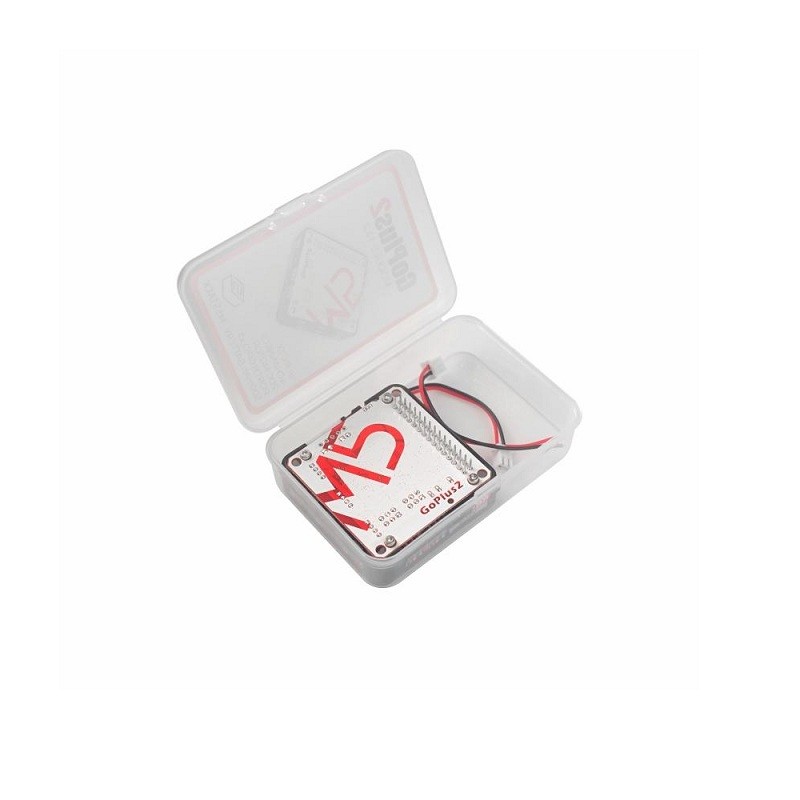

Package Includes:

1x GoPlus2 Module

2x DC Motor Cable
