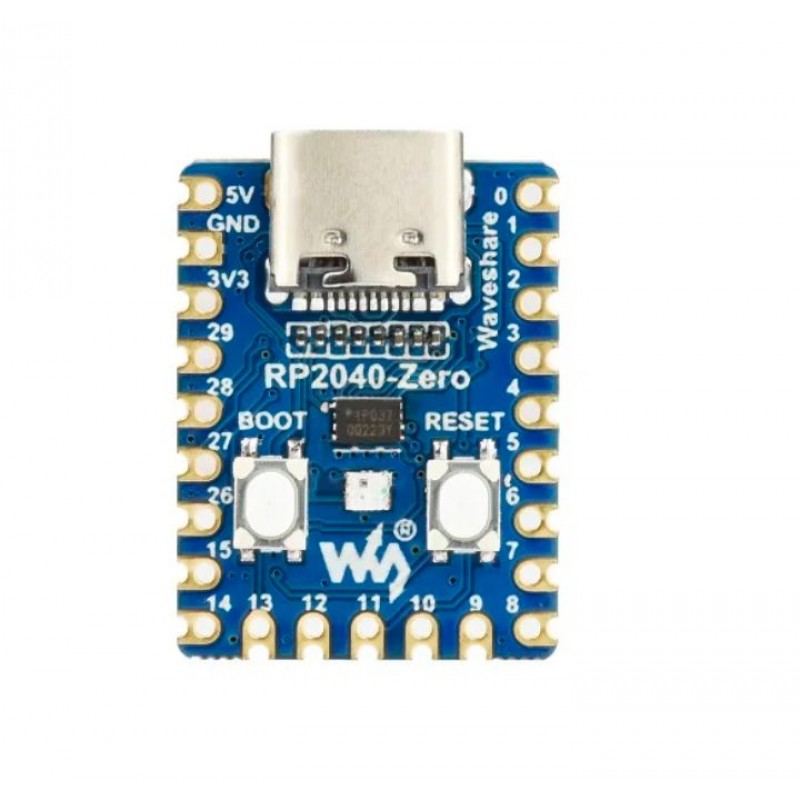

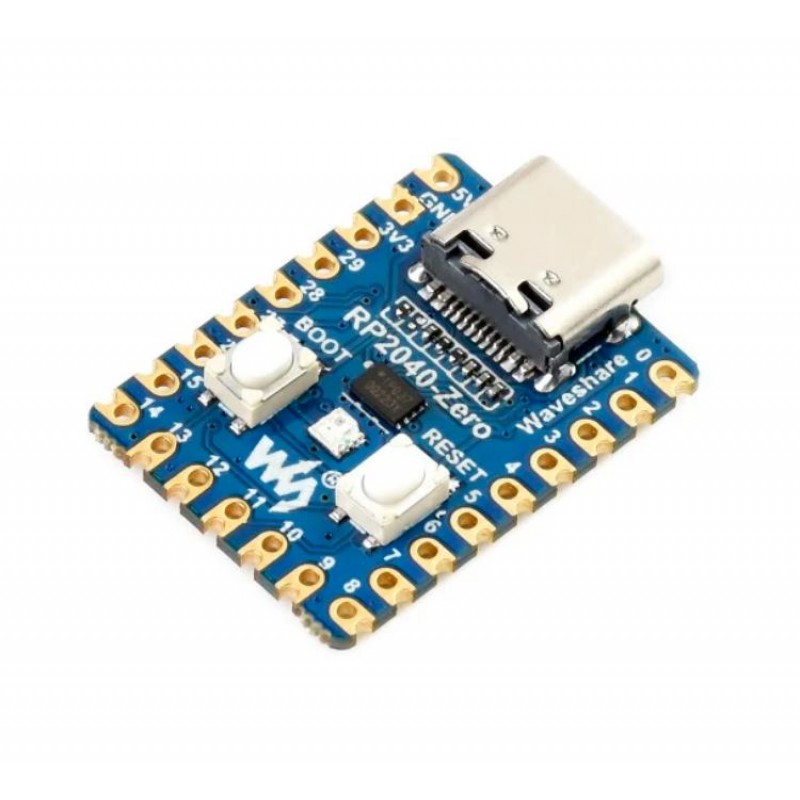

Waveshare RP2040-Zero Without Header

Waveshare RP2040-Zero Without Header

RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

What’s On Board:

• USB Type-C connector
• W25Q16JVUXIQ: 2MB NOR-Flash
• BOOT button: press it when resetting to enter download mode
• RESET button
• WS2812: cool RGB LED
• ME621: low dropout LDO, max current 800MA
• RP2040: dual-core processor, up to 133MHz operating frequency
• RP2040 pins: 10x solder points, 9 of which are for GPIO

Features:-

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• USB-C connector, keeps it up to date, easier to use
• The castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications:-

• Operating voltage : 3.3V
• Processor : Raspberry Pi official RP2040 mini
• Regulator : ME6217 (LDO, 800mA)
• USB : Type-C
• Memory : 264KB of SRAM 2MB of Flash memory

Package Includes:-

1 x Waveshare RP2040-Zero Without Header
