Momentary Tactile Push Button Module DC 5V Switch
- Product Code: EPI13024
- Availability: Out Of Stock
-
Rs.29.00
- (Excluding 18% GST)
OR
This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed.
The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 k.

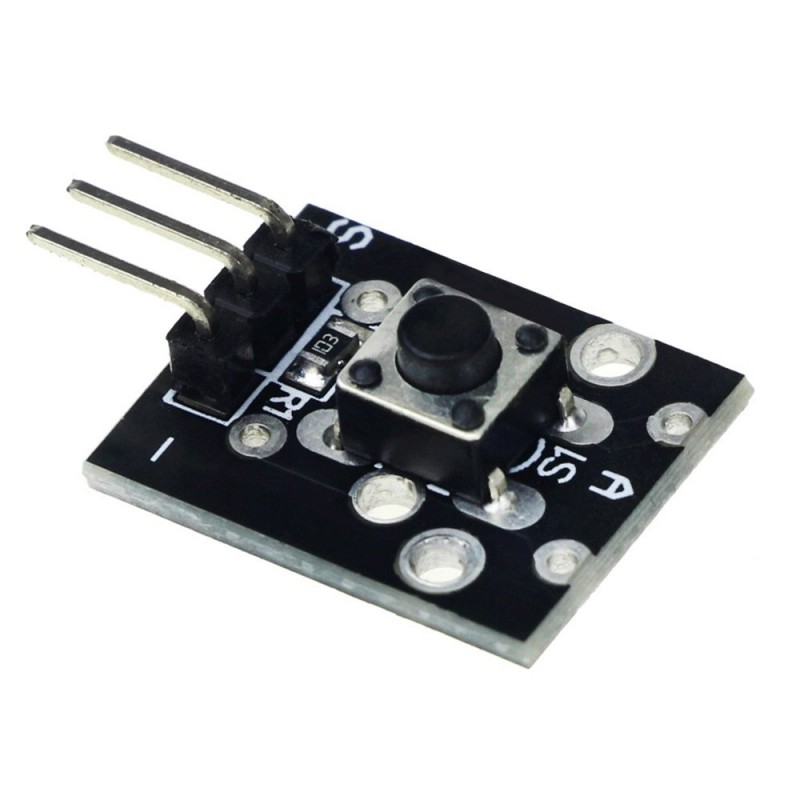

The module is designed for two contacts: when pressed, they are closed and open when released. There are 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module and + 5V is connected to the power supply.
Package Includes:
1 x Momentary Tactile Push Button Module DC 5V 12V Switch
Specifications:
| Operating Voltage (VDC) | 5 |
| Contact Resistance | 50 MΩ |
| Operating Temperature Range(°C) | -25 to 105 |
| Mech. & Electrical Lifecycle | 100,000 |
| PCB thickness | 1.5 mm |
| Length (mm) | 20 |
| Width (mm) | 16 |
| Height (mm) | 7 |
| Weight (gm) | 1 (approx) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 56.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
