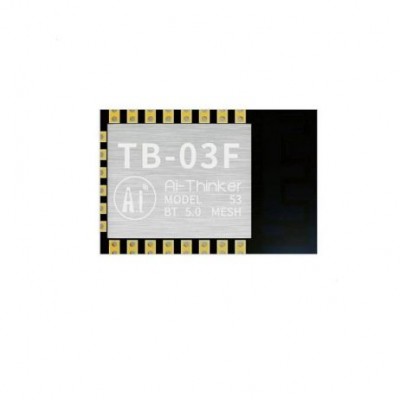

Ai Thinker TB-03F Bluetooth module

TB-03F intelligent lighting module is a Bluetooth module designed based on the TLSR8253 chip and conforming to BT 5.0 low-power Tmall Genie Mesh. This module supports the direct control of Tmall Genie and has the Bluetooth mesh networking function. The devices through Star network communication, using Bluetooth broadcast for communication, can ensure timely response in the case of multiple devices. This module is applied to intelligent light control, which can meet the requirements of low power consumption, low latency and short-range wireless data communication.

Features:

1. It can be directly controlled by Tmall Elf without a gateway
2. SMD-22 package
3. 6 PWM outputs
4. With an on-board antenna, no need to design an antenna
5. Brightness (duty cycle) adjustment range 5% -100%
6. Factory default 50% duty cycle for cool and warm colors
7. PWM output frequency 1KHz
8. Support multiple sleep modes, deep sleep current as low as 0.4uA
9. With a wall switch to switch the color temperature function
10. Support secondary development

Package Includes:

1 x Ai Thinker TB-03F Bluetooth module
