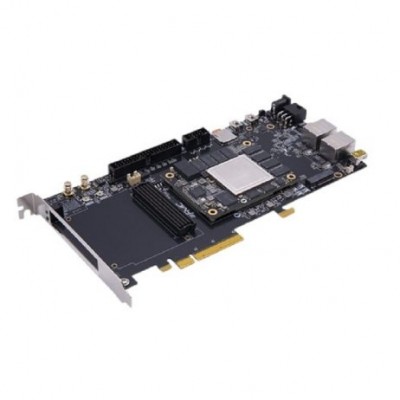

Alinx Z7-P Dev Board & Kit with AMD Zynq US+ MPSoC XCZU7EV

The Alinx Z7-P Dev Board equipped with the AMD Zynq UltraScale+ MPSoC-series device, delivers standout performance with DDR4 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, M.2, DP, suitable for Artificial Intelligence, Computing, Automotive, Industrial, Video, and Communication, etc.

The Alinx Z7-P Dev Board equipped with the AMD/Xilinx Zynq UltraScale+ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, DP, M.2. Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe), high-speed storage (M.2) and video applications (DP).

The Alinx Z7-P Dev Board includes an FMC HPC connector (59 LVDS I/Os, 8 GTH), PCIe Gen3 8, M.2 slot, dual UARTs (USB to UART), DP interface, dual Gigabit Ethernet, and a 40-pin expansion port (34 I/Os) for versatile connectivity. Powered by a 12V supply, it features LEDs, reset keys, and a compact 222 x 106.7 mm form factor.

Features:

1. Processor: AMD/Xilinx Zynq UltraScale+ MPSoC-series
2. Memory: DDR4 SDRAM for high-speed performance
3. Storage: eMMC Flash and QSPI Flash
4. Interfaces: DisplayPort (DP) and PCIe support
5. Applications: Designed for AI, computing, automotive, industrial, video, and communication systems.

Applications :

1. Artificial Intelligence
2. Automotive
3. AV Broadcasting
4. Deep learning
5. Digital Signal Processing
6. 5G Wireless and Wire Communication
7. Data Centers
8. Drive / Motion Control
9. Industrial Internet of Thing
10. Cloud Computing Security
11. Machine Vision
12. Medical Endoscop
13. Video and Image Processing

Package Includes:

1 x System-on-Module

1 x Base Board

1 x Heatsink Kit (preinstalled)

1 x USB Downloader Cable / set

1 x 12V Power Adapter 1 PCle Fence

1 x Mini USB Cable

1 x Card Reader

1 x TF Card
