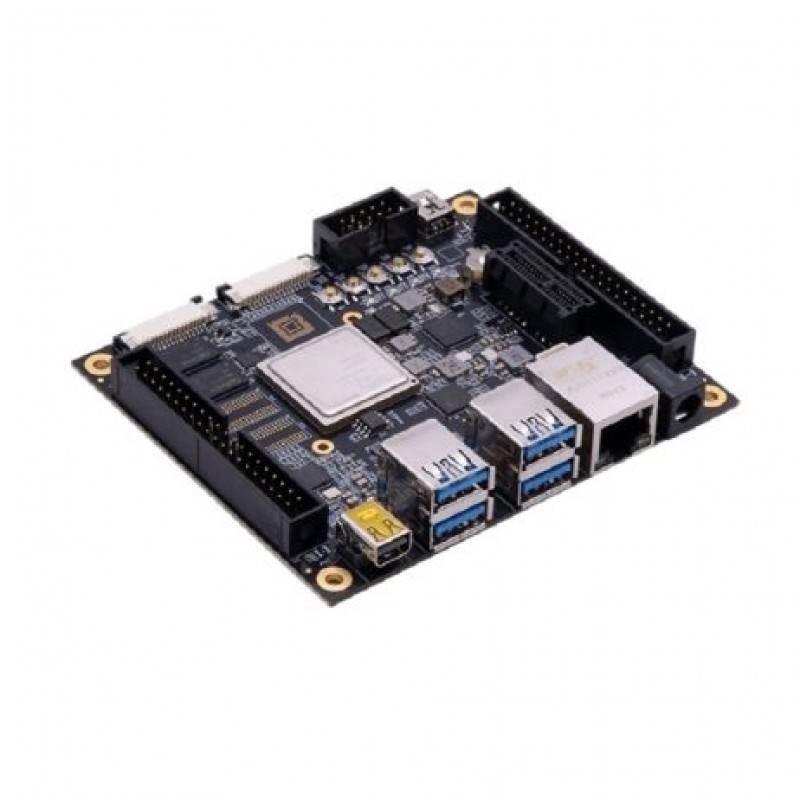

Alinx AXU2CGAKit Dev Board & Kit with AMD Zynq US+ MPSoC ZU2CG

The Alinx AXU2CGAKit Dev Board equipped with the AMD Zynq UltraScale+ MPSoC-series device, delivers standout performance with DDR4 SDRAM, eMMC Flash, QSPI Flash, DP, PCIe, suitable for artificial intelligence, computing, automotive, industrial, video, and communication, etc.

The Alinx AXU2CGAKit Dev Board equipped with the AMD/Xilinx Zynq UltraScale+ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, DP, PCIe. video applications (DP).

The board features a 1 x DP Interface on the PS and 2 x 2-lane MIPI interfaces on the PL for high-speed video and camera connectivity. It includes 2 x 40-pin expansion ports with 34 I/Os, enabling connection to various ALINX modules such as binocular cameras, TFT LCD screens, and high-speed AD modules. Additional connectivity options include a 1 x Micro SD, 1 x EEPROM (24LC04) on PS, and user inputs/indicators like 4 x LEDs and 5 x keys (1 reset and 4 PL). It operates with a 12V single supply and has a compact 100 x 85 mm form factor for versatile integration in embedded applications.

Features:

1. High-Performance Processing: ARM Cortex-A53 quad-core up to 1.3 GHz and ARM Cortex-R5 dual-core up to 533 MHz.
2. Advanced FPGA Fabric: 16nm FinFET+ technology for flexible and high-performance logic.
3. Large Memory Capacity: 2 GB DDR4 SDRAM on PS with 32 MB QSPI Flash and up to 8 GB eMMC Flash (AXU2CGB model).
4. Versatile Connectivity: Includes PCIe Gen2, Gigabit Ethernet, UART, and multiple USB ports (USB 3.0 and USB 2.0).
5. Ideal for High-Performance Applications: Suitable for industrial, AI, and embedded systems with versatile I/O options.

Applications :

1. AV Broadcasting
2. Industrial Internet of Thing
3. Digital Signal Processing
4. Drive / Motion Control
5. Machine Vision
6. Medical Endoscop
7. Video and Image Processing

Package Includes:

1 x Development Board

1 x Heatsink Kit (preinstalled)

1 x USB Downloader Cable / set

1 x Mini USB Cable

1 x 12V Power Adapter

1 x TF Card
