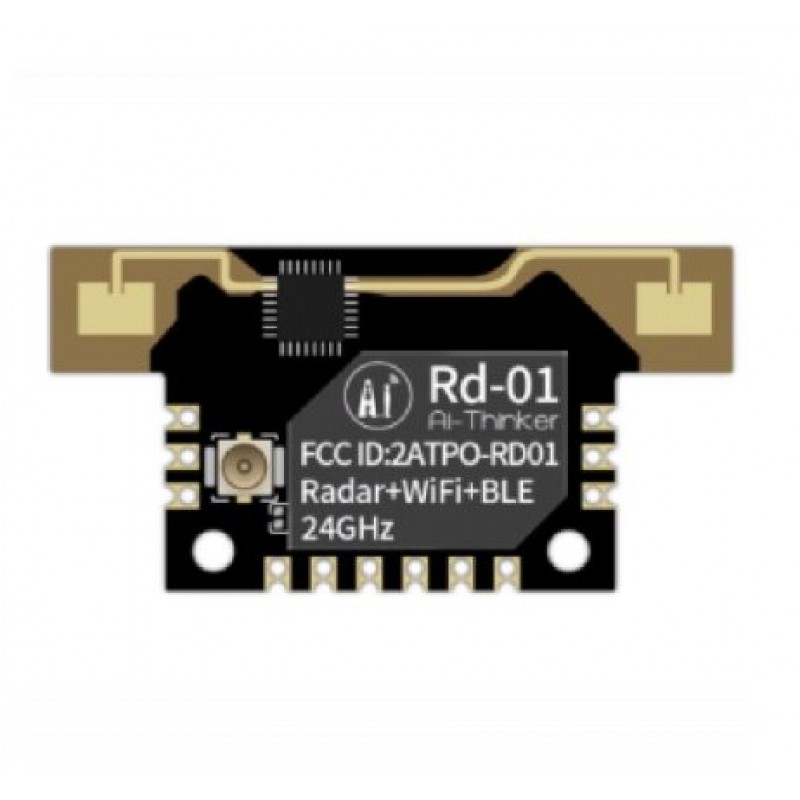

Ai-Thinker RD-01 24G Radar Human Body Induction Module/Radar + WiFi + BLE Module

Rd-01 is a radar module developed by Shenzhen Anxinke Technology Co., LTD. The module supports Wi-Fi & BLE. The radar part is equipped with the S3KM111L chip of Sidian Micro. S3KM111L is an integrated monolithic single-wave sensor SoC based on FMCW radar technology. Operates in 24GHzkband with up to 1 GHz modulation bandwidth per frequency. FMCW continuous wave is used to detect the target in the set space. Combined with radar signal processing and an accurate human body sensing algorithm, high-sensitivity human presence state sensing can be realized to recognize the human body in motion and static state.

Wi-Fi &BLE is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n and BLE 5.0. The BL602 chip has a built-in low-power 32-bit RISCCPU, 276KB of RAM, and a wealth of peripheral interfaces, including SPI, UART, I2C, PWM, ADC and GPIO. Rd-01module can sense whether there is a moving or twitching human body in the area, and transmit the detection result in real-time through Wi-Fi &BLE. Provide visual configuration tools, it can be easily configured with induction distance range, induction sensitivity of different sections, and unmanned delay time. It also supports Wi-Fi & BLE wireless configuration of radar parameters, greatly improving the efficiency of construction operation and maintenance, convenient and fast.

Features:

1. SMD-12 package, compatible with standard socket or pin interface
2. Radar support 24 GHz ISM frequency band
3. The radars max sensing range is up to 5 meters
4. It can realize the intelligent parameter adjustment of radar through Bluetooth, convenient
   and fast
5. Support roof, hang a wall to install a variety of ways
6. Wi-Fi security support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
7. Support 20 MHZ bandwidth, the highest rate of 72.2 Mbps
8. Supports IEEE 802.11 b/g/n agreement
9. Antenna: Radar: on-board antenna
   Wi-Fi &BLEIPEX

Package Includes:

1 x Ai Thinker RD-01
