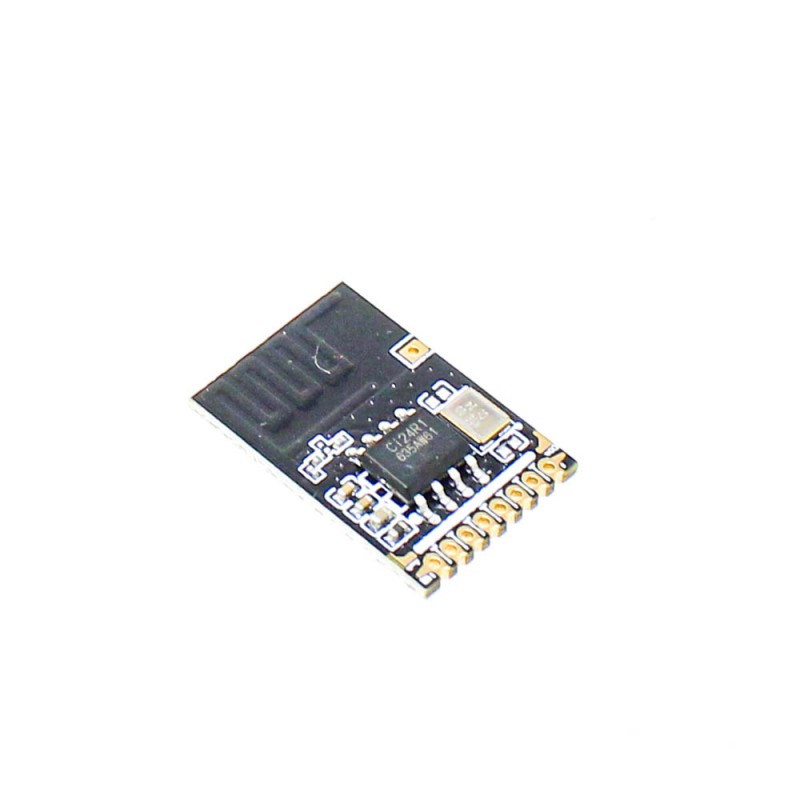

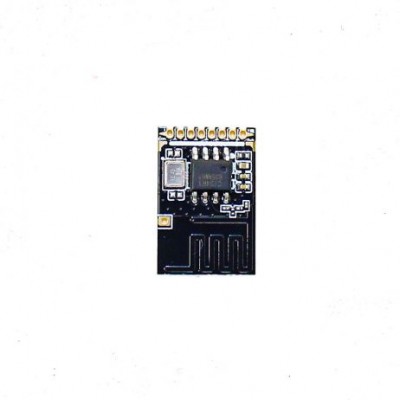

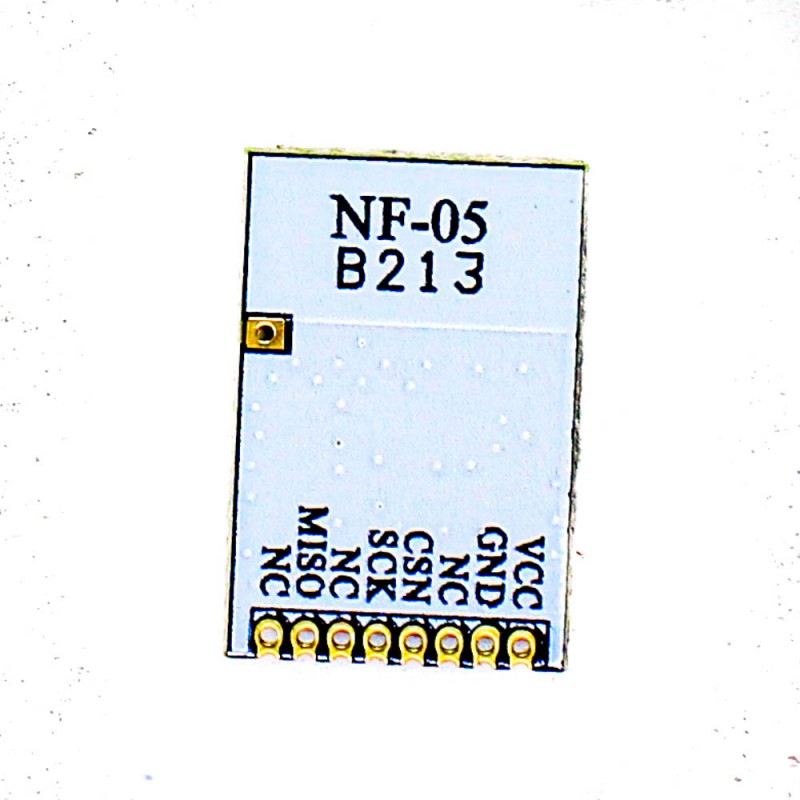

Ai-Thinker NF-05 module

Ai-Thinker NF-05 module developed by Shenzhen Ai-Thinker Technology Co., LTD. The core processor chip Ci24R1 is a high-performance 2.4ghz GFSK wireless transceiver chip, designed for wireless mice, keyboards, wireless remote control, motion sensing devices, smart power grids, smart homes, wireless audio, wireless data transmission, and other applications. NF-05 chips have industry-leading low-power performance and rf performance, supportingGFSK/FSK protocols.

The chip integrates high PSRR LDO and an intelligent ARQbasebandprotocol engine. The chip has a fast startup time of less than 160uS and ultra-low-power consumption of up to 2uA, which can meet the power requirements of various application scenarios. Few peripheral devices greatly reduce the application cost of the system. NF-05 module rate: 250Kbps, 1Mbps, 2Mbps. Support broadcast, and channel selection.

Features:

1. Fast start selectable recovery time<160uS
2. Low Power consumption
3. High internal integration PSRR LDO
4. Maximum 10MHz two-wire SPI interface
5. Internal integration of intelligent ARQ baseband protocol engine
6. The hardware for sending and receiving data is interrupted
7. Supports 1bit RSSI output
8. Few peripheral devices, reduce the system application cost
9. Packaged SMD-8

Packages Includes:

1 x Ai-Thinker NF-05 module
