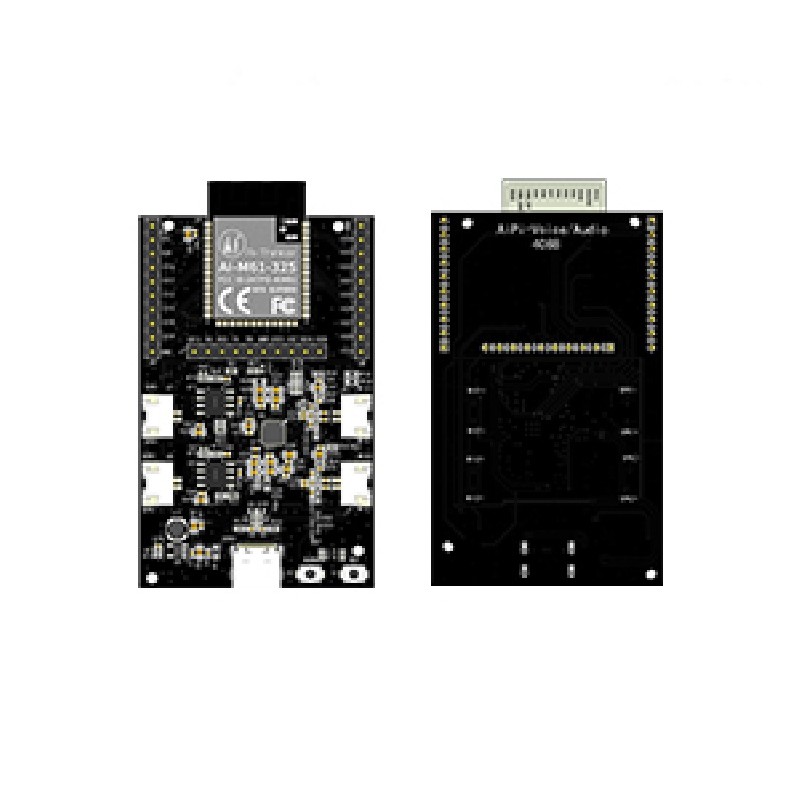

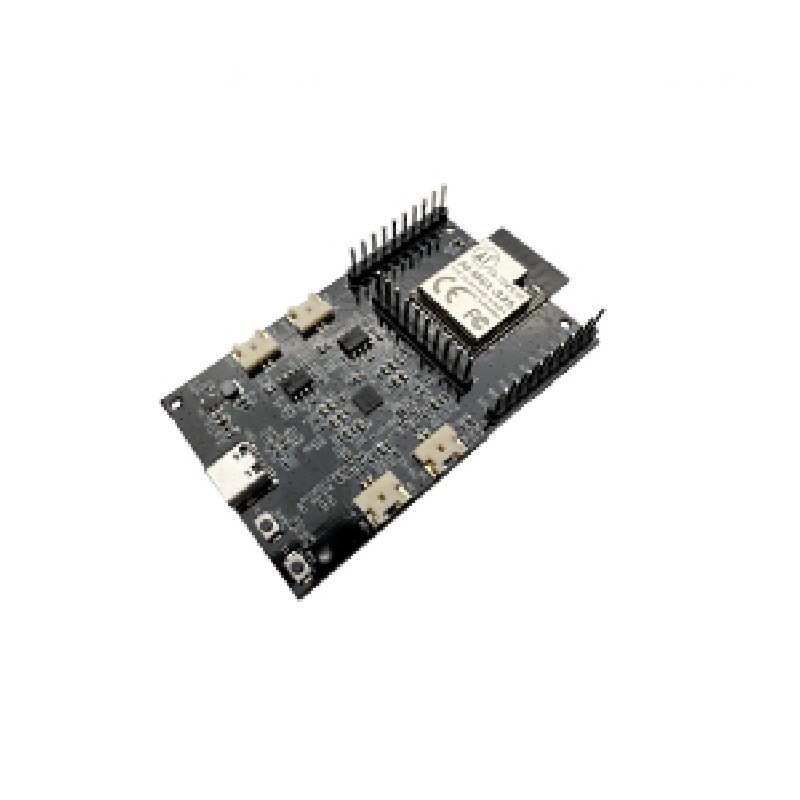

Ai Thinker AiPi-Audio

AiPi-Audio is an audio driver development board specially designed by the Ai-Thinker open-source team for Ai-M61-32S. It is equipped with a BL618 chip and has an external ES8388 audio codec. It can design solutions such as walkie-talkies or combine them with other voice platforms. It is an audio driver development board specially designed by the Anxinke team for Ai-M61-32S. It is equipped with a BL618 chip and an external ES8388 audio codec. It can design solutions such as walkie-talkies or combine them with other voice platforms to achieve voice recognition. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.

Features:

1. External ES8388 audio decoding chip
2. Support single and dual input and output
3. Support 8~48KHz two-channel audio
4. Supports 16~32-bit depth audio
5. Default two-way 2W 8ohm speakers
6. Default dual-channel -65 dBm (sensitivity) microphone

Package Includes:

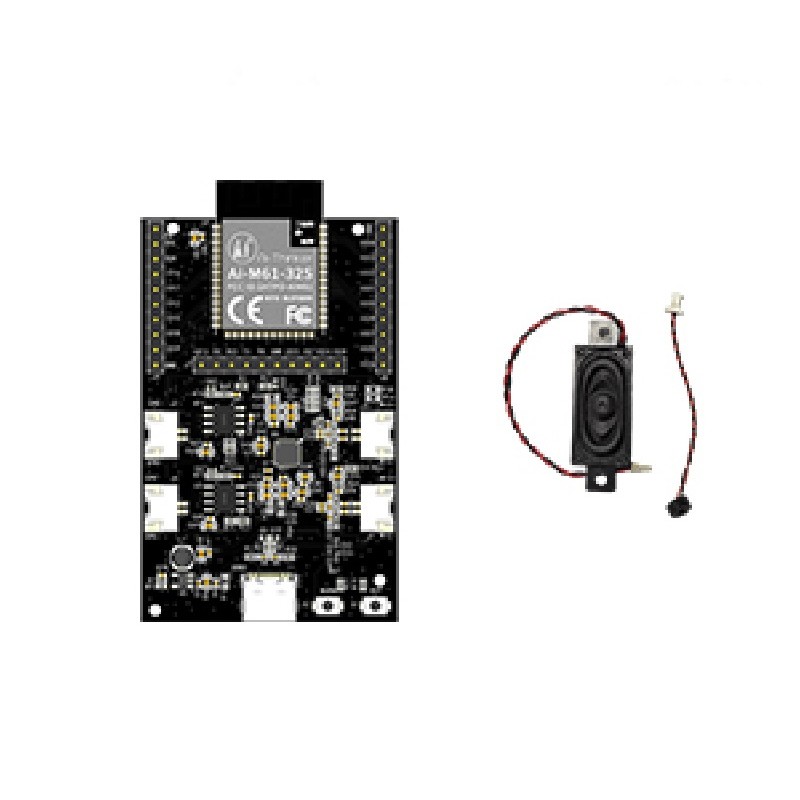

1 x Ai Thinker AiPi-Audio

2 x mic

2 x speaker
