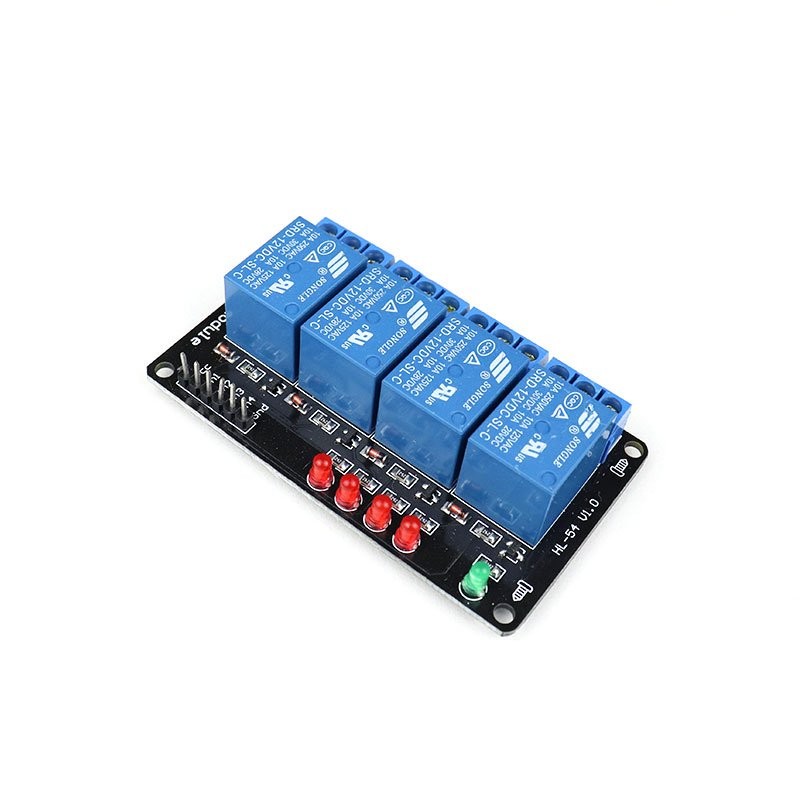

4 Channel 12V Relay Module
- Product Code: EPI1071
- Availability: 6
-
Rs.149.00
- (Excluding 18% GST)
OR
This is a 4-Channel Relay interface board that allows you to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
Features:
- 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
- Both controlled by 12V and 5V input Voltage.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
- Indication LEDs for Relay output status.
Package Includes:
1 x 4 Channel 12V Relay Module
Specifications :-
| Trigger Voltage (VDC) | 12 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% 85% |
| Storage condition () | 65 to 125 |
| Length (mm) | 74 |
| Width (mm) | 43 |
| Height (mm) | 17 |
| Weight (gm) | 49 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 241.9 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
