Seeed Studio XIAO ESP32S3 Sense L76K GNSS Module

  • Product Code: EPI25928
  • Availability: 2

0 reviews Write a review

  • Rs.1808.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

L76K GNSS Module for SeeedStudio XIAO is a Multi-GNSS (Global Navigation Satellite System) module compatible with all XIAO development boards, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. It also supports AGNSS function, built-in low-noise amplifier and sound surface filter, and provides a good positioning experience of fast, accurate, high-performance.

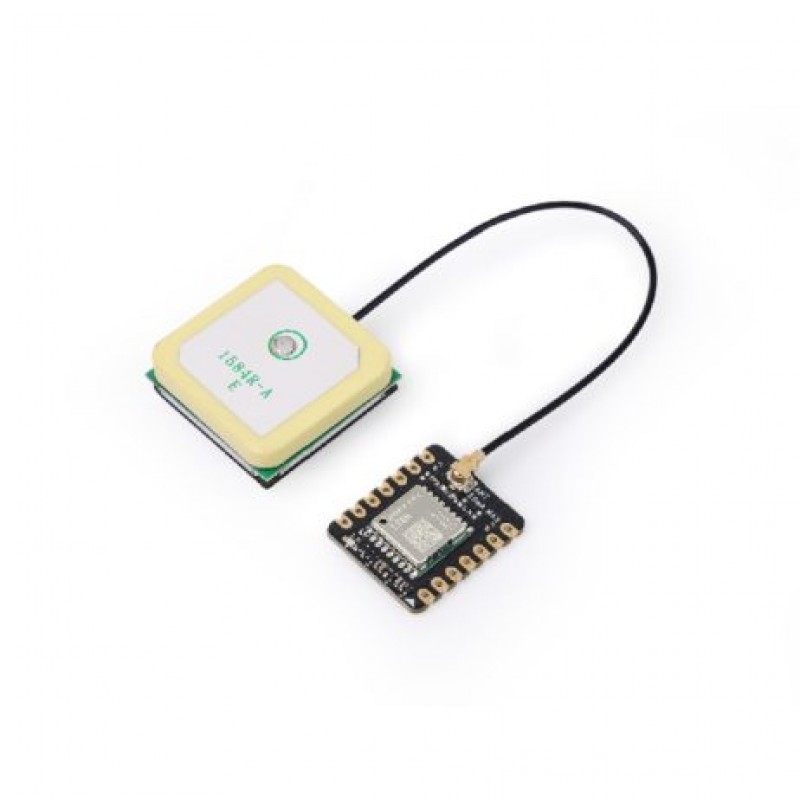

The module comes with a high-performance active GNSS antenna intended to cover GPS L1 C/A, BeiDou B1 and GLONASS L1 bands. The design also has a tiny bright green LED for indicating the 1PPS output on fix.

Applications:

  1. GPSnavigation
  2. GPSTracker
  3. SmartCity
  4. LogisticsandFreightManagement
ItemDetail
GNSS bandsGPS L1 C/A: 1575.42MHz
GLONASS L1: 1602MHz
BeiDou B1: 1561.098MHz
Channels32 tracking ch/72 acquisition ch
TTFF (Time To First Fix)Cold Starts: 30s(w/o AGNSS), 5.5s(w/ GNSS)
Hot Starts: 5.5s(w/o AGNSS), 2s(w/ AGNSS)
SensitivityAuto-aquisition: -148dBm
Tracking: -162dBm
Re-acquisition: -160dBm
AccuracyPosition: 2.0m CEP
Velocity: 0.1m/s
Acceleration: 0.1m/s
Timing: 30ns
UART InterfaceBaud Rate: 9600~115200bps(9600bps default)
Update Rate: 1Hz(default), 5Hz(Max.)
Protocol: NMEA 0183, CASIC proprietary protocol
AntennaType: Active Antenna
Operating Frequency: 15591606MHz
Coaxial Cable: RF1.13 Length=10cm
Cable Connector: U.FL Plug RA
Current consumption(w/ active antenna)Auto-aquisition: 41mA
Tracking: 41mA
Standby: 360uA
Dimension18mm x 21mm

Features

  1. Enhanced Reception:Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction
  2. High Precision:32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity
  3. Energy Efficiency: 41mA tracking/acquisition, 360A standby
  4. Multi-GNSS Systems: Powered by Quectel L76K, supporting GPS, BeiDou, GLONASS and QZSS
  5. Ceramic Antenna:Enhanced signal reception, superior to traditional antennas.

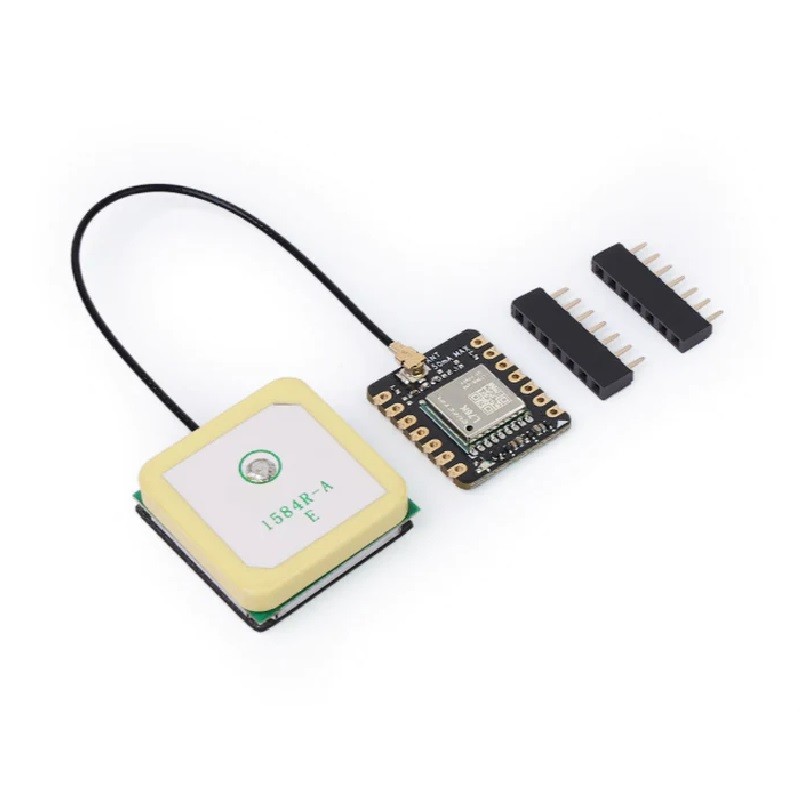

Package Includes:

1 x L76KGNSSModule

1 x ActiveAntennawithiPexconnector

2 x 7PinFemaleHeader2.54mm
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
