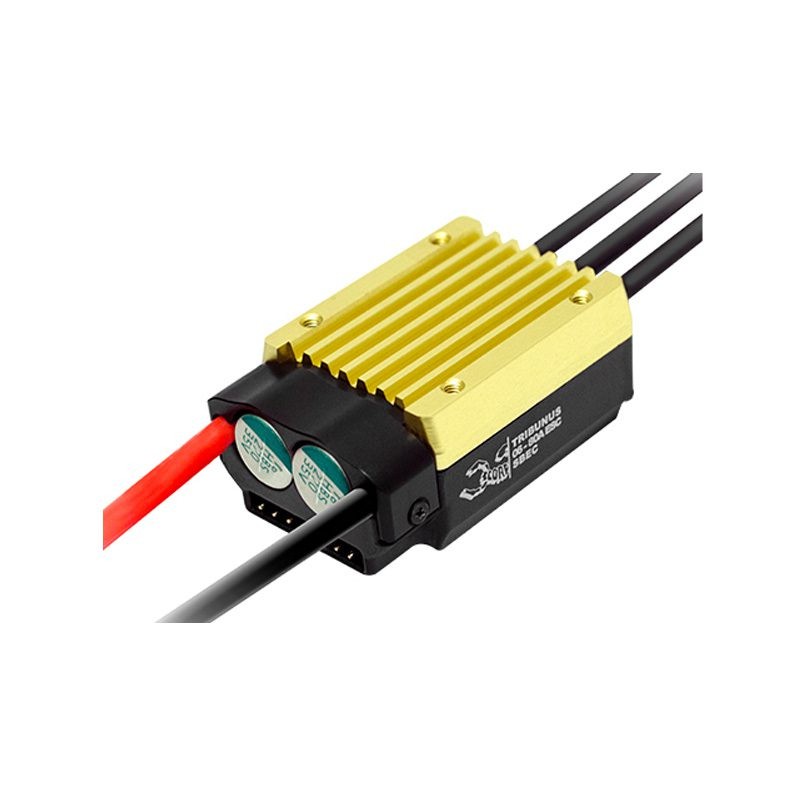

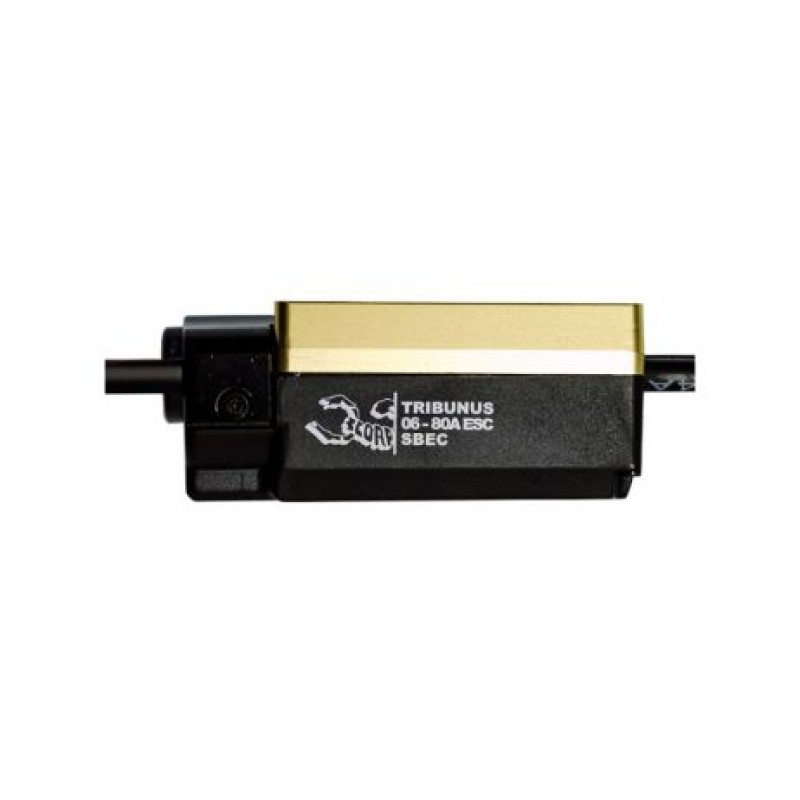

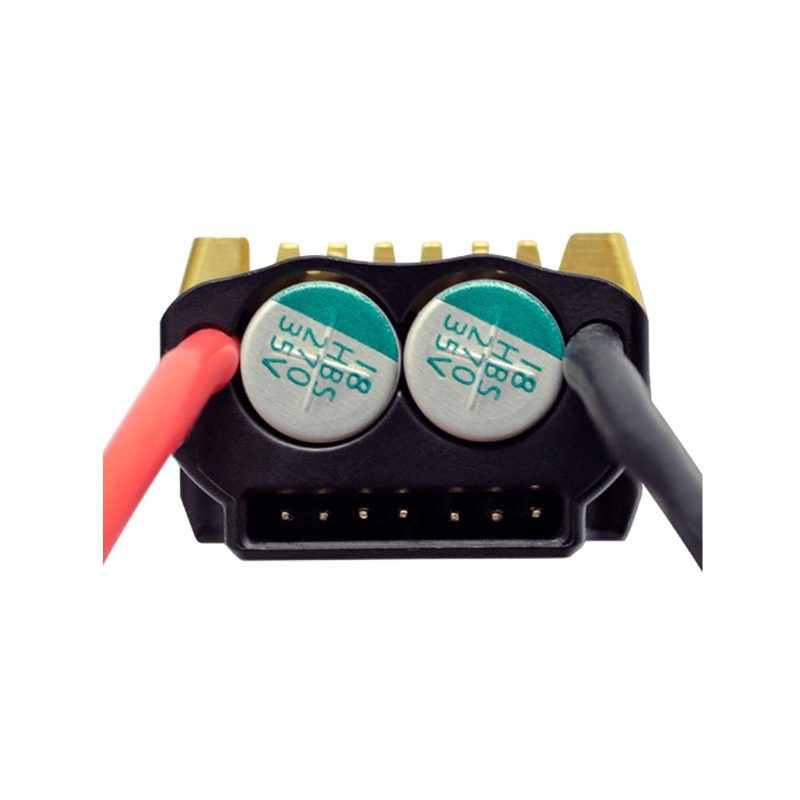

Scorpion Tribunus II I 06-80A ESC Drone Speed Controller

The Scorpion Tribunus II I 06-80A ESC is a compact and powerful electronic speed controller designed for both airplane and helicopter modes, offering exceptional performance for RC enthusiasts. With a continuous current capacity of 80A and peak current handling of 120A, it supports a wide voltage range of 11-26.1V, making it compatible with HV LiPo batteries.

The ESCs setup can be easily configured through Mikado V control radios, and it supports PC and Android connectivity for firmware updates and configuration (with the appropriate cables). Enhanced with a supercharged BEC, the Tribunus II I 06-80A ESC is now capable of supporting servos with high current peaks and back voltage, expanding its versatility for advanced RC setups. With a compact size of 47.1 x 31 x 20 mm and weighing just 56g, it provides a perfect balance of power and portability for serious RC pilots.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Dual Mode Operation: Supports Airplane and Helicopter modes for versatile use.
2. Governor Modes: Includes stored and unstored governor options, plus external governor compatibility.
3. Data Output Port: Enables external data logging with Mikado V control/Vbar, Jeti Telemetry, and JLog 3.
4. Mikado V Control Integration: Simplified ESC setup via Mikado V control radio.
5. Connectivity Options: Supports PC and Android (OTG cable required) with optional V Link II and Diode adapter (included).
6. HV LiPo Battery Compatibility: Works with 6S LiPo batteries, voltage range 11-26.1V.
7. Adjustable BEC Output: BEC voltage adjustable from 5.1V to 7.1V, with 8A continuous and 12A peak.
8. Enhanced BEC for High Current Servos: Optimized to handle servos with high amp peaks and back voltage.
9. Compact Size and Lightweight: Measures 47.1 x 31 x 20 mm and weighs 56g (without connectors).
10. Advanced Drive Frequency: Adjustable drive frequency from 8kHz to 32kHz for smooth motor control.

Packaged Includes:

1 x Scorpion Tribunus II I 06-80A

1 x connector cable
