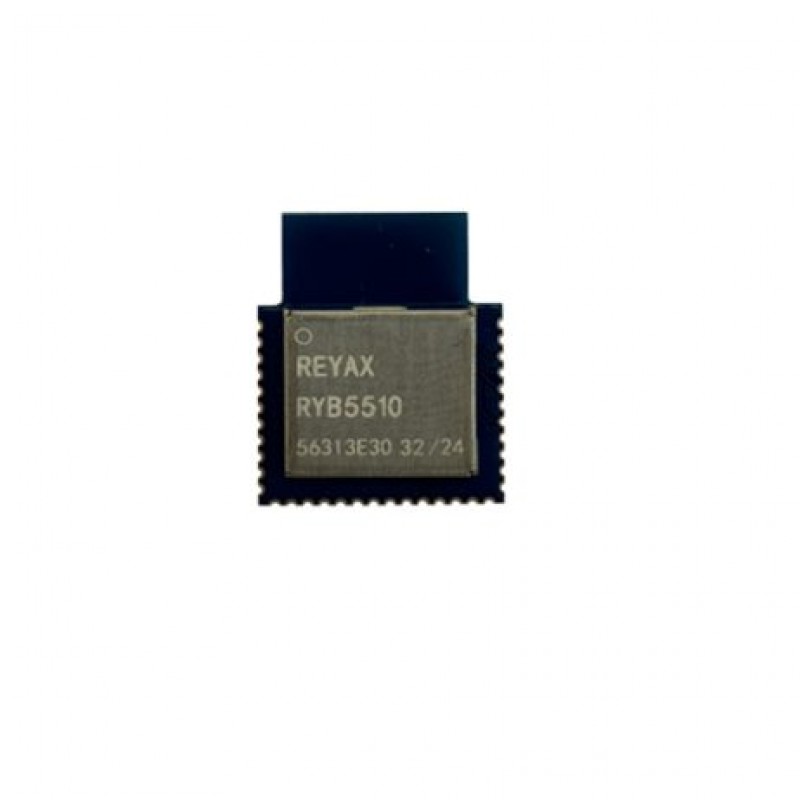

Reyax RYB5510 2.4GHz Bluetooth 5.4 Thread, Matter, Zigbee and Proprietary Module with Integrated Antenna

The Reyax RYB5510 2.4GHz Bluetooth with Integrated Antenna is a versatile and high-performance solution, featuring the STM32WBA55UGI6 ARM Cortex-M33 CPU running up to 100 MHz. This module supports Bluetooth Low Energy 5.4, IEEE 802.15.4 PHY and MAC, and is compatible with Thread, Matter, and Zigbee protocols, making it ideal for modern IoT applications. With a metal cover for EMI shielding, it ensures stable communication even in interference-prone environments. The module is equipped with a PCB integrated antenna, offering compact and reliable connectivity for various use cases, including smart home and industrial automation.

Features :

1. VDD Power Supply: 1.71V to 3.6V
2. RF Output Power: 10dBm
3. ARM Cortex-M33 CPU: 1M Flash, up to 100 MHz, with TrustZone, MPU, DSP, FPU.
4. RF Transceiver: Bluetooth 5.4, IEEE 802.15.4, Thread, Matter, Zigbee support.
5. EMI Shielding: Metal cover for interference protection.
6. Integrated PCB Antenna :Compact and efficient design.

Package Includes :

1 x Reyax RYB5510 2.4GHz Bluetooth 5.4 Thread, Matter, Zigbee and Proprietary module
