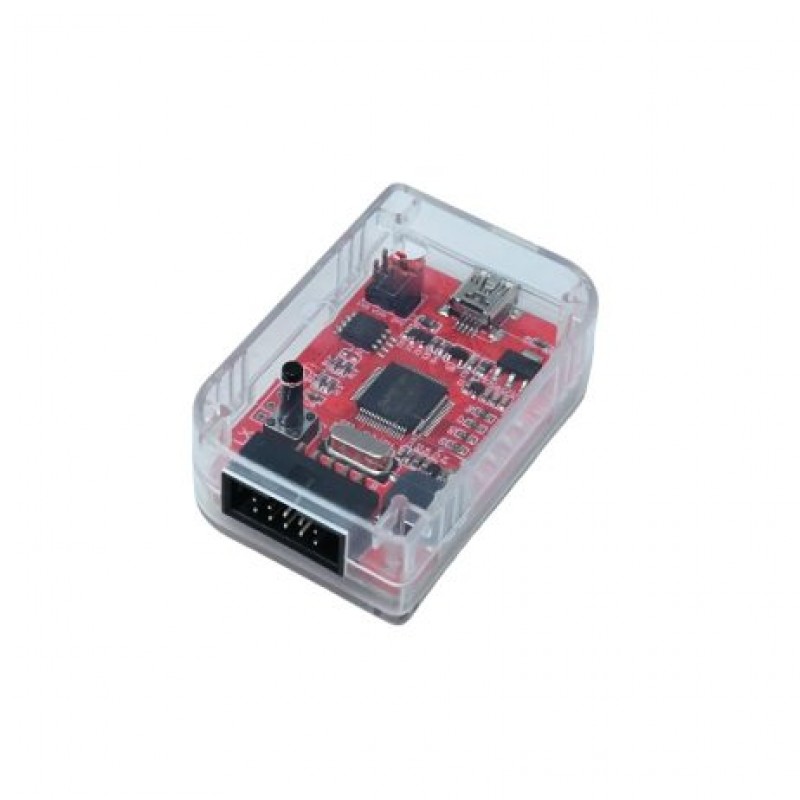

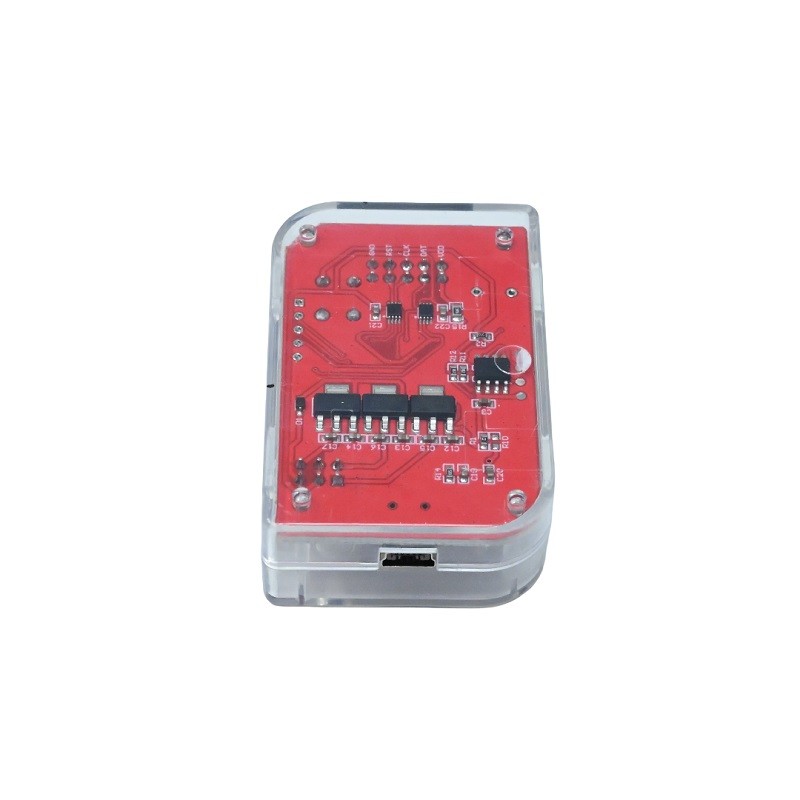

Nu-Link Red Standard Programmer and Debugger for Nuvoton ARM/51

The NU-Link Red is a reliable standard programmer and debugger designed for the Nuvoton NuMicro family of MCUs including ARM Cortex and 1T-8051 series. Via a USB connection it bridges to the target boards SWD interface, enabling full in-circuit programming (ICP), online debugging, and offline firmware deployment.

With wide I/O voltage support, it suits a variety of target voltage systems. The device integrates status LEDs for feedback and is compatible with major development environments such as Keil MDK, IAR EWARM and CooCox CoIDE. Ideal for both development and production programming, the NU-Link Red helps you debug code, set breakpoints, inspect registers, and load firmware efficiently.

Features:

1. USB SWD bridge connection for easy PC to target board linking.
2. In-Circuit Programming (ICP) support for NuMicro devices.
3. Online programming (while connected) and offline programming (stand-alone) modes.
4. Multi-voltage SWD I/O support (1.8 V, 2.5 V, 3.3 V, 5.0 V) for wide target compatibility.
5. Status LEDs for SWD power output and I/O voltage, aiding quick diagnostics.
6. Compatible with third-party development tools such as Keil, IAR, and CooCox.
7. Supports the NuMicro family including M0/M23/M4 cores and 1T-8051 series devices.
8. Suitable for both development debugging and production-level firmware programming.

Package Includes:

1 x Nu-Link Red Standard Programmer and Debugger

5 x Jumper Wire

1 x Flat Ribbon Cable

1 x USB Cable
