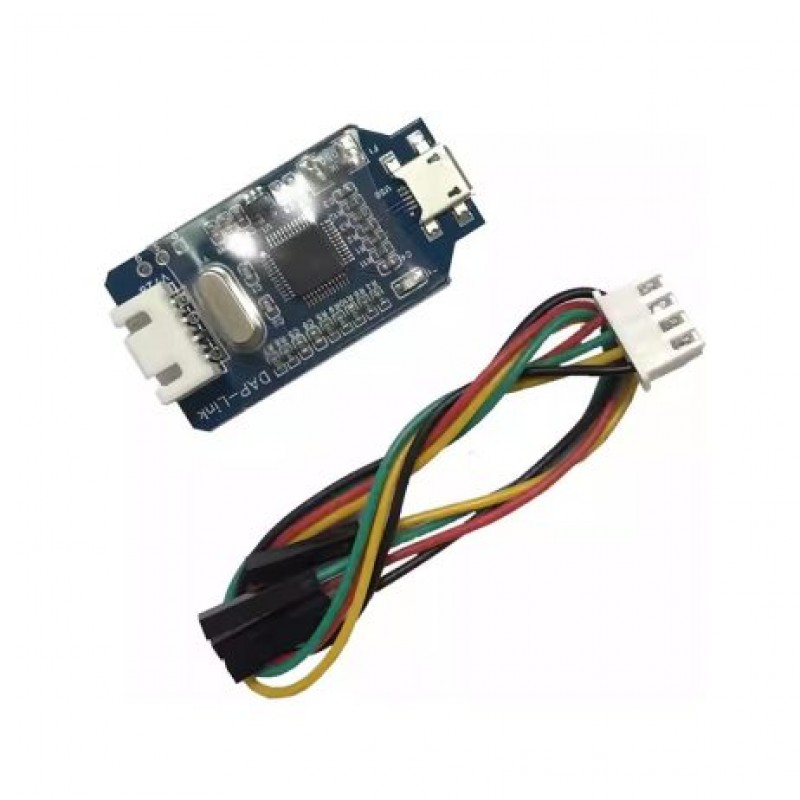

J-Link Ob Downloader Daplink Micro Usb Version

The J-Link Ob Downloader Daplink Micro Usb Version is a compact, high-efficiency debugging and programming tool built for developers working with Cortex-M core chips. Designed with both TYPE-C and Micro USB input options, it provides seamless connectivity and supports SWD (Serial Wire Debug) for reliable data transfer. Whether youre flashing firmware, tracing code, or debugging real-time applications, this tool offers a plug-and-play experience across Windows and Linux environments. C PORT Downloader With a 3.3V output and USB 5V input, it ensures consistent performance in any embedded development workflow. Compact in size but powerful in capabilityits the ideal companion for ARM Cortex-M development.

Features:

1. Supports all Cortex-M core chips
2. Dual USB input (TYPE-C & Micro)
3. SWD 4-wire interface: VCC, GND, SWDIO, SWCLK
4. Compatible with Windows and Linux
5. Compact and portable (49mm x 18mm)
6. Flash download, debugging, and trace support
7. CMSIS-DAP-JTAG/SWD protocol support
8. USB powered with stable 3.3V output
9. Seamless integration with Keil, IAR, and other IDEs

Package Includes:

1 x J-Link Ob Downloader Daplink Micro Usb Version

1 x Downloader DuPont cable
