LinkStar-H68K-1432 Router with Wi-Fi 6, 4GB RAM & 32GB eMMC, dual-2.5G & dual-1G Ethernet, 4K output, Pre-installed Android 11, Lubuntu 20.04 & OpenWRT support, Home Assistant

LinkStar-H68K router equips quad-core Cortex-A55 RK3568 chip, featuring 4 Ethernet interfaces for dual-2.5G and dual-1G, along with Wi-Fi 6 technology, while providing high storage capacity and media player functionality, functioning well both indoors and outdoors, whether for traveling and stationary.

LinkStar-H68K equips quad-core Cortex-A55 RK3568 chip, featuringdual-1G Ethernetanddual-2.5G Ethernetas 4 network interfaces overall, assembled in one portable metal box, carrying dual-band Wi-Fi 6, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.

High Storage Capacity

This compact equipment equipsonboard 32GB eMMC, along with one SD card slot and one USB3.0 Type-C which supports an external hard drive for storage extension. Combined with fast-speed Ethernet, you can use it to establish a NAS(Network Attached Storage) to store and access abundant information over a network without physical file transformation.

Outstanding Wi-Fi 6 Technology

With wireless capability, it can perform as a repeater and connect different Wi-Fi at different places like hotels and cafes, then convert them to a network you set up, to link all your devices, which is beneficial for your travel or business trip.

4K Multimedia Player

With such storage and network capability, it houses anHDMI 2.0port and a 3.5mm microphone port, installingAndroid 11 OSin advance, outputting 4K immersive visuals, all of which make it a neat network media player to stream media and display instantly, while providing access to online services like Spotify or YouTube.

Great Extensibility

Additionally, it provides an SD card slot, one USB 3.0, and two USB 2.0 ports for further usage. You can connect aUSB printerwith it for print serving in the office which can be available to the entire network. Meanwhile, you canswitch to a different Operating Systemby inserting different SD cards without overwriting the original one.

Multiple OS support

Not only Linux systems likeLubuntu 20.04, but you can also run it with a dedicated routing system like OpenWRT for building a fast speed and secure router in concentration. You can utilize it to establish aVPN routerof your own, realize remote control, avoid advertising, and other personal customization by your definition.

The design of LinkStar-H68K is light and mini-sized that it can be lifted by one singular hand. It is built around metal for passive heat dissipation. You can charge it with a 5-24V power adaptor and 5V Type-C connector.

Application:

• VPN router
• NAS
• Remote control/work
• Game Server
• Block advertising
• Print server
• Firewall
• Tethering

Features:

1. Wi-Fi 6: The router supports Wi-Fi 6 technology, which provides faster speeds, better performance, and increased capacity.
2. RAM & Storage: The router comes with 4GB RAM and 32GB eMMC storage, providing ample storage and memory to handle multiple tasks simultaneously.
3. Ethernet Ports: The router features dual-2.5G and dual-1G Ethernet ports, providing high-speed connectivity for multiple devices.
4. 4K Output: The router supports 4K output, allowing you to stream high-quality videos and movies without any lag.
5. Operating Systems: The router comes pre-installed with Android 11, and Lubuntu 20.04, and supports OpenWRT, giving you the flexibility to choose the operating system that best suits your needs.
6. Home Assistant: The router comes with Home Assistant, allowing you to automate your home and control your devices from a single interface.

Specifications:

1. Processor: Rockchip RK3568 for up to 2.0GHz
2. CPU: Quad-core 64-bit Cortex-A55
3. GPU: ARM G52 2EE
4. NPU: 1 TOPS@INT8
5. Multi-Media:
   1. 4K@60fps H.265/H.264/VP9 video decoder
   2. 1080@60fps H.265/H.264 video encoder
6. Support 8M ISP, HDR
7. Storage:
   1. Onboard 32GB eMMC
   2. Card Slot: 1x SD card slot for storage expansion
8. Operating System:
   1. Pre-installed Android 11 OS
   2. Supports Lubuntu 20.04, Armbian, Android, Openwrt, Buildroot
9. Wireless: Dual-band 2.4G/5G Wi-Fi 6
10. M7921E module: NIC
11. 2x 1G Ethernet NIC RTL8211F
12. 2x 2.5G Ethernet NIC RTL8125B
13. Video Output: 1x HDMI2.0 interface for 4K output
14. Audio: 1x 3.5mm four-piece headphones for both input and output
15. USB
    1. 1x USB 3.0 Type-A
    2. 1x USB 3.0 Type-C, capable of storage expansion and 5V power supply
    3. 2x USB 2.0 Type-A
16. Power Supply
    1. Operating voltage: 5V~24V DC(12V-1A DC recommended)
    2. Recommend: 12V-1A DC
    3. Recommend(with additional hardware driver): 12-2A DC
    4. Recommend(with Type-C connector): under 5V
17. Power Consumption: 7.5WWith a fully loaded network port
18. Operating temperature: -10 ~ 55C

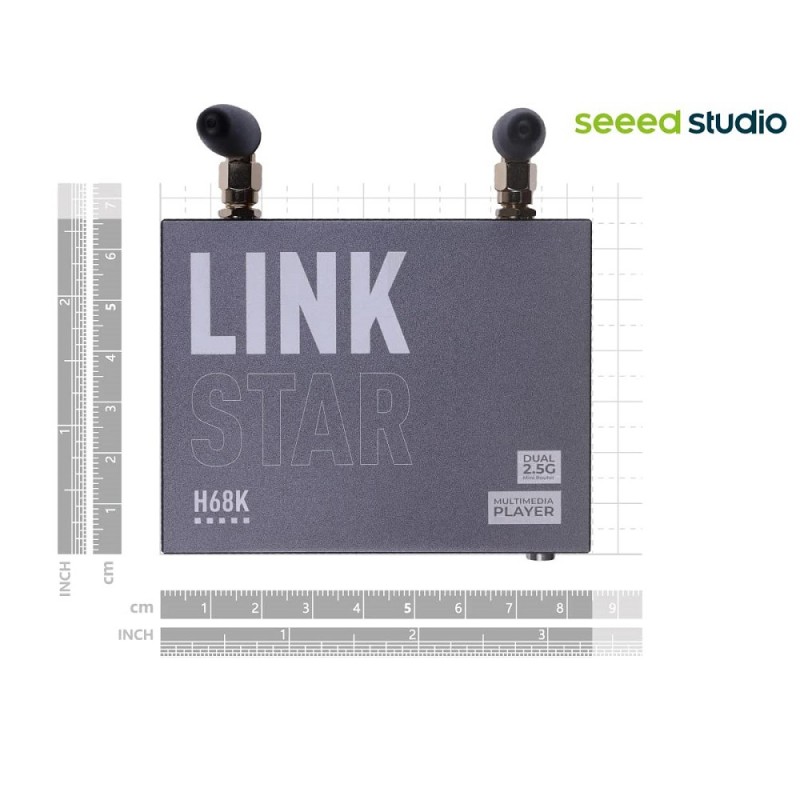

19. Dimensions: 80 * 60 * 40mm

Package Includes:

1 x LinkStar-H68K-1432 Router with Wi-Fi 6 4GB RAM & 32GB eMMC
