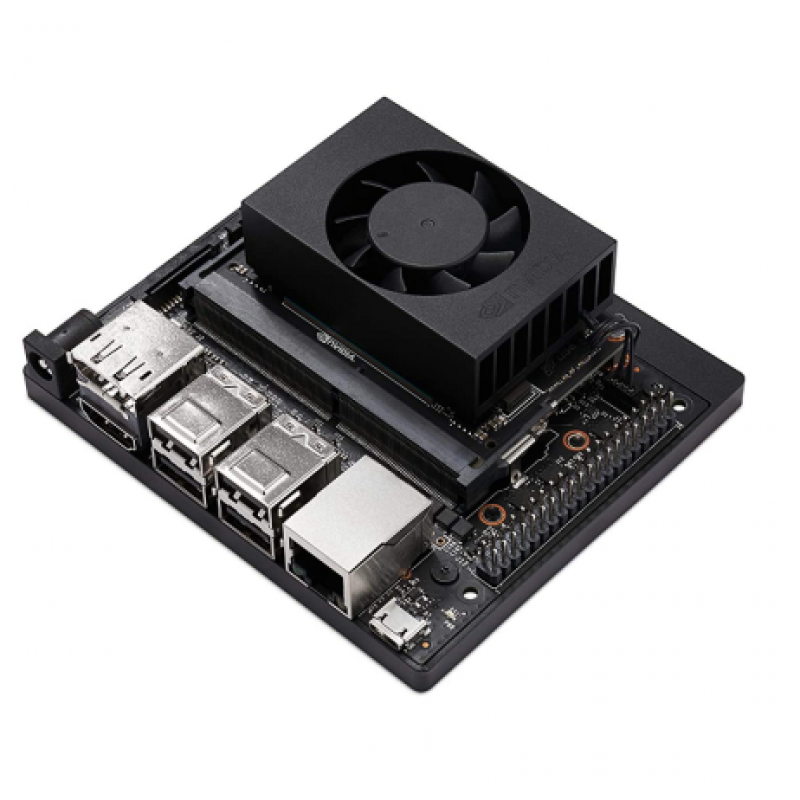

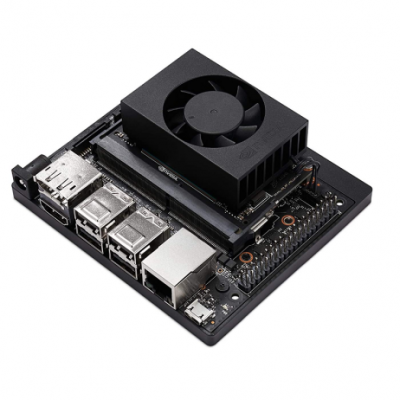

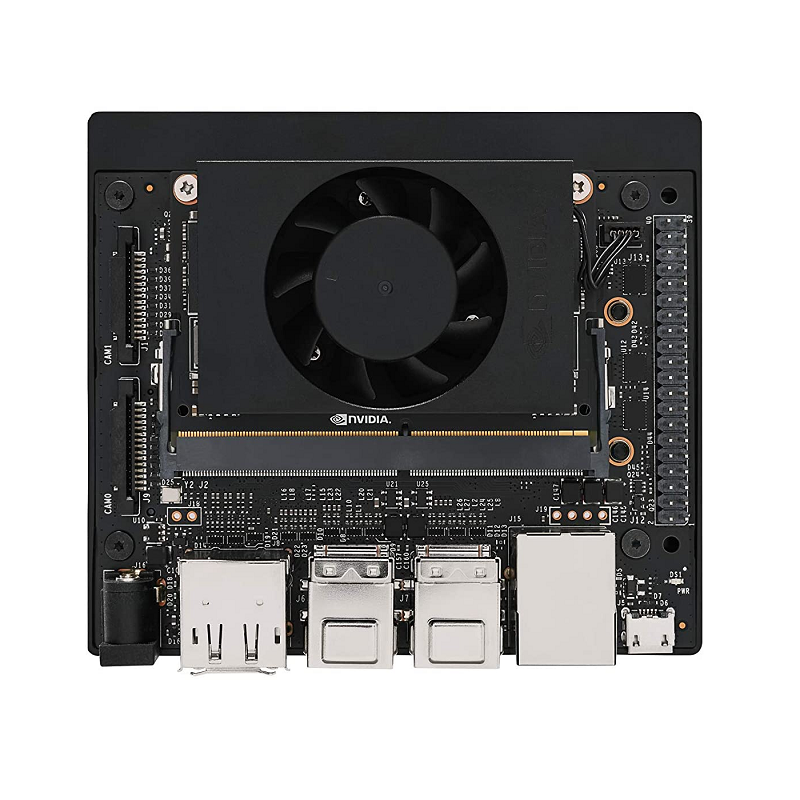

NVIDIA Jetson Xavier NX Developer Kit

This is an all-new NVIDIA Jetson Xavier Developer Kit, which includes a power-efficient, compact Jetson Xavier NX module for AI edge devices. It benefits from new cloud-native support and accelerates the NVIDIA software stack in as little as 10 W with more than 10x the performance of its widely adopted predecessor Jetson TX2.

For intelligent machine OEMs, start-ups, and AI application developers who want to create breakthrough products, the Jetson Xavier NX Developer Kit delivers the capability to develop and test power-efficient, small form factor solutions with accurate, multi-modal AI inference. The NVIDIA Jetson Xavier NX board is based on 6-core NVIDIA Carmel ARM v8.2 64-bit CPU, it also has a GPU with 384 NVIDIA CUDA cores and 48 Tensor cores.

Useful Link:

https://docs.nvidia.com/jetson/archives/r34.1/DeveloperGuide/text/AR/BootArchitecture/JetsonXavierNxAndJetsonAgxXavierBootFlow.html

Features:

1. Based on 6 Core NVIDIA Carmel ARM v8.2 64-bit CPU
2. 8GB 128-bit LPDDR4 Memory
3. Dual NVDLA DL Accelerator Engines
4. GPU with 384 NVIDIA CUDA Cores and 48 Tensor Cores
5. Dual MIPI CSI-2 DPHY Camera Lanes

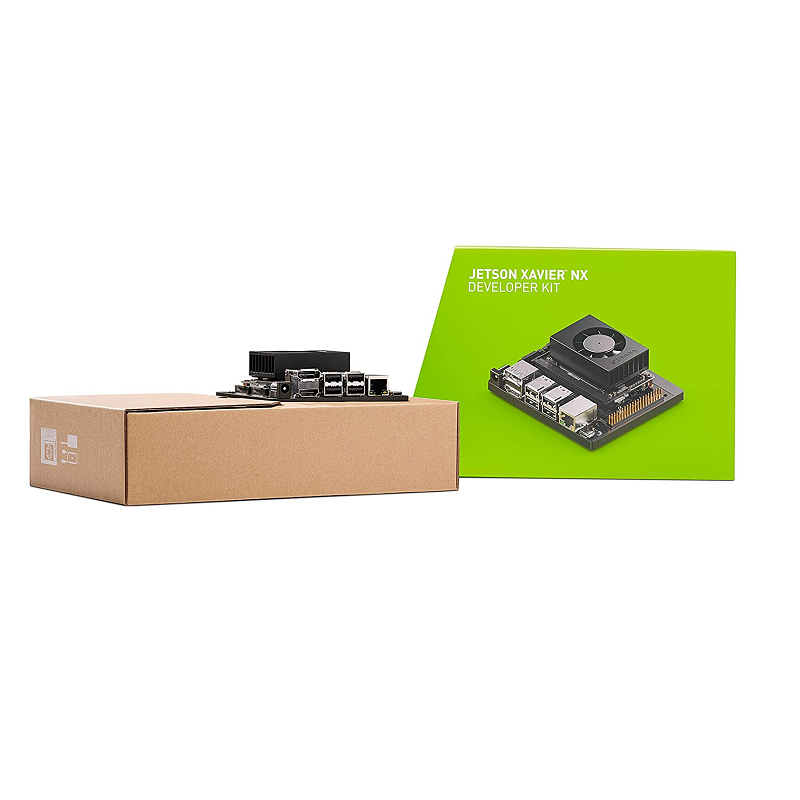

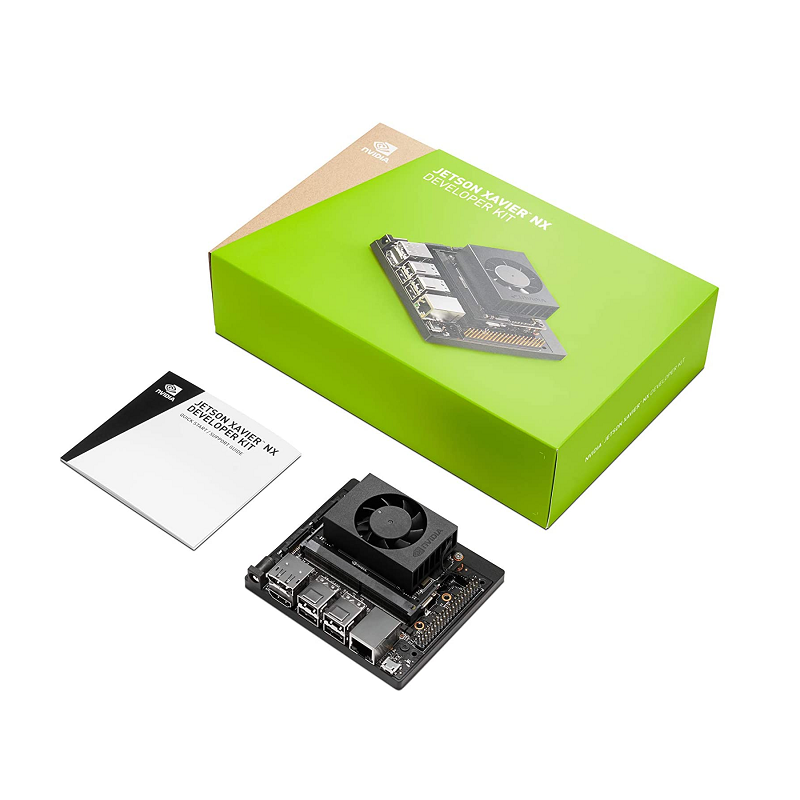

Package Includes:

1 x NVIDIA Jetson Xavier NX Module

1 x 19V Power Supply

1 x 802.11 Plug-in WLAN and Bluetooth Module with Antennas (assembled underneath the carrier board)

1 x Quick Start Guide and Support Information
