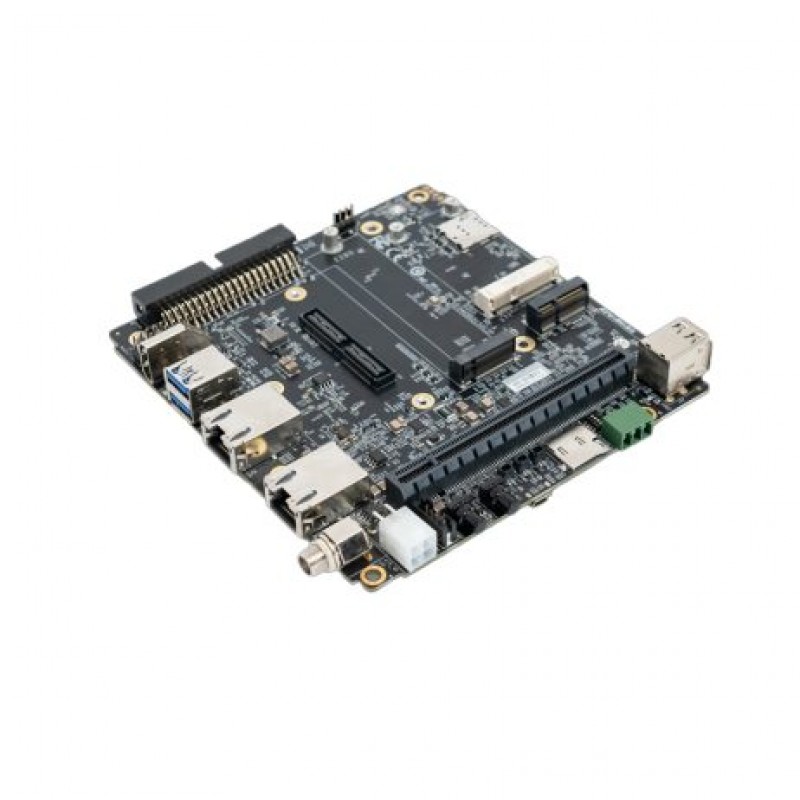

Avermedia D315 5G Carrier Board for AGX Orin/AGX Orin Industrial with Power Adapter

AVerMedia Carrier Board D315 support NVIDIA Jetson AGX Orin module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315 includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315 furnishes a PCIe slot for multi-function expansion and excellent compatibility with Wi-Fi 6 and 5G.

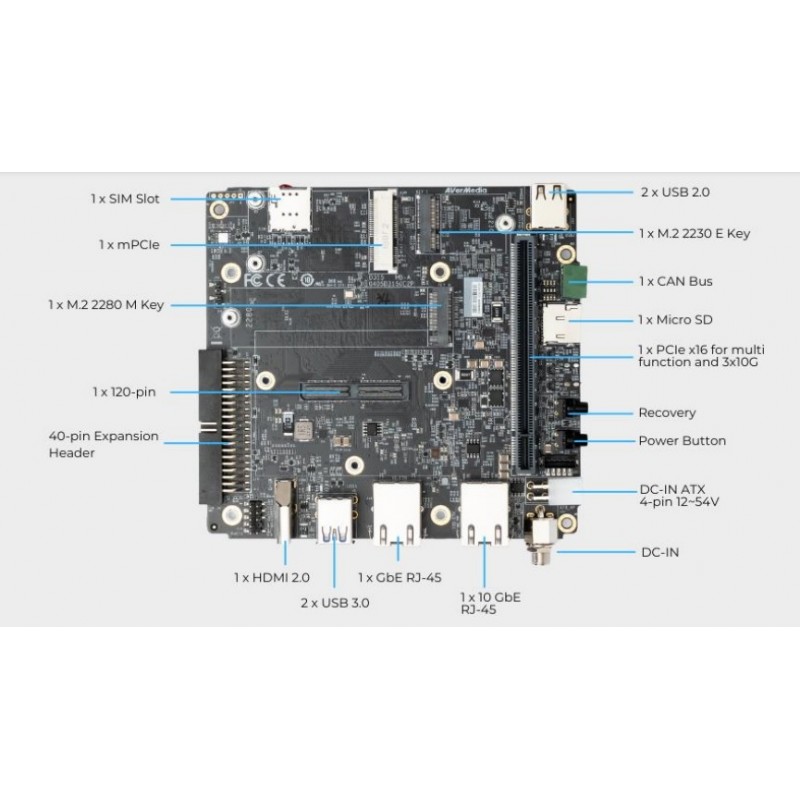

Features:

1. Optimized for NVIDIA Jetson AGX Orin: Enhances AI performance for advanced applications.
2. High-Speed Camera Connector: 120-pin connector for MIPI SerDes cameras, supporting GMSL2/FPD-Link III/V-by-One HS.
3. Dual Ethernet Ports: 1x GbE and 1x 10G RJ-45 for simultaneous streaming from multiple IP cameras.
4. 10GigE Vision Camera Support: Ideal for high-speed data transfer in smart inspection applications.
5. Expansion Capability: 1x PCIe slot for additional functionality and peripherals.
6. Wi-Fi and Cellular Connectivity: 1x M.2 E key for Wi-Fi 6E and mPCIe for 4G/5G modules.
7. SSD and Capture Support: 1x M.2 M key for SSDs and AVerMedia capture cards.

Package include:

1 x Avermedia D315 5G Carrier Board for AGX Orin/AGX Orin Industrial with Power Adapter

1 x 54V Adapter/Power cord

1 x Terminal block
