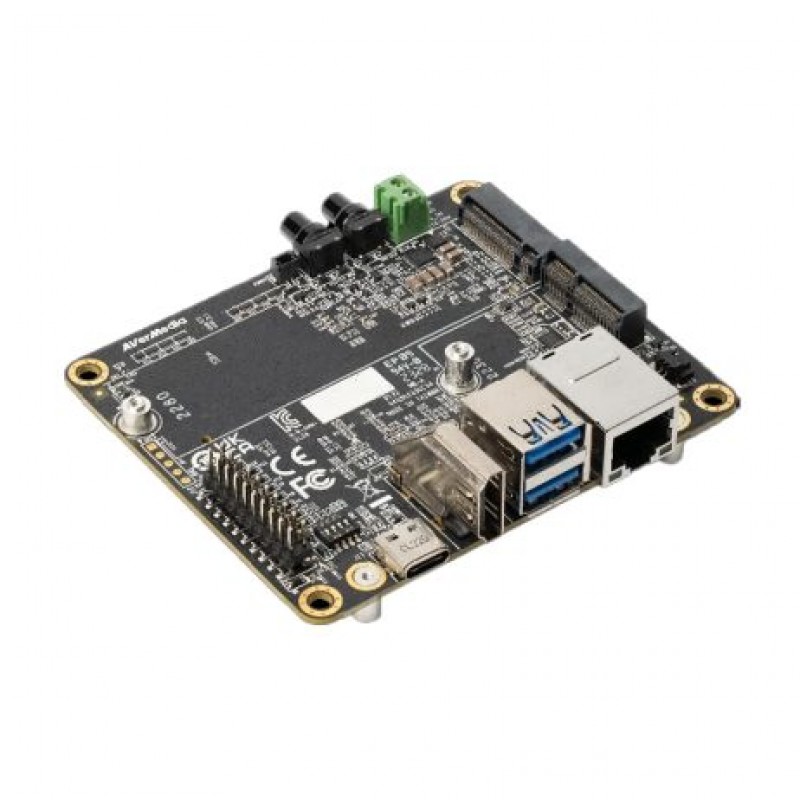

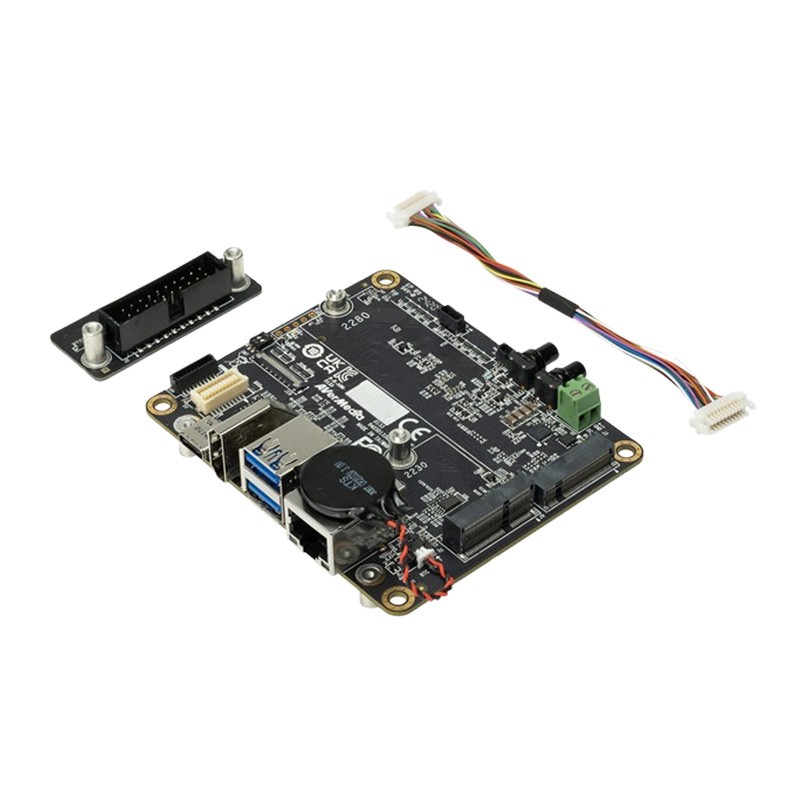

Avermedia D133 Carrier Board for Orin NX/Orin Nano
- Product Code: EPI29518
- Availability: 5
-
Rs.13231.00
- (Excluding 18% GST)
OR
The AVerMedia D133 Carrier Board is a versatile and robust solution designed to support the powerful NVIDIA Jetson Orin NX and Orin Nano modules. This carrier board is engineered for high-performance embedded applications, making it ideal for advanced AI, IoT, and edge computing solutions.
AVerMedias D133 Carrier Board support powerful NVIDIA Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities. D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIAs JetPackTM SDK.
Note 5G enabled only through 5G card through the OOB module and daughter board.
Features:
- Compatible with NVIDIA Jetson Orin NX/Nano for advanced computing.
- 1x GbE RJ-45 port for reliable network connectivity.
- 2x USB 3.2 Type-A ports for high-speed data transfer.
- 1x HDMI output supporting 4K resolution (60Hz for Orin NX, 30Hz for Orin Nano).
- 2x 4-lane MIPI CSI-2 interfaces for camera integration.
- 20-pin expansion header for additional peripheral support.
- 1 x 5G daughter board for 4G/5G/capture card functions (Optional)
Package include:
1 x Avermedia D133 Carrier Board for Orin NX/Orin Nano
1x DC IN jack cable
1x screws
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
