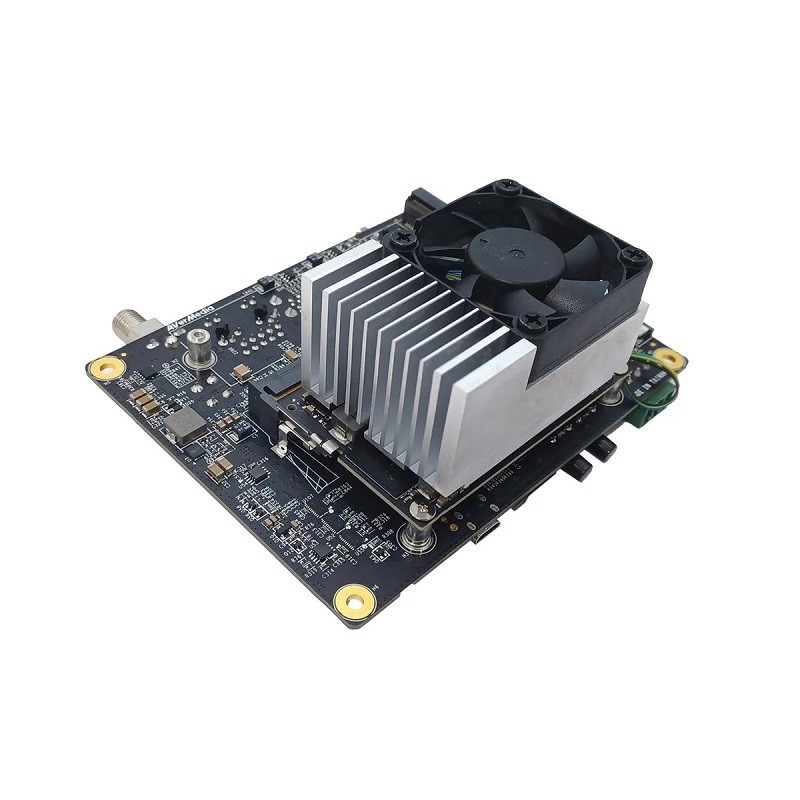

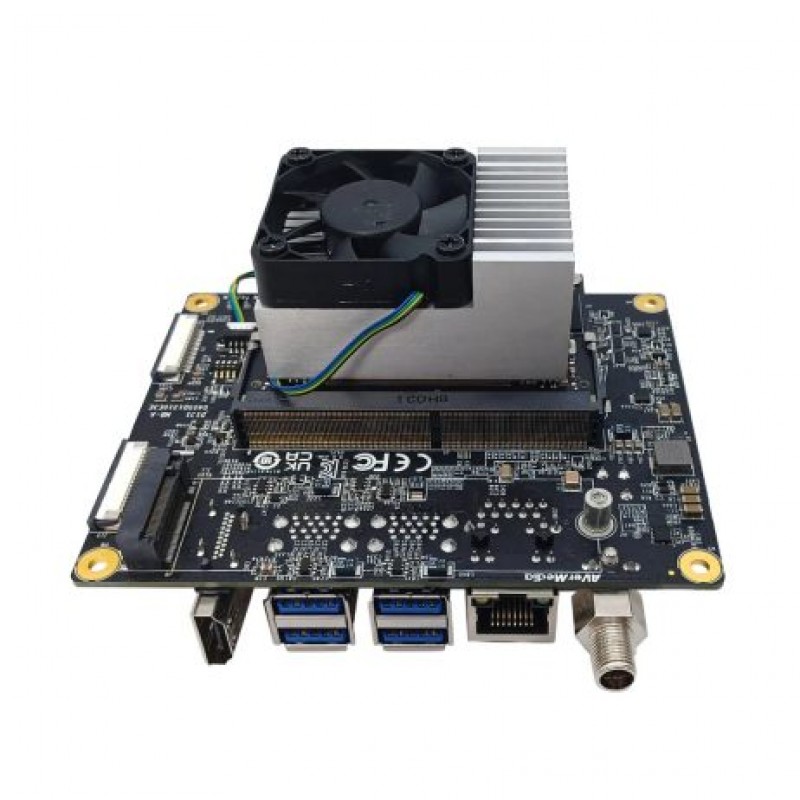

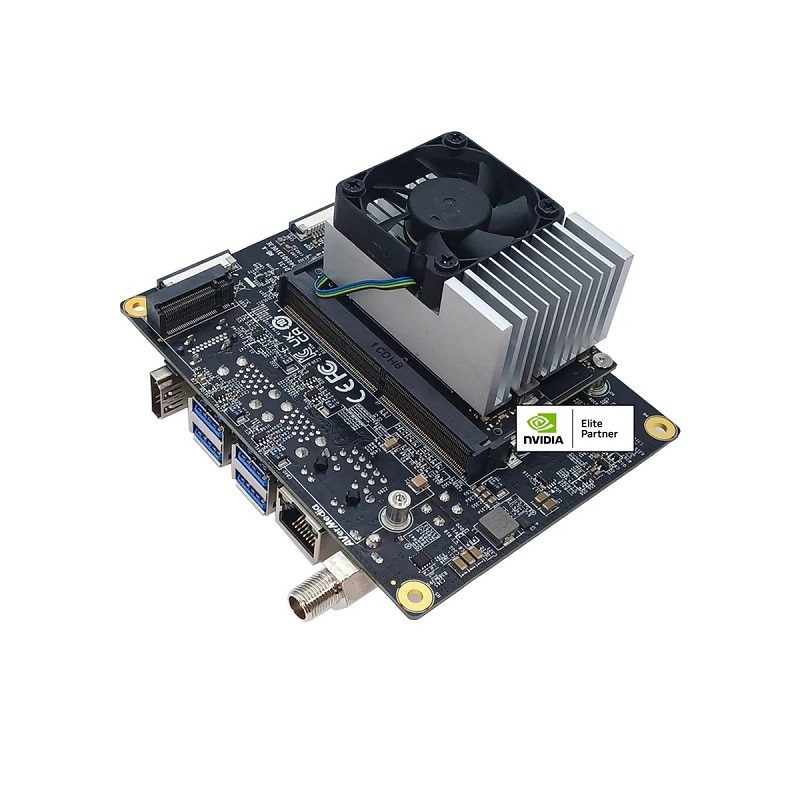

Avermedia D131LON Engineering Kit built with NVIDIA Jetson Orin Nano 4GB Module

D131LON Engineering Kit built with NVIDIA Jetson Orin Nano module, which brings next-level AI performance and power-efficient capability for all autonomous machines. Avermedia D131LON Engineering Kit is efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

Features:

1. Embedded NVIDIA Jetson Orin NX 4G Module
2. 1 x 2 Lane MIPI CSI 2
3. 1 X GbE RJ 45 ( optional PoE) , 40 pin expansion header
4. 4 x USB 3.2 and 1 x 4 Kp 30 HDMI output
5. AMRs (Autonomous Mobile Robots):Live camera feeds enable rapid and flexible adjustments to workflows, leading to significant productivity growth.
6. Smart Security: Live camera feeds facilitate video analysis, enhancing and ensuring community safety.
7. Smart Inspection: Live camera feeds enable fast and accurate detection, improving quality control in production.
8. Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
9. Expansion Header : 40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, 6x GPIOs , 1xOOB supported by Allxon
10. MIPI Camera Inputs : 1x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
11. Display Output: 1x HDMI 3840 x 2160 at 30Hz for Orin Nano
12. Input Voltage: DC 9V to 24V
13. Storage : 1x M.2. key M 2280 for SSD
14. Input Current: DC IN Jack (on board): 7A (at 9V) to 2.6A (at 24V), ATX 4-Pin Connector: 7A (at 9V) to 2.6A (at 24V)
15. Networking : 1x GbE RJ-45 (PoE option), 1xM.2. key E 2230 for Wi-Fi (AC9260)

Package Includes:

1 x D131LON-4G ( W/O SSD)

1 x Supporters

1 x Screw
