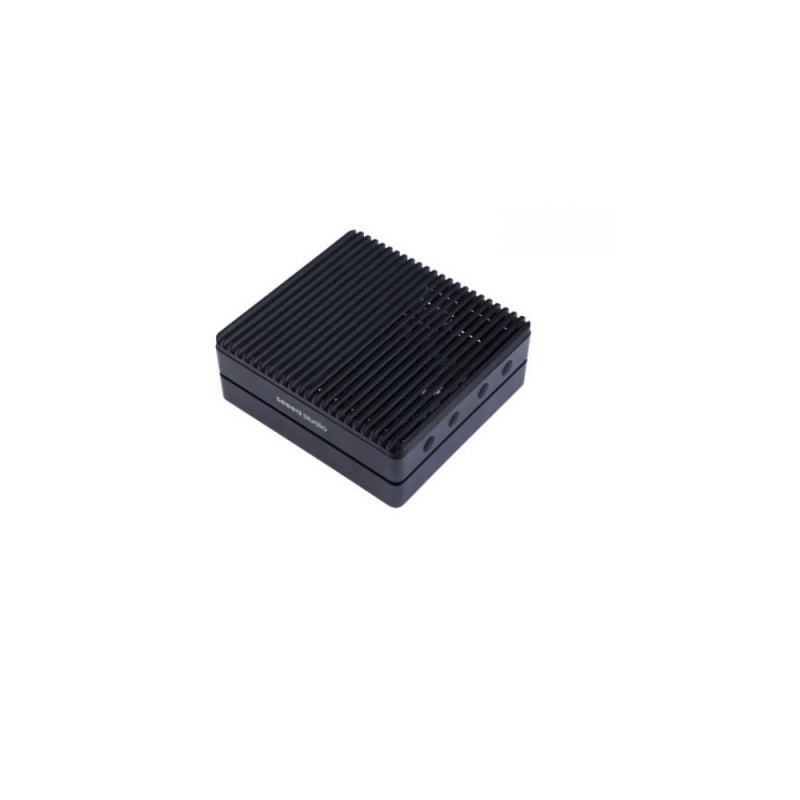

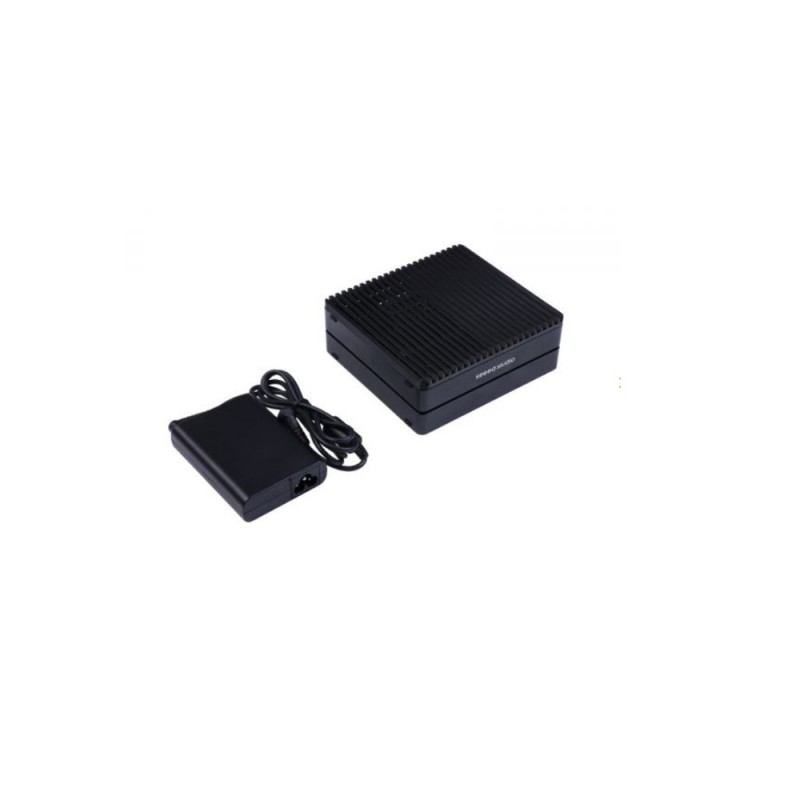

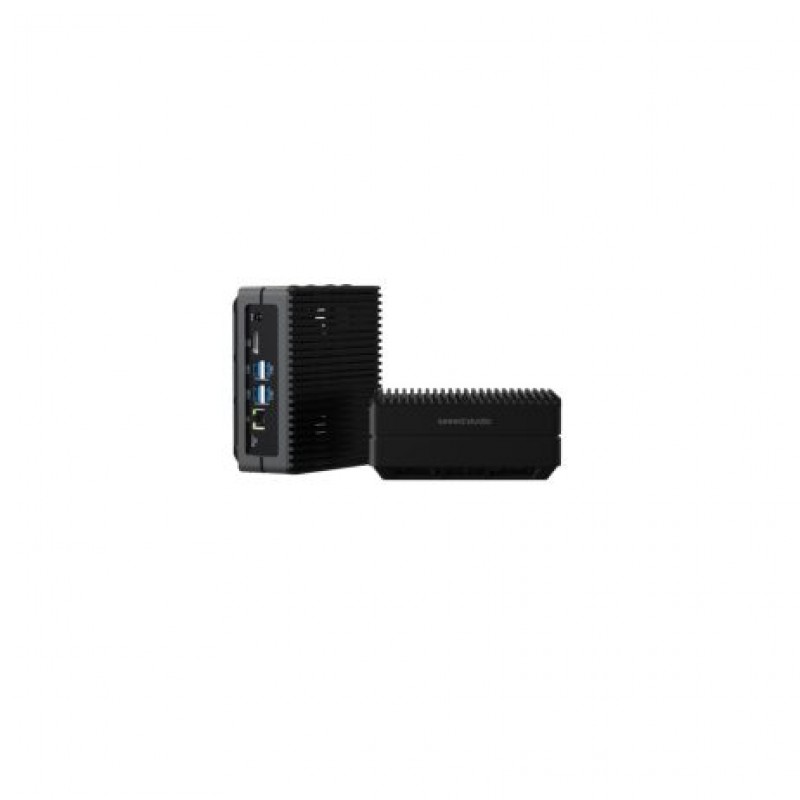

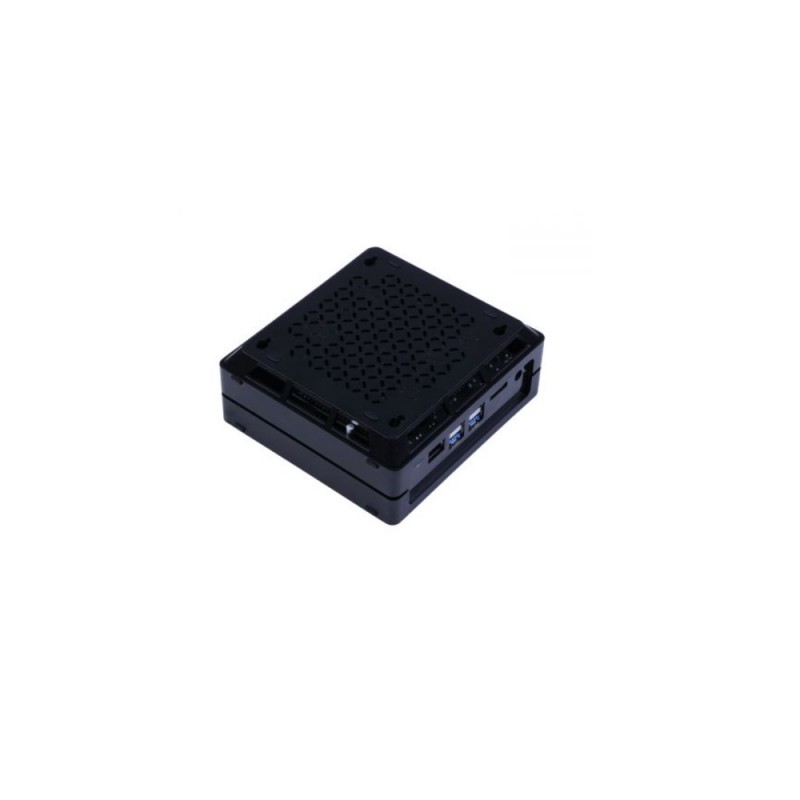

reComputer J4011-Edge AI Device with NVIDIA Jetson Orin NX 8GB Module (Without Adapter)

reComputer J4011-Edge AI Device with NVIDIA Jetson Orin NX 8GB Module is a powerful and compact intelligent edge box to bring up to 70TOPS modern AI performance to the edge, whichoffers more than3.5X the performance of Jetson Xavier NXand more than2X the performance of Jetson AGX Xavier.Combining the NVIDIA Ampere GPU architecture with 64-bit operating capability, Jetson Orin NX integrates advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.

The full system includes one NVIDIAJetson Orin NX 8GB production module, and a heatsink. reComputer J4011 is preinstalled with NVIDIA JetPack 5.1, simplifies development, and fits for deployment for edge AI solution providers working in video analytics, object detection, natural language processing, medical imaging, and robotics across industries of smart cities, security, industrial automation, smart factories.

Seeed carrier board for reComputer J4011 is a high-performance, interface-rich board, providing HDMI 2.1, Gigabit Ethernet, USB 3.2, M.2 key E, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fan, and other rich peripheral interfaces.

Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capabilities to all your embedded AI and edge systems.

Note: For more technical details go through Datasheet in the attachment section

Application:

reComputer J40 series, powered by Orin NX, is ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more. The following are a few of the applications that have been tested with Xavier NX and you can take them for reference in order to build applications using Orin NX as well.

Feature:

1. Brilliant AI Performance for production:on-device processing with up to 70 TOPS AI performance with low power and low latency
2. Hand-size edge AI device: compact size at130mm x120mm x 58.5mm, includes NVIDIAJetson Orin NX production module, a heatsink, enclosure.Supportdesktop, wall mount, fit in anywhere
3. Expandable with rich I/Os:4x USB3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN and GPIO
4. Accelerate solution to market:pre-installed JetPack with NVIDIA JetPack 5.1 on the included 128GB NVMe SSD, Linux OS BSP, 128GB SSD, support Jetson software and leading AI frameworks and software platforms
5. Comprehensive certificates:FCC, CE, RoHS, UKCA

Package Includes:

1 x NVIDIA Jetson Orin NX 8GB

1 x Seeed carrier board (reComputer J401)

1 x 128GB NVMe SSD

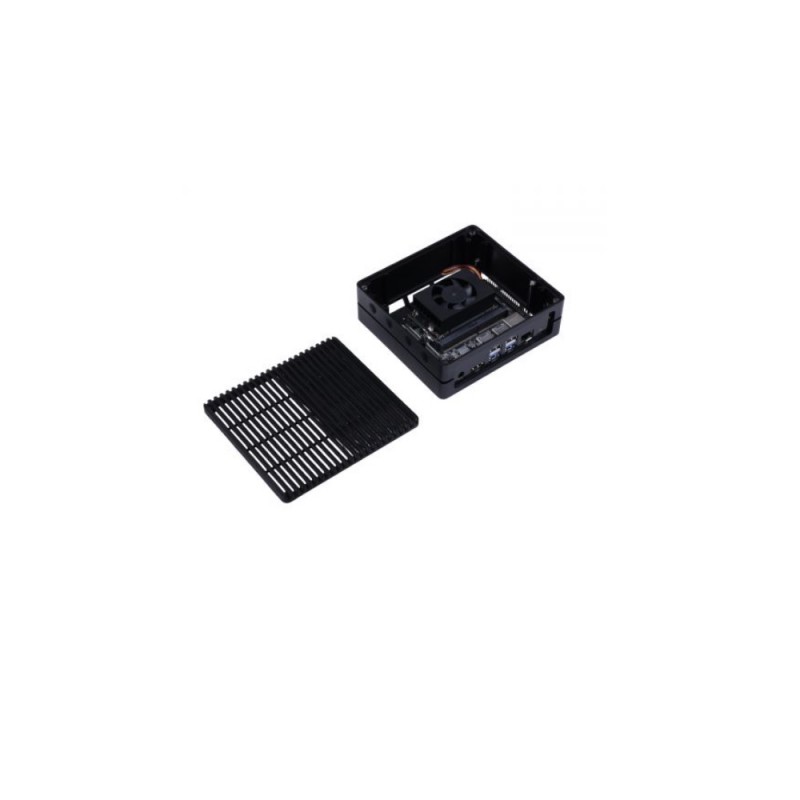

1 x Aluminum heatsink with fan

1 x Aluminum case (black)
