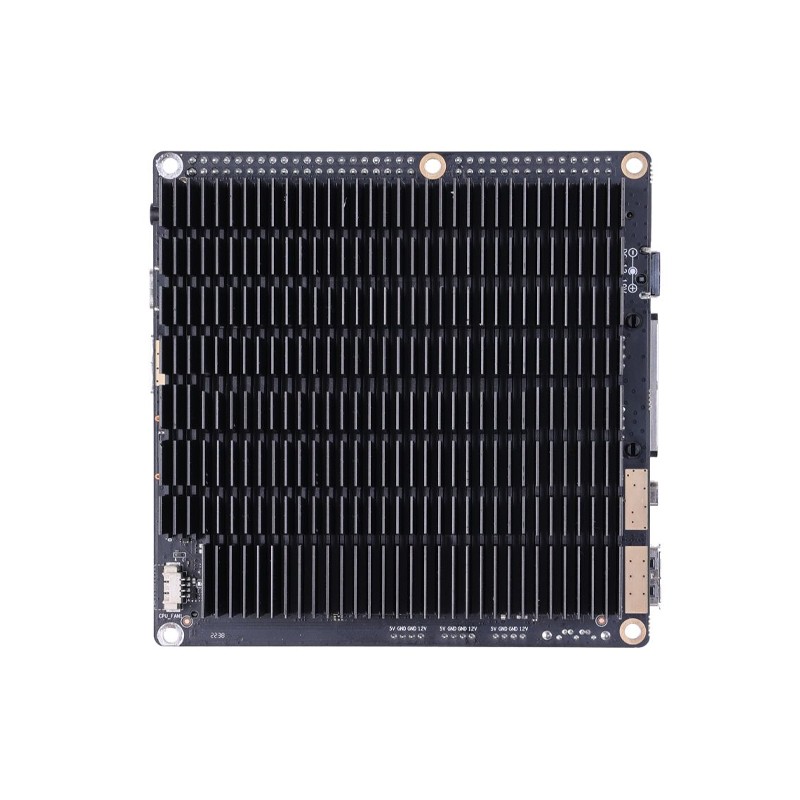

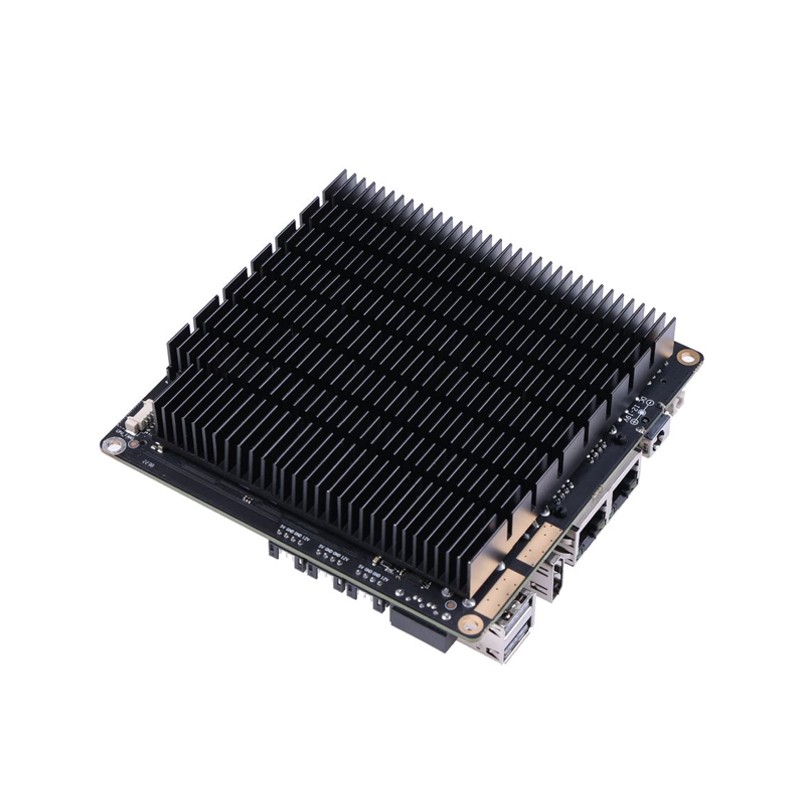

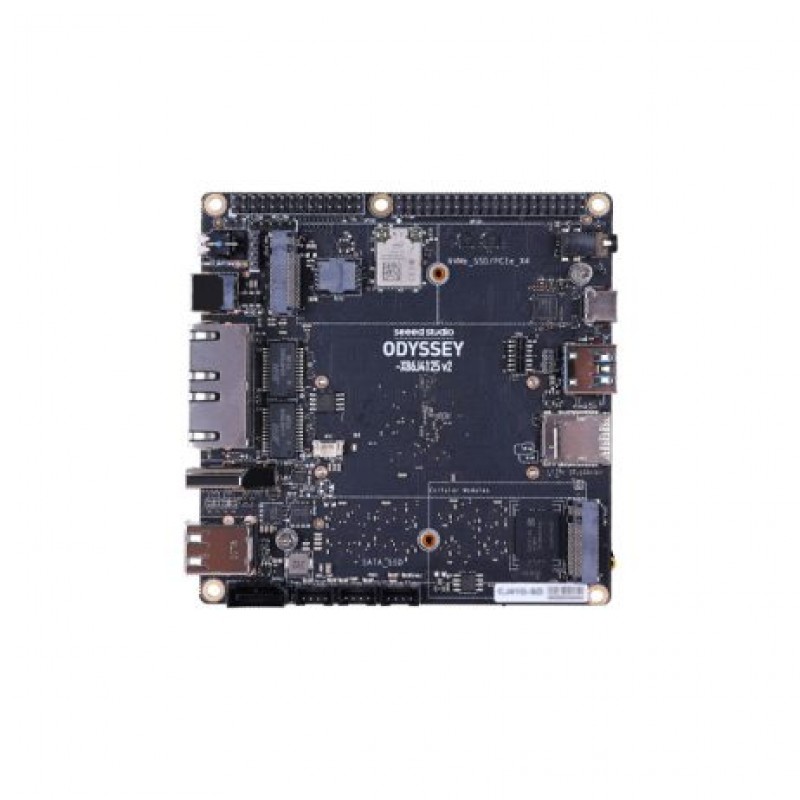

ODYSSEY X86J4125800 v2 with Linux and RP2040 Core Single Board Computer 2.7GHz 4 Core 8GB RAM Intel Celeron J4125

ODYSSEY X86J4125800 v2 features a quad-core Intel Celeron J4125 and an RP2040 co-processor, equipping dual 2.5GbE interfaces and multiple wireless connectivities, supporting 4K output, carrying sufficient storage capability, and offering equipment expandability, and it is operated by multiple OSs, all of which indicate that it can be an ideal mini PC, a functional router, a media center, or other development applications by your definition.

ODYSSEY X86J4125800 v2 features a quad-core Intel Celeron J4125, assembling multiple functions in this SBC (Single Board Computer). It offers dual 2.5 GbE interfaces and multiple wireless connectivities, supports two displays for 4K output, carries sufficient storage capability and equipment expandability, is operated by Windows, Linux, and OpenWRT OS, and is connected through the entire Grove ecosystem, all of which indicate that it can be an ideal mini PC, a functional router, a media center, or other development applications by your definition.

You can access a fast-speed network with equipped dual 2.5GbE interfaces, which increases the network performance and helps you with daily work efficiency. Meanwhile, there is dual-band Wi-Fi onboard, which improves throughput capability and connection flexibility. This board also supports 4G LTE communication, where you can insert a Micro-SIM card and input a 4G module. With enhanced interconnectivity, this little box can implement the function of a high-speed router and IoT gateway.

This mini desktop PC comes with Intel UHD Graphics 600 and an HDMI 2.0a interface, which offers 4K 60Hz immersive visual output. Furthermore, the USB 3.1 Type-C also supports media streaming, which means it can be converted to a DP interface. You can connect two monitors at the same time and perform different tasks. It can be utilized to realize a home theater for entertainment or a conferencing video for business trips, functioning well both indoors and outdoors.

There is equipment for one SATA and dual M.2 PCIe (B key and M key) interfaces for high storage extension. You can input NVMe SSD (M.2 M-Key) or use an M.2 to SATA converter to enable the computer to connect with up to three hard drives. It even provides 1x SD card slot, 1x 3.5mm audio jack, 1x USB 3.1, and 2x USB 2.0 ports for equipment expandability. You can utilize it to build a NAS (Network-Attached Storage) or an NVR (Network Video Recorder).

Seeed Studio elaborates and establishes this development board by inserting the RP2040 co-processor, presenting a compatible Raspberry Pi 40-pin and a compatible RP2040 28-pin for high standards of operation of the development. Supported by Seeed Studios entire electronics Grove ecosystem and enhanced SenseCAP platform, you are able to manage hundreds of sensors in your projects.

Features:

1. ODYSSEY Mini PC: Quad-core Intel Celeron J4125, 8GB LPDDR4 RAM, tiny and portable, four threads decent processing power realize multitasking and edge computing
2. Hybrid & Fast Network Access: Equip dual 2.5GbE interfaces, dual-band Wi-Fi, support 4G LTE (module not included) with sim card slot
3. High-definition 4K Video Output: Intel UHD Graphics 600 provides an HDMI 2.0a port and a Type-C USB 3.1 port (DP 1.2a) for 40962160 60 Hz exhibition, which supports displaying at the same time
4. Sufficient Capability and Expandability: Provide 1x SATA, 2x M.2 interfaces, 1x SD card slot, 1x audio Jack, 1x USB 3.1, and 2x USB 2.0 ports for extension
5. High Development Design: RP2040 co-processor, compatible with Raspberry Pi 40-Pin and RP2040 28-Pin, support by Windows, Linux, OpenWRT OS, and the entire Grove ecosystem

Applications:

1. Mini PC
2. NAS (Network-Attached Storage)
3. Edge Computing
4. Router
5. Robotics
6. Industrial Applications
7. Media Center
8. IT Industry
9. Educational Fields
10. Thin Client
11. Server Cluster
12. IoT Gateway

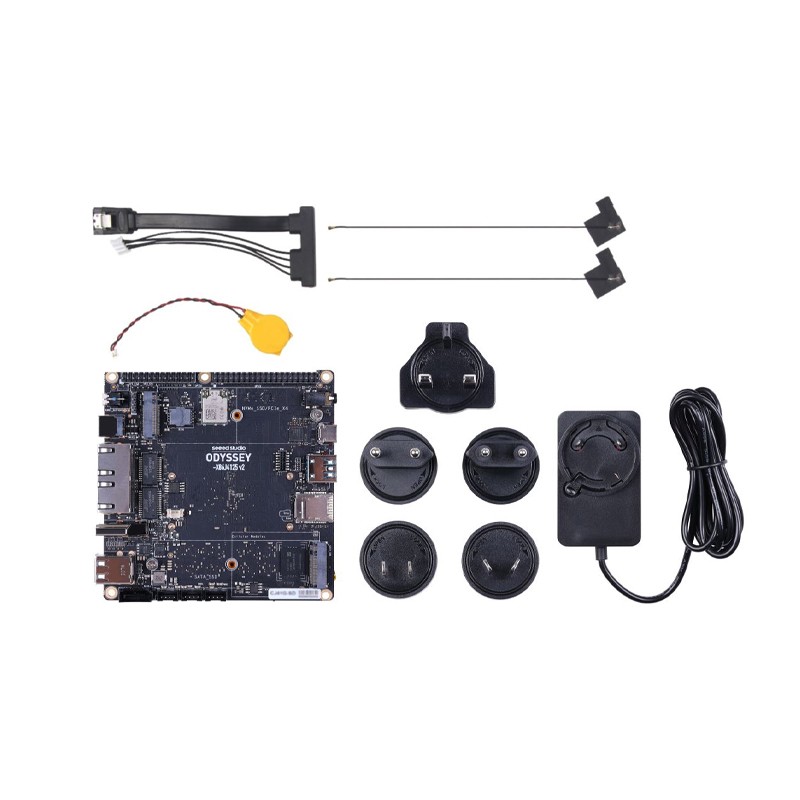

Package Includes:

1 x ODYSSEY X86J4125800 v2 with Linux and RP2040 Core Single Board Computer 2.7GHz 4 Core 8GB RAM Intel Celeron J4125

1 x International Power Adapter

2 x Antenna

1 x SATA Cable

1 x RTC Battery

1 x User Manual
