ODYSSEY X86J4125800 Most expandable Win10 Mini PC (Linux and Arduino Core) with 8GB RAM

Edge Computing devices are playing an increasingly important role in the field of IoT. Nowadays, a computer is not just a big rectangular black box under the desk, or a small portable device working on your knees. Computers are ubiquitous devices that span calculating, communicating, and data storage. Based on this definition, here we would like to introduce our new product theODYSSEY X86J4125

ODYSSEY is a series of SBC (Single Board Computer), allowing you to build Edge Computing applications with ease. The ODYSSEY X86J4125, based on Intel Celeron J4105, is a Quad-Core 1.5GHz CPU that bursts up to 2.5GHz. There is also an onboard ATSAMD21 Core, an ARM Cortex-M0+ MCU that allows you to program Arduino on the x86 platform. The ODYSSEY X86J4125 includes all the powerful features of Mini PC such as an 8GB LPDDR4 RAM, 64GB eMMC Storage(optional), onboard Wi-Fi/BLE, Dual Gigabyte Ethernet Ports, Audio Input and Output, USB Ports, HDMI, SATA Connectors and PCI.

Note: It is Unactivated version without eMMC

Powerful Desktop PC support both Windows 10 and Linux OS

Just simply connect to a mouse, a keyboard and a monitor with the ODYSSEY X86J4125, you will get a powerful Desktop Mini PC that can run Windows and Linux OS.

WithDual Gigabit Ethernet, you can build the OpenWrt project andpfSense with ease.
There are alsotwo of M.2 PCIe (B Key and M Key), which enables various expandable capabilities including Hard Drives, SSD, GPU, 4G, and even 5G cellular network connectivity.

Wide possibilities for applications

With ODYSSEY X86J4125, you can build your ownNAS (Network-Attached Storage), your high-performanceVirtual Router, or a4G LTE Gateway inyour IoT applications.

The onboard SIM card slot makes it possible to build the5G soft routerwith the extraordinary fast connection,which isvery useful in applications where there is no Wi-Fi access.

There is an onboard ATSAMD21 Core, an ARM Cortex-M0+ MCU that allows you to program Arduino on the x86 platform. The Raspberry Pi compatible 40-Pin allows you to use hundreds ofPi HATsin the market. All of these features providing endless possibilities of using the ODYSSEY X86J4125.

Start your IoT Journey with Grove System

The ODYSSEY X86J4125 is more than just a computer, with the Arduino Co-processor onboard, it can be used to connect with sensors, gyroscope, and much more. So start exploring your IoT journey from here! We have a range of Grove modules and Sensorsfor you to choose from.

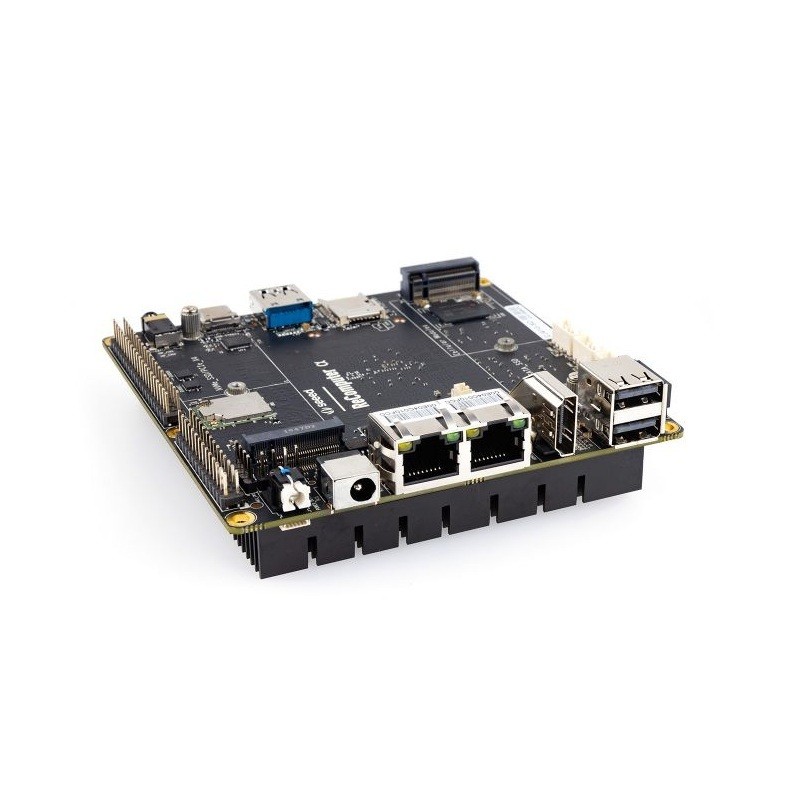

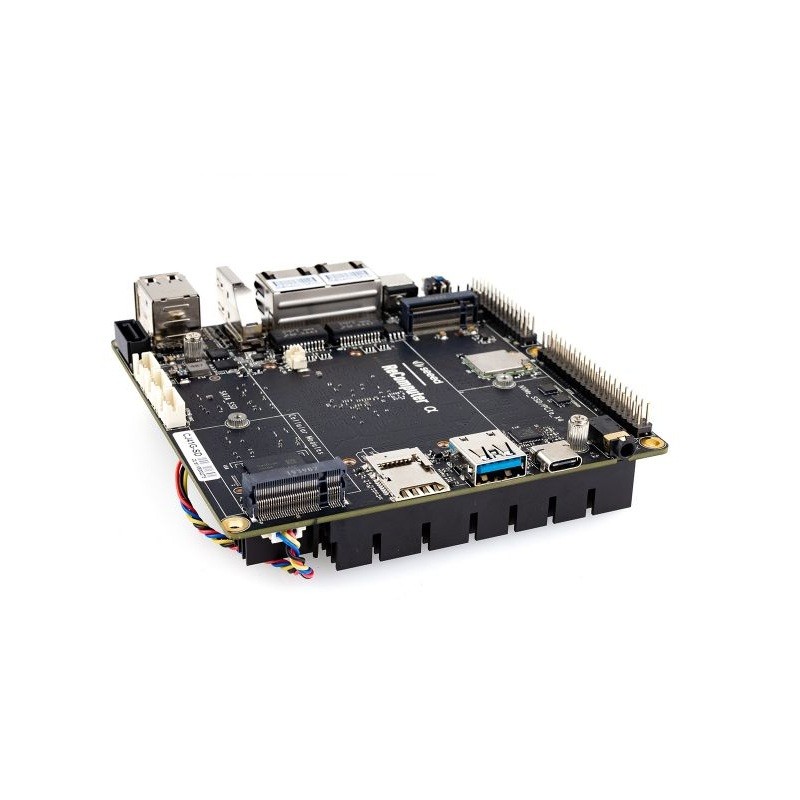

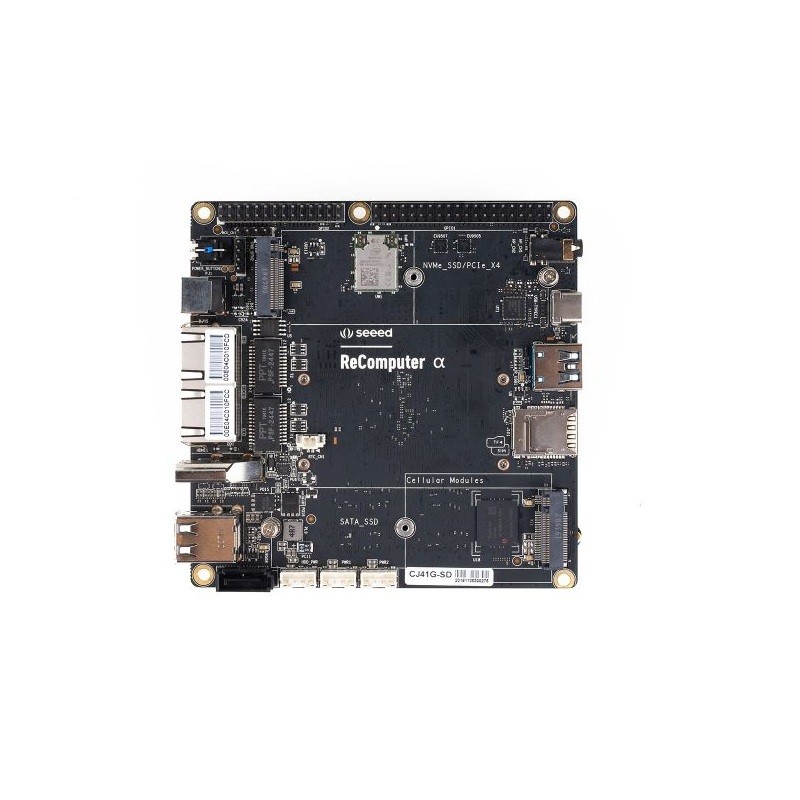

Hardware Overview

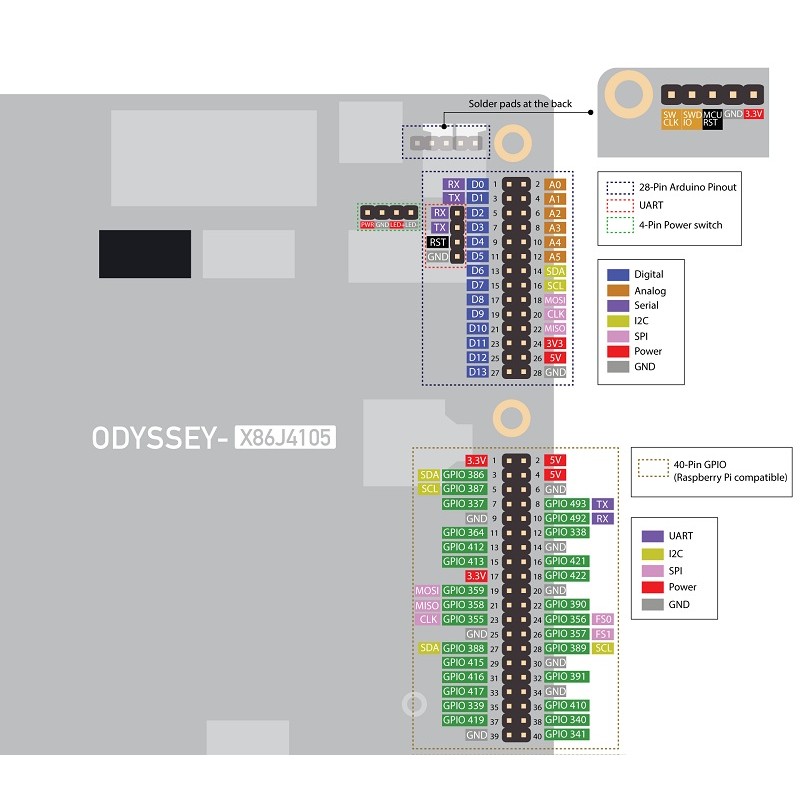

Pinout Diagram

Comparison Table of ODYSSEY X86J4125

Applications:

1. Mini PC
2. NAS (Network-Attached Storage)
3. Edge Computing
4. Router
5. Robotics
6. Industrial Applications
7. Media Center
8. IT Industry
9. Educational Fields
10. Thin Client
11. Server Cluster
12. IoT Gateway

Useful Links:

1. Installing OpenWrt on ODYSSEY
2. Installing FreeNAS on ODYSSEY
3. Edge IoT Sending Sensor Data to Cloud
4. Installing Intel Distribution of OpenVINO toolkit for ODYSSEY
5. Accessing and Controlling ODYSSEY
6. Get Started with Intel Neural Compute Stick 2 with ODYSSEY
7. Creating Botable USB and Installing OS

Features:

1. Intel Celeron J4125, Quad-Core 1.5-2.5GHZ
2. Dual-Band Frequency 2.5GHz/5GHz WiFi/ Bluetooth 5.0
3. 64GB eMMC Storage
4. Integrated Graphics: Intel UHD Graphics 600
5. Dual Gigabit Ethernet
6. IntegratedArduino Coprocessor ATSAMD21 ARM Cortex-M0+
7. Raspberry Pi 40-Pin Compatible
8. 2 x M.2 PCIe (B Key and M Key)
9. Support Windows 10 & Linux OS
10. Compatible with Grove Ecosystem

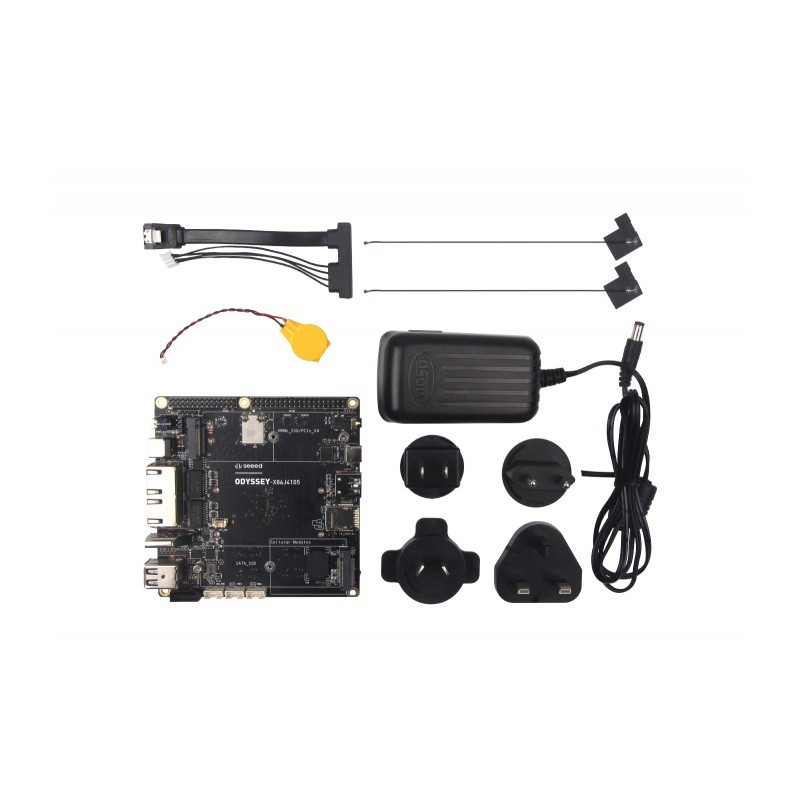

Package Includes:

1 x ODYSSEY X86J4125800

1 x User Manual

1 x International Power Adapter

1 x SATA Cable

1 x Antenna

1 x RTC Battery

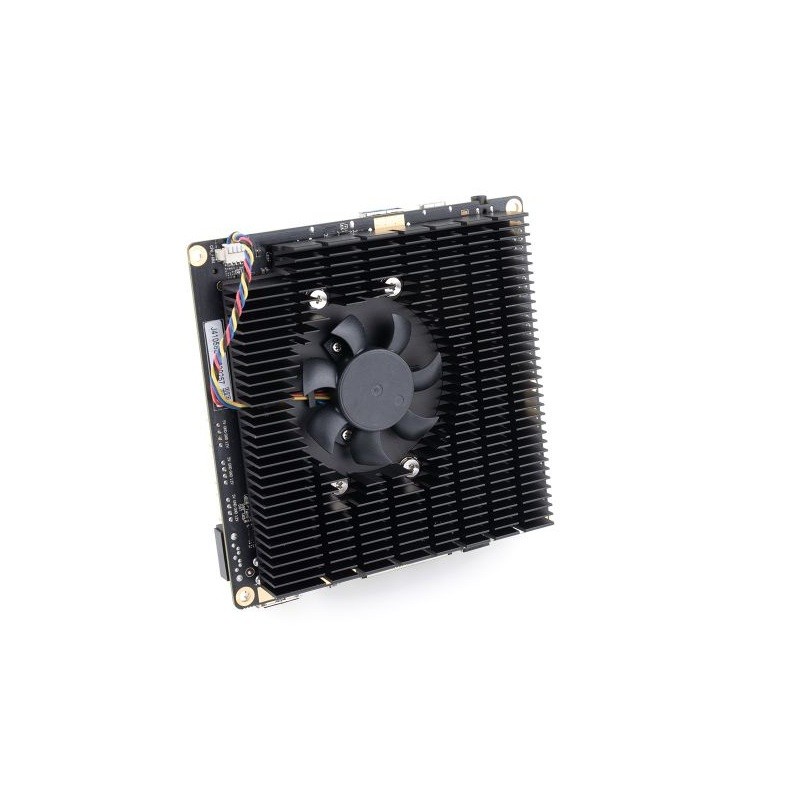

1 x Heat Sink(Assembled)

1 x Cooling Fan (Assembled)
