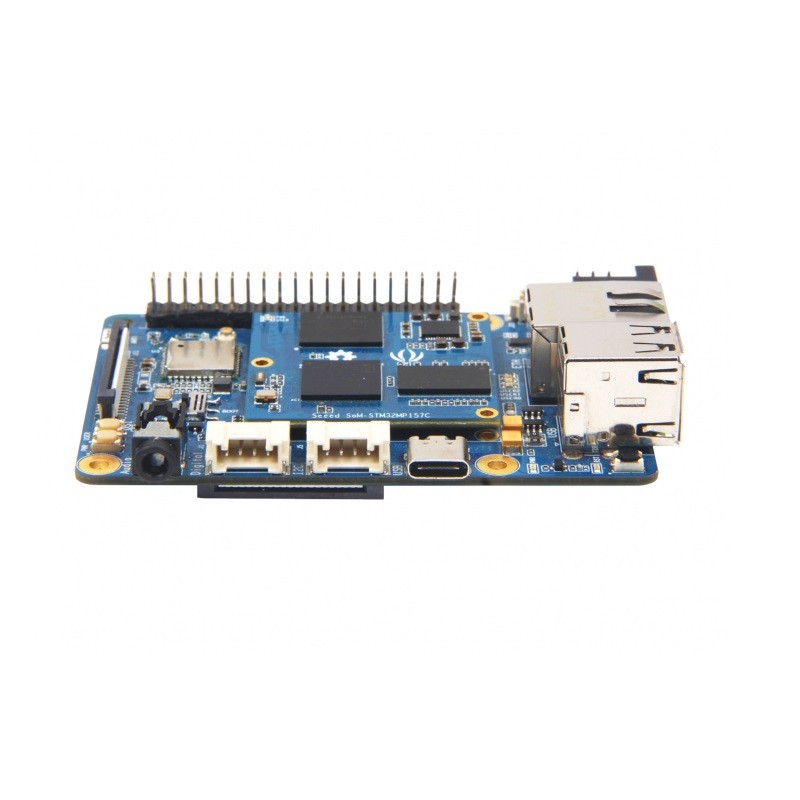

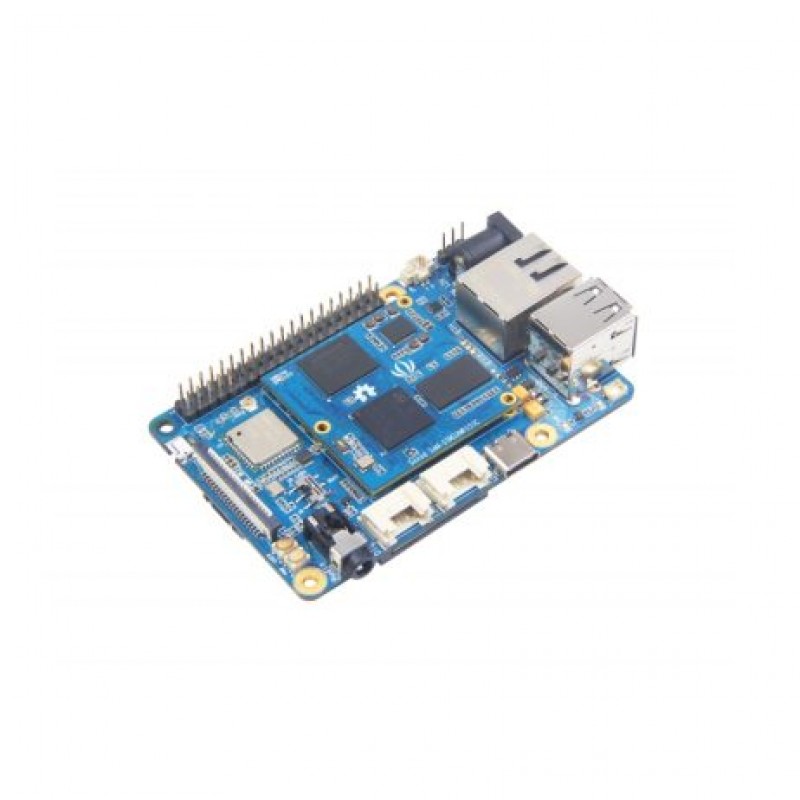

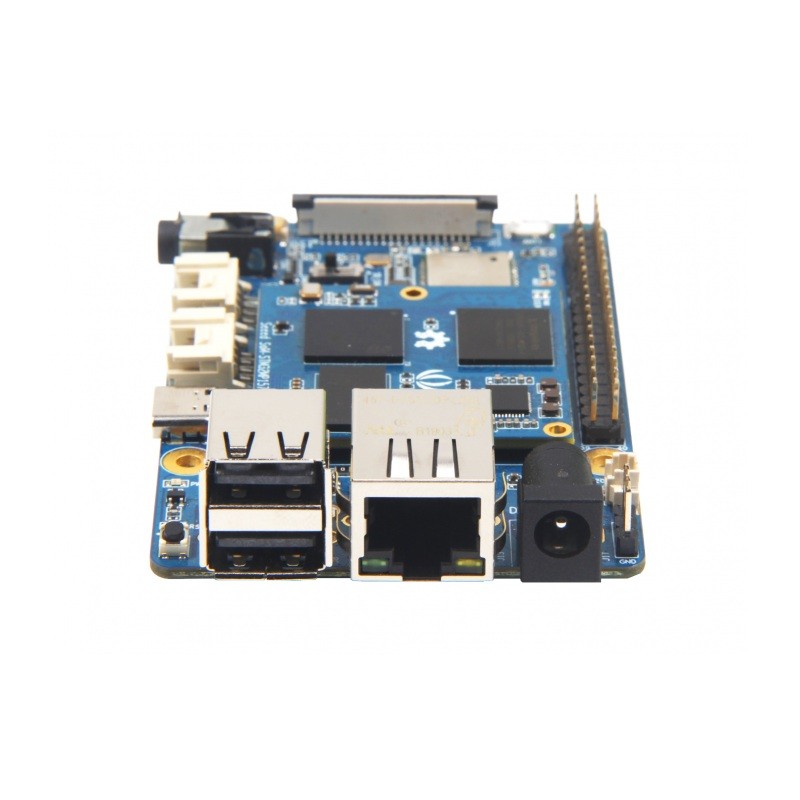

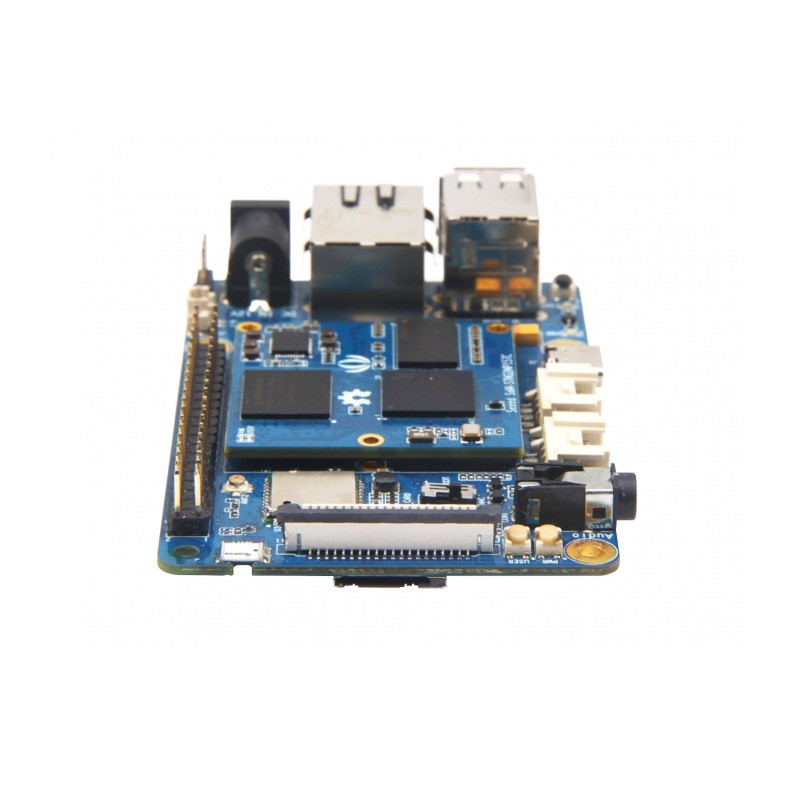

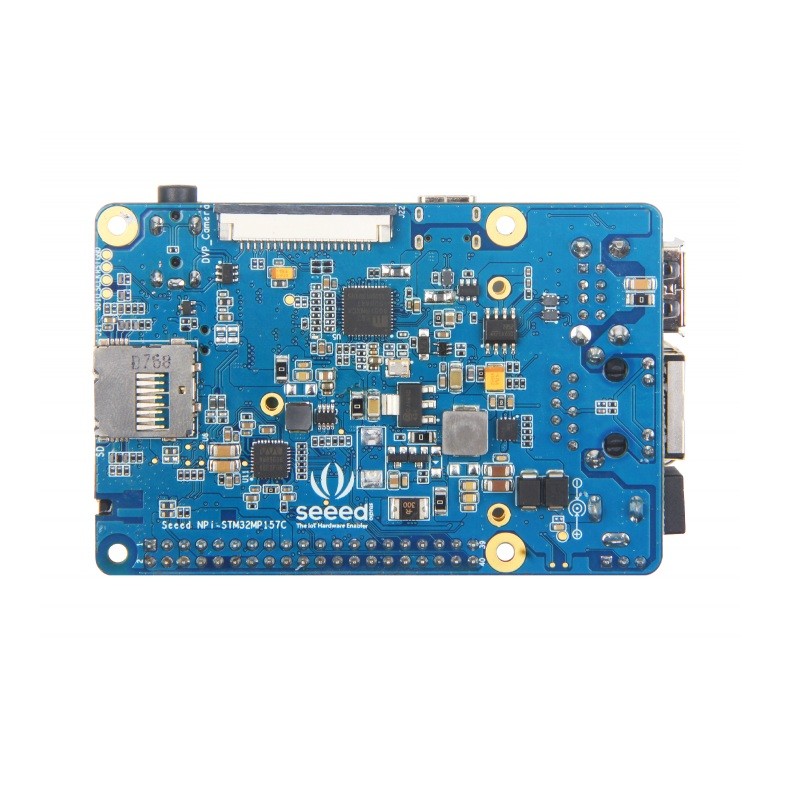

ODYSSEY STM32MP157C Raspberry Pi 40-Pin Compatible with SoM

The ODYSSEY STM32MP157C is a single board computer that based on STM32MP157C, a dual-core Arm-Cortex-A7 core processor operating at 650Mhz. The processor also integrates an Arm Cortex-M4 coprocessor, which makes it suitable for real-time tasks. The ODYSSEY STM32MP157C is created in a form of SoM(system on module) plus a Carrier board. The SoM has consisted of the MPU, PMIC, RAM and the carrier board is in Raspberry Pi form factor.

The carrier board includes all the necessary peripherals including Gigabytes Ethernet, WiFi/BLE, DC PowerUSB Hosts, USB-C, MIPI-DSI, DVP for the camera, audio, etc. With this board, customers can fast evaluate the SoM and deploy the SoM on their own carrier board easily and quickly.

Pin Diagram

Applications:

1. Industrial (CAN-Ethernet gateways etc)
2. White goods(refrigerators, microwaves, etc)
3. Medical(data loggers etc)
4. High-end wearables(VR device etc)
5. Smart Home Devices

Features:

1. Dual-core Arm-Cortex-A7 core processor with Cortex-M4 integrated
2. SoM(system on module) includes MPU, PMIC, RAM.
3. Raspberry Pi 40-Pin Compatible Carrier Board.
4. Compact size and powerful.
5. Open-source hardware/SDK/API/BSP/OS.

Package Includes:

1 x ODYSSEY STM32MP157C

1 x Mounting Nuts bolts Set
