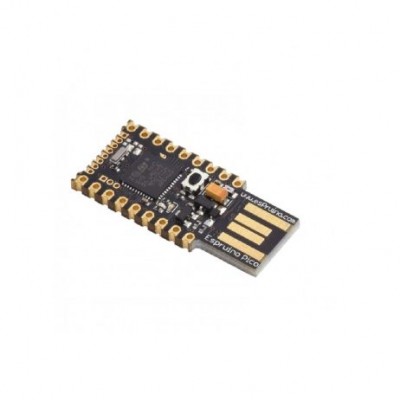

Espruino Pico (unpinned)

Espruino Pico is a tiny microcontroller board that runs JavaScript (it doesnt need to be plugged into a computer), making it easier than ever to control electronics in the real world. You can program it with nothing but a serial terminal program, but theres alsoan IDEthat runs in the Chrome Web browser. Its got a syntax highlighted editor as well as a graphical programming language.

Once you have uploaded code, you can inspect and change variables (including functions) while your program is running. If you make something with an Espruino Pico and need to change it a year later, your original code is still there waiting for you!

Features:

1. 33mm x 15mm (1.3 x 0.6 inch)
2. 22 GPIO pins: 9 Analogs inputs, 21 PWM, 2 Serial, 3 SPI, 3 I2C
3. All GPIO is 5 volt tolerant (Arduino compatible)
4. 2 rows of 9 0.1 pins, with a third 0.05 row of 8 pins on the end
5. On-board USB Type-A connector
6. Two onboard LEDs and one button.
7. Current draw in sleep: < 0.05mA over 2.5 years on a 2500mAh battery
8. On-board FET can be used to drive high-current outputs

Useful link:

To do Software setup, please follow this tutorial.

To explore more, please follow this tutorial.

Package Includes :

1 x Espruino Pico (unpinned)
