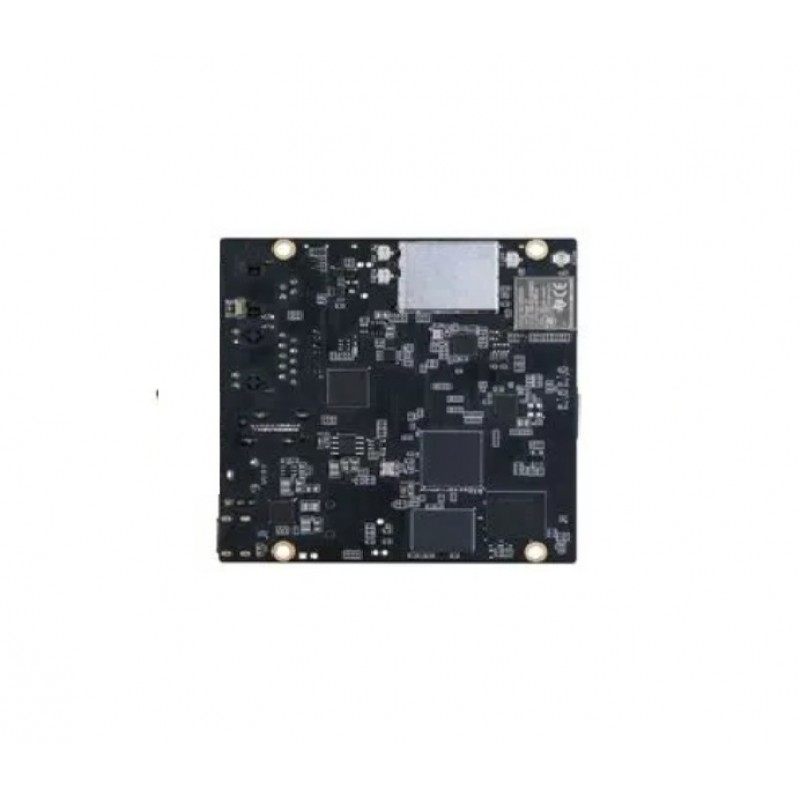

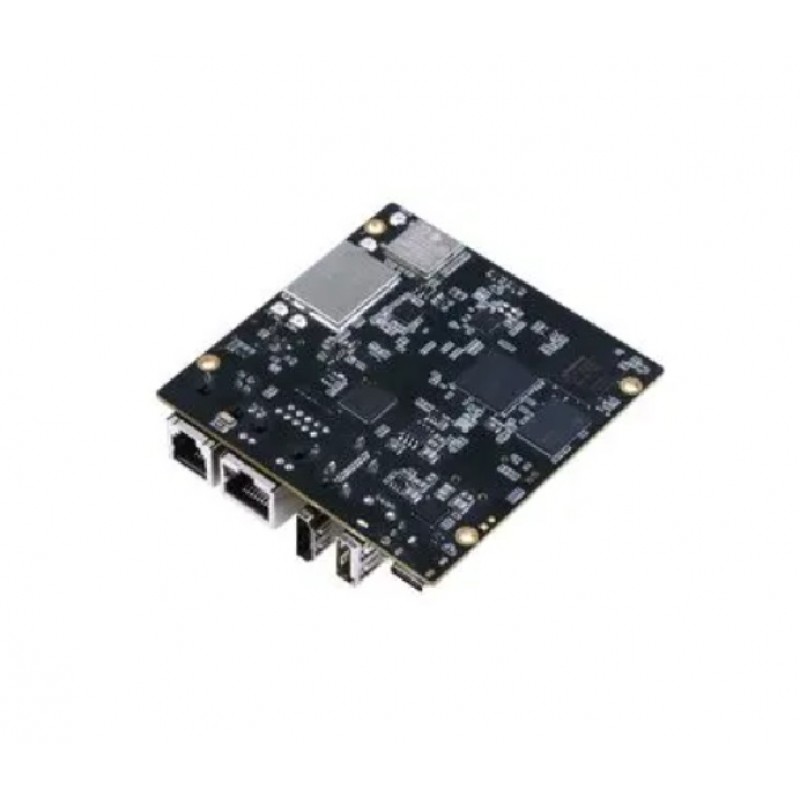

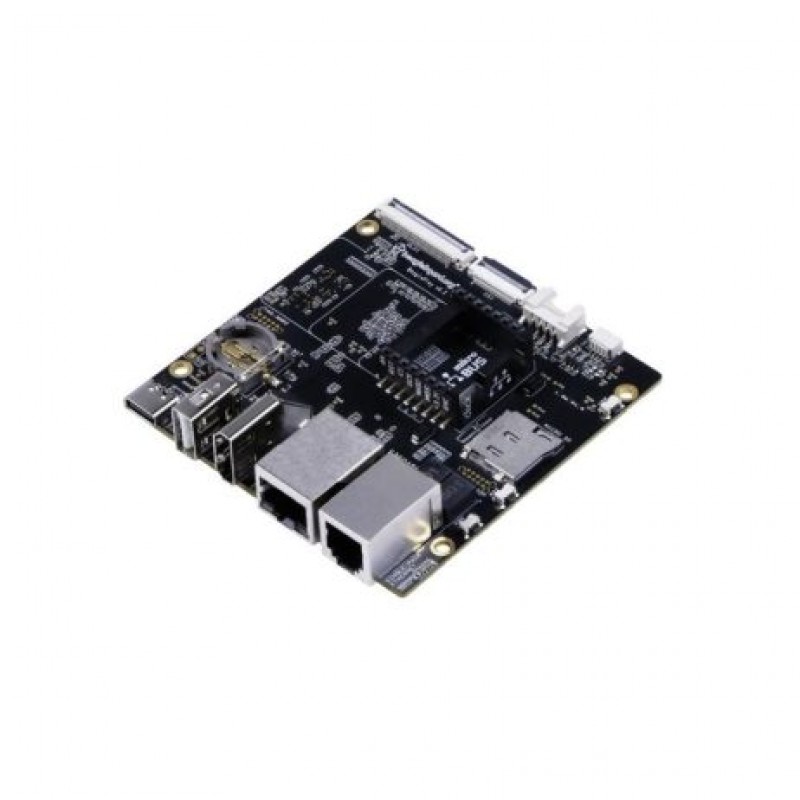

Beagleplay Board, AM6254, WL1807, CC1352P74T0RGZR, ARM Cortex-A53, Cortex-M4

BeaglePlay is an open-source single-board computer designed to simplify the process of adding sensors, actuators, indicators, human interfaces, and connectivity to a reliable embedded system.

It features a powerful 64-bit quad-core processor and innovative connectivity options, including WiFi, Gigabit Ethernet, sub-GHz wireless, and single-pair Ethernet with power-over-data-line. With compatibility with 1,000s of off-the-shelf add-ons and a customized Debian Linux image, BeaglePlay makes expansion and customization easy. It also includes ribbon-cable connections for cameras and touch-screen displays, and a socket for a battery-backed real-time clock, making it ideal for human-machine interface designs. With its competitive price and user-friendly design, BeaglePlay provides a positive development experience for users.

Features:

1. Multicore A53s with R5, M4s and PRUs processor, TI AM6254
2. WiFi/2.4G, MIMO/5G, SISO M2 1216TI WL1807 Wi-Fi module, U.FL x2
3. TI BLE/SubG CC1352P7 M4+M0 with BeagleConnect firmware
4. 2GB(1Gb x 16)-1600MHz 3200Mbps DDR
5. Kingston 16GB eMMC
6. Gigabit ethernet with RJ45 x1
7. Single pair ethernet and power over with RJ11
8. Power input with USB Type-C
9. HDMI Type-A supports up to Full-HD/1080P with 24-bit RGB
10. Support FPC 22pin CSI and FPC 40pin OLDI

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Packages Includes:

1 x Beagleplay Board, AM6254, WL1807, CC1352P74T0RGZR, ARM Cortex-A53, Cortex-M4
