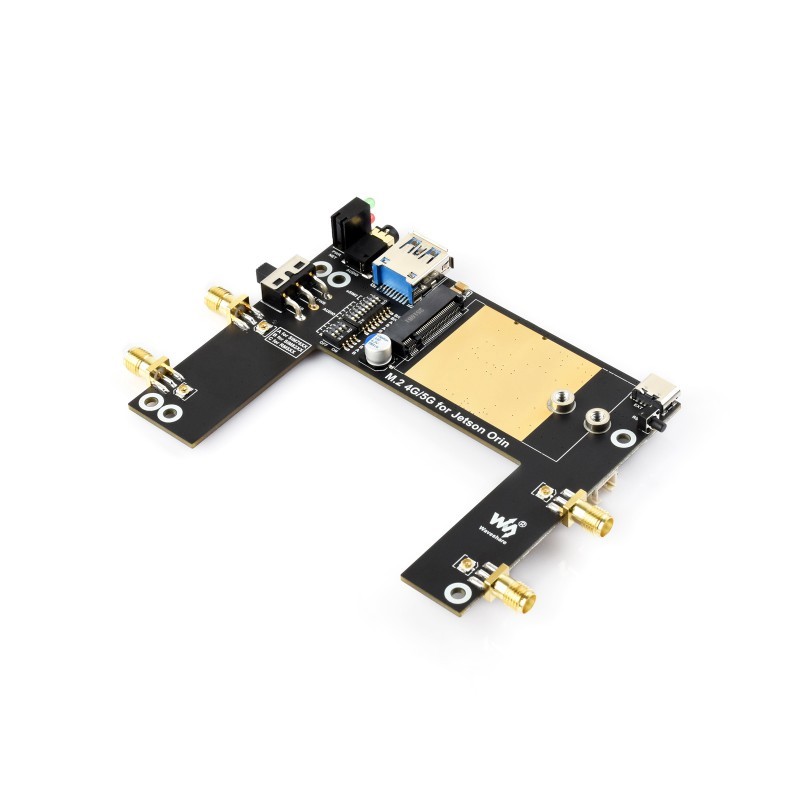

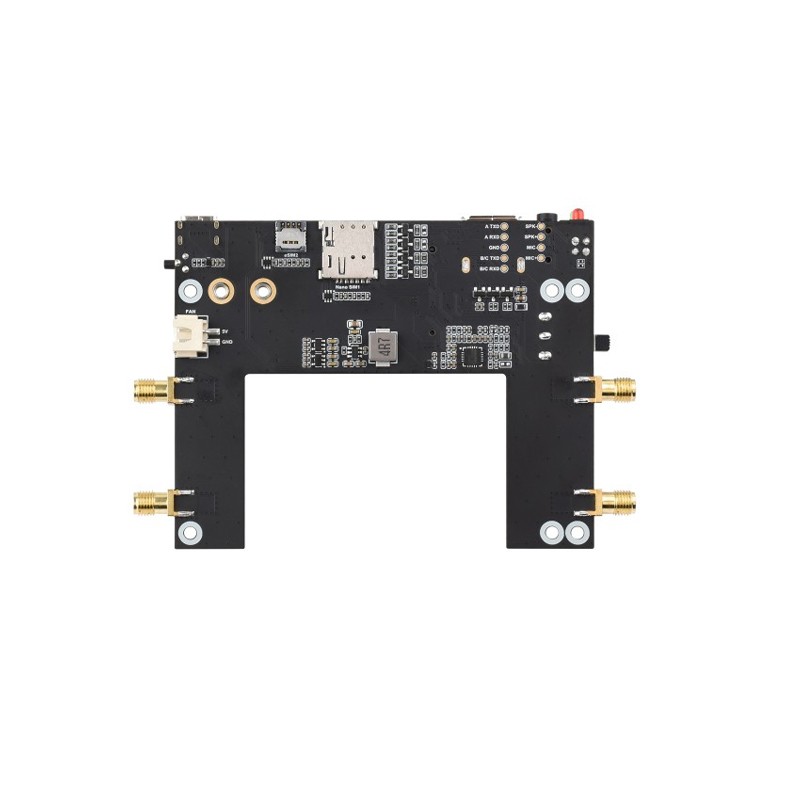

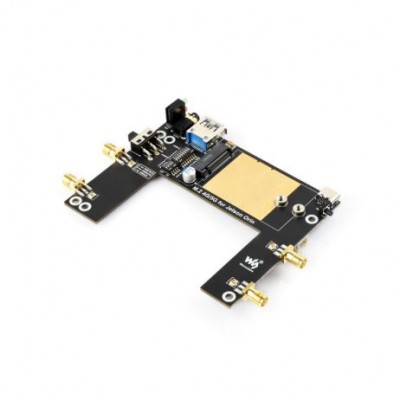

Waveshare 4G Module Expansion Board Designed For Jetson Orin includes SIM7600G-H-M.2 4G Module

The Waveshare 4G Module Expansion Board Designed For Jetson Orin includes SIM7600G-H-M.2 4G Module brings reliable mobile connectivity to Jetson Orin, Raspberry Pi, Jetson Nano, and PCs. Powered by the SIM7600G-H-M.2 module, it supports 4G/3G/2G communication with worldwide coverage and GNSS positioning, including GPS, Beidou, Glonass, Galileo, QZSS, and LBS. A USB 3.1 interface ensures high-speed networking, while onboard audio enables calls and SMS control through AT commands.

With Nano SIM and eSIM options, quad SMA antenna connectors, and flexible power input, its built for robust IoT and edge applications such as tracking, remote monitoring, and cloud connectivity, offering developers a dependable solution for global communication.

Features:

1. Equipped with SIM7600G-H-M.2 global 4G module
2. Supports 4G/3G/2G communication worldwide
3. Multi-system GNSS: GPS, Beidou, Glonass, Galileo, QZSS, LBS
4. USB 3.1 interface, backward compatible with USB 2.0
5. Onboard audio codec for calls and SMS via AT commands
6. Compatible with Jetson Orin, Raspberry Pi, PC, and more
7. Quad SMA antenna connectors for stable signal reception

Package Includes:

1 x Jetson Orin M.2 4G / 5G expansion board

1 x SIM7600G-H-M.2

2 x 4G antenna

6 x SMA protective cap

1 x IPEX1 to SMA adapter cable ~10cm

1 x IPEX1 to IPEX4 adapter cable ~5cm (2PCS)

1 x Screws pack

1 x GPS External Antenna (C)

1 x Dual plug USB3.0 Type-A cable

1 x Heatsink

1 x USB 3.0 Adapter (C)

1 x Screwdriver
