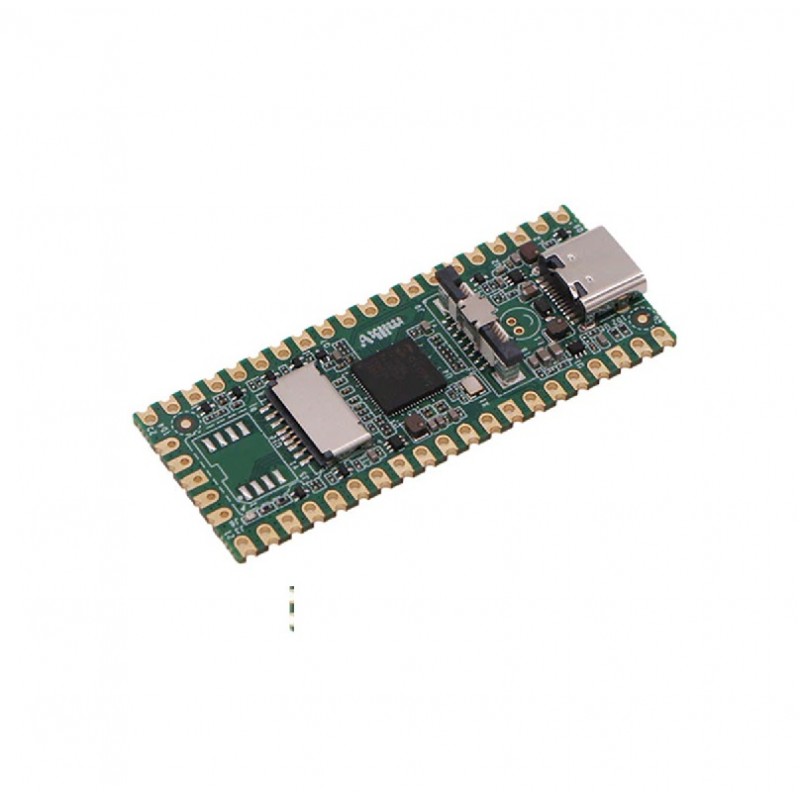

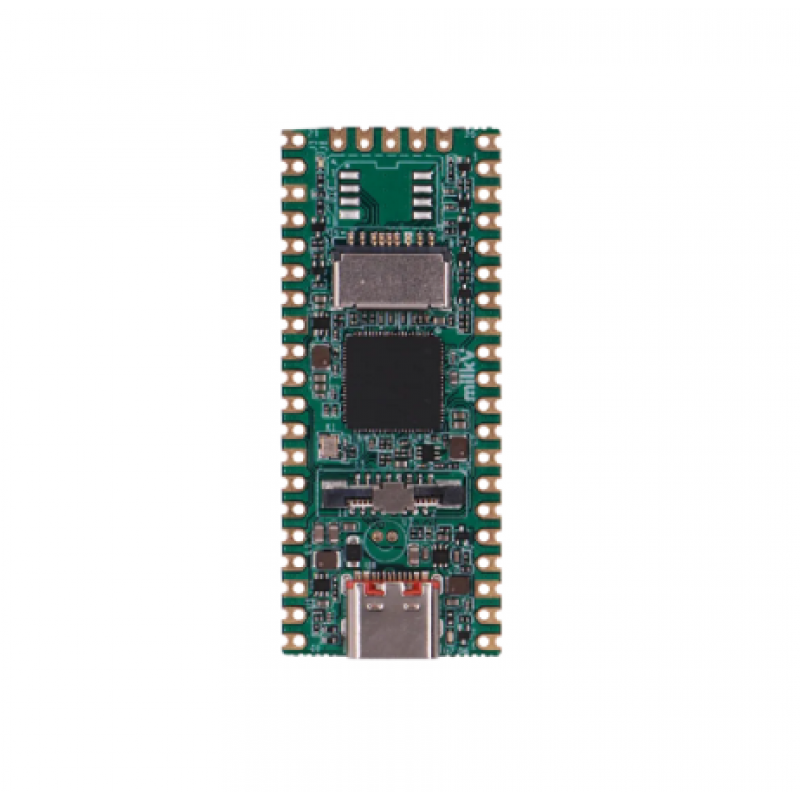

Milk-V Duo compact Embedded Development Board with 256M RAM

The Milk-V Duo 256M is an upgraded version of Duo with a memory boost to 256M, catering to applications demanding larger memory capacities. It features the SG2002 computing series chip, elevating computational power to 1.0TOPS@INT8. It enables seamless switching between RISC-V/ARM architectures and supports simultaneous operation of dual systems. Additionally, it includes an array of rich GPIO interfaces such as SPI, UART, suitable for a wide range of hardware development in edge intelligent monitoring, including IP cameras, smart peephole locks, visual doorbells, and more.

Features:

1. 1GHz and 700MHz RISC-V C906 processors
2. Optional T-Head C906@1GHz or Cortex-A53@1GHz
3. Integrated1TOPS@INT8TPU for smart detection.
4. SIP DRAM 256MB
5. Supports H.264/H.265 video encoding, up to5M@30fps.
6. Compatible with high-definition CMOS sensors.
7. Support Multiple storage devices via SPI-NOR, SPI-NAND, eMMC5.0, 2 x SDIO3.0 interfaces
8. Comprehensive ISP features for image optimization.
9. Partial OpenCV library support with CV hardware acceleration.
10. 16-bit audio codec with built-in mic input and output functions.
11. 2L MIPI DSI 5M@30fps
12. 4L or 2L+2L MIPI CSI 5M@30fps
13. Flexible network configurations with 1 Ethernet PHY.
14. QFN88

Package Includes:

1 x Milk-V Duo compact Embedded Development Board with 256M RAM
