NanoPi NEO Air-LTS 512M RAM 8GB eMMC Pin Headers Not Soldered

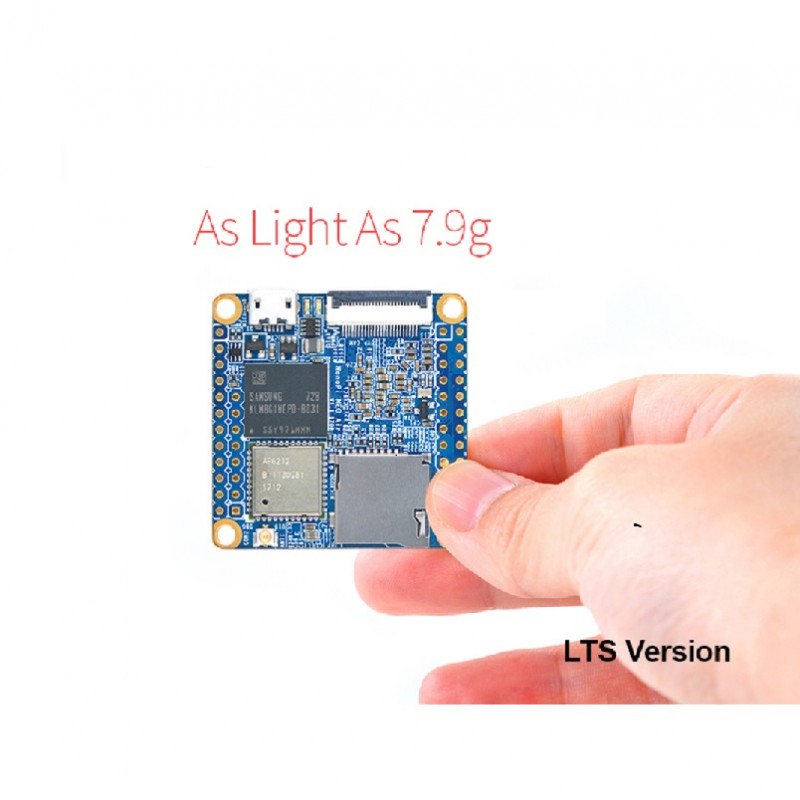

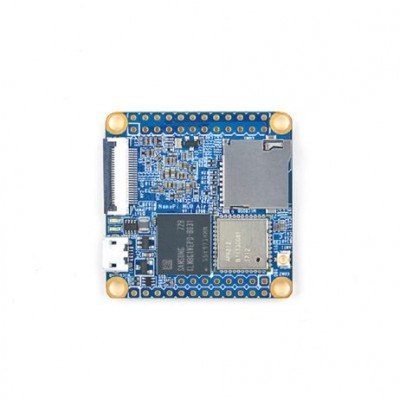

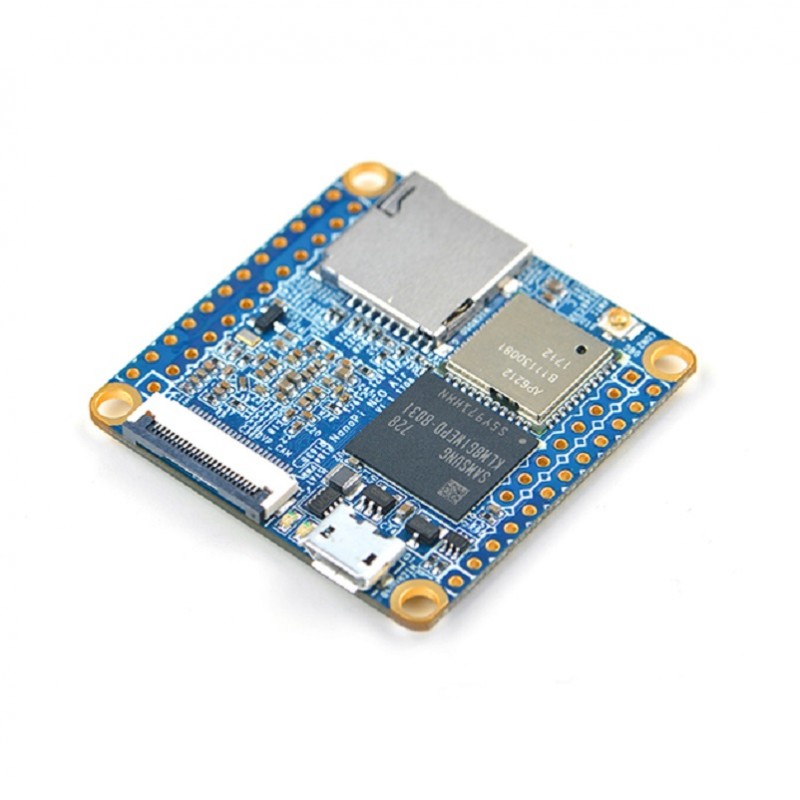

FriendlyARM`s NanoPi NEO Air is a single-board computer with a similar concept as the known Raspberry Pi Zero. The board offers a cheap solution for IoT Projects, Robotic Developers, and DIY hobbyists. The NanoPi NEO size is very compact measuring Only 4040 mm.

Jumping to hardware specs the board is equipped with an Allwinner H3 quad-core ARM Cortex-A7 processor with 512MB RAM and 8GB EMMC flash, suitable for most computing applications. Compared to the previous NanoPi NEO model, this board doesnt have an on-board Ethernet LAN, it was removed and replaced with an on-board WiFi & Bluetooth module. Users who still need USB Host and video output interfaces can use the GIPO2 header pins (shown in the board layout).

Features:

1. Ultra-compact design for space-constrained applications
2. 512MB DDR3 RAM and 8GB eMMC storage
3. WiFi (802.11 b/g/n) and Bluetooth 4.0 connectivity
4. MicroSD card slot for storage expansion
5. Camera interface (CSI) support for imaging projects
6. USB 2.0 OTG port and onboard USB port
7. Unsoldered pin headers for flexible prototyping and customization
8. Runs multiple operating systems including Debian, Ubuntu Core, and FriendlyCore
9. Ideal for IoT, wireless projects, and embedded system development

Package Includes:

1 x NanoPi NEO Air-LTS 512M RAM 8GB eMMC Pin Headers Not Soldered
