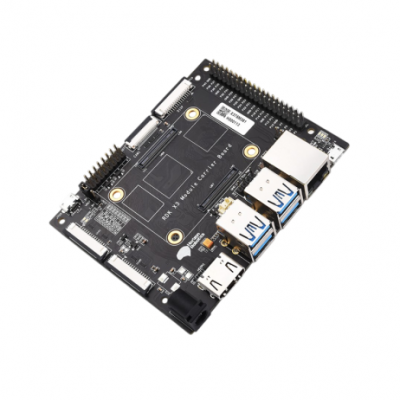

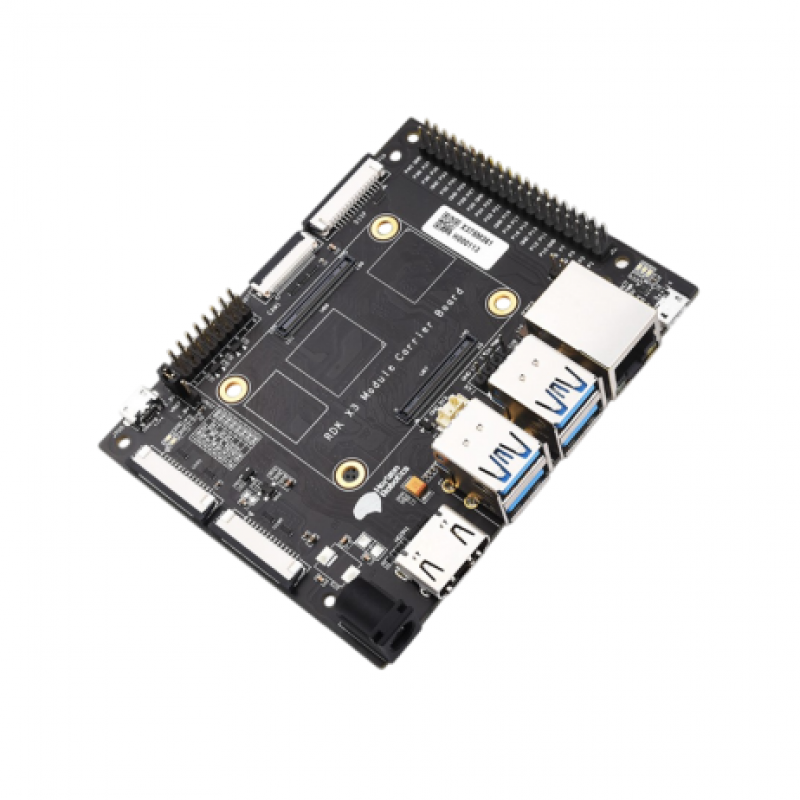

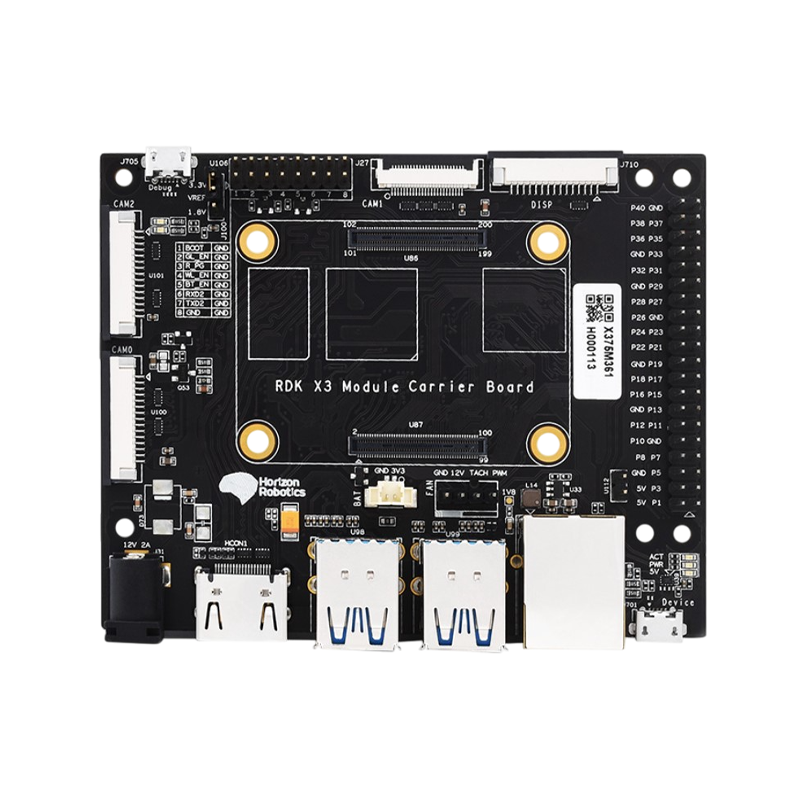

D-Robotics RDK X3 MD Carrier Board For RDK X3 Module

The D-Robotics RDK X3 MD Carrier Board is a dedicated companion board for the RDK X3 MD Module, designed to simplify development, prototyping, and functional verification. It offers a wide range of connectivity options, including Gigabit Ethernet, HDMI (supporting 4K @30fps), multiple USB 3.0 ports, MIPI CSI/DSI interfaces, and a 40-pin GPIO header compatible with Raspberry Pi. With onboard RTC, TF card slot, debug ports, and a 12V fan header, this carrier board ensures flexible expansion for AI, robotics, and IoT applications. Compact at 99 80mm, its suitable for all variants of the RDK X3 Module, making it a powerful base for developers to build and test real-world projects with seamless hardware integration.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Compatible with all variants of RDK X3 MD Module
2. Gigabit Ethernet port for fast networking
3. 4 USB 3.0 host ports for multiple peripherals
4. HDMI port with 4K @30fps video output
5. MIPI CSI interfaces (2-lane & 4-lane) for camera support
6. MIPI DSI display interface for high-resolution output
7. 40-pin GPIO header, Raspberry Pi compatible
8. Onboard RTC and TF card slot for extended functionality

Package Includes:

1 x D-Robotics RDK X3 MD Carrier Board For RDK X3 Module
