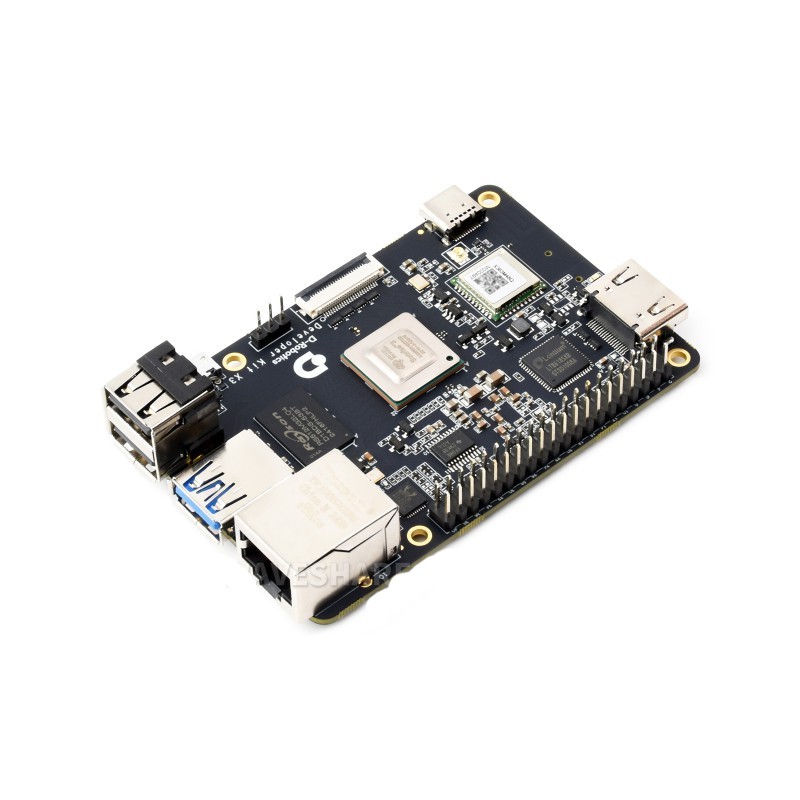

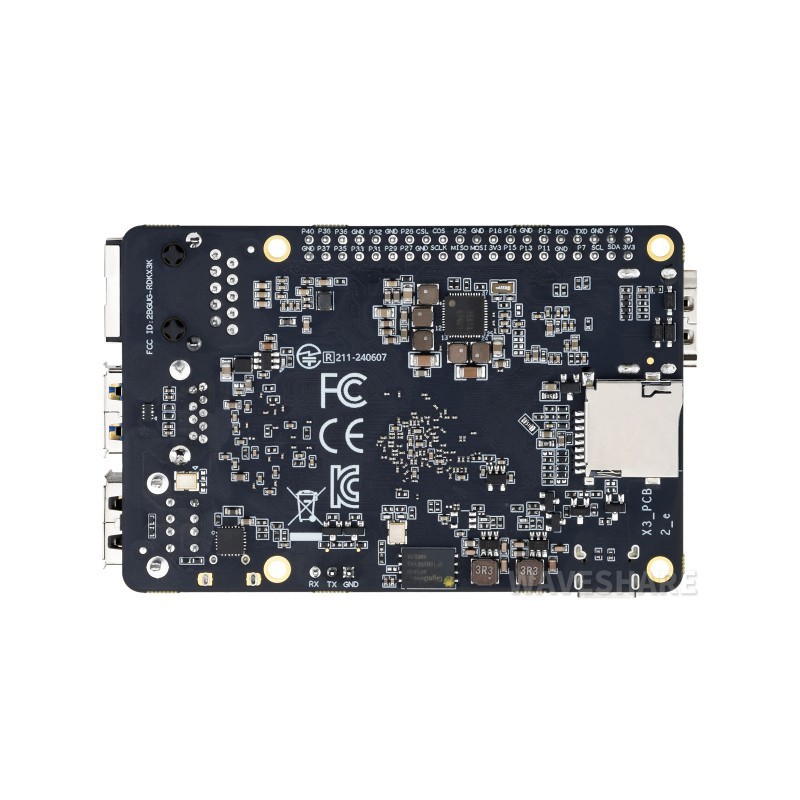

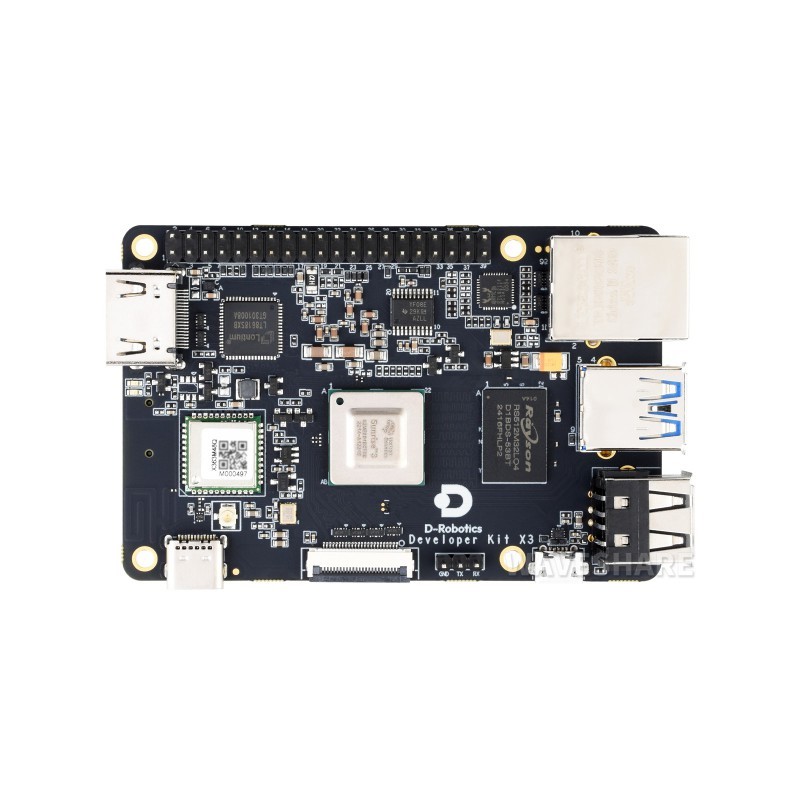

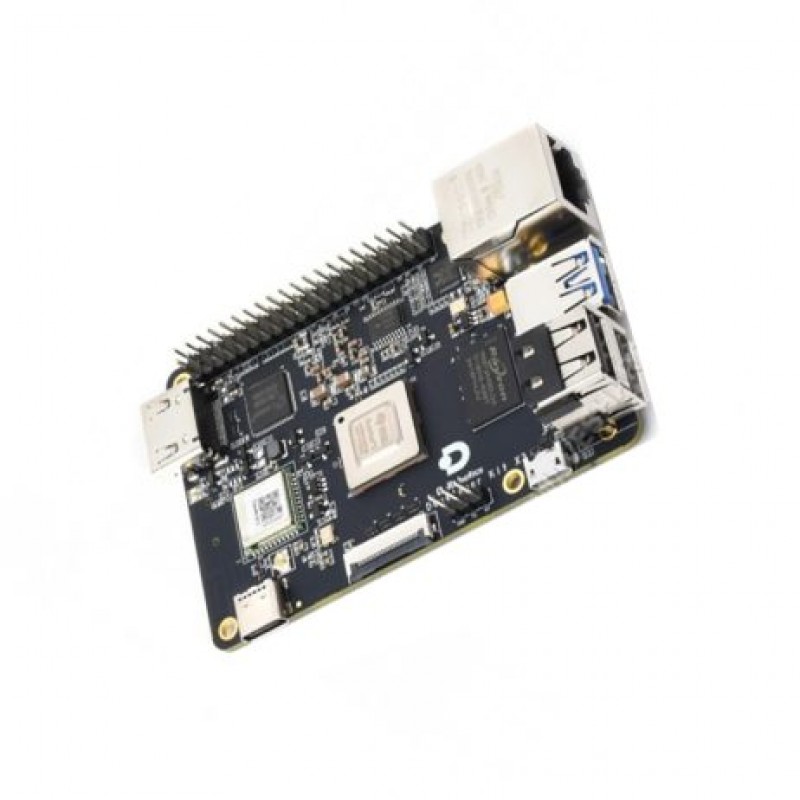

D-Robotics RDK X3 Development Board with 2GB RAM

The D-Robotics RDK X3 Development Board is a powerful platform designed for AI and robotic applications, featuring a quad-core ARM Cortex-A53 processor running at 1.5 GHz. Equipped with 2GB LPDDR4 RAM, it delivers efficient multitasking and smooth edge AI inference with 5Tops performance via its dual-core Bernoulli processing unit. This compact board supports Ubuntu 20.04/22.04, enabling rapid software development.

With versatile connectivity including USB 3.0, Gigabit Ethernet, Wi-Fi 2.4/5GHz, and Bluetooth 4.2, its perfect for IoT and robotics projects. The board also offers HDMI output, MIPI CSI camera support, and extensive GPIO options for sensor integration. Its robust design supports operating temperatures from -25C to 95C. Available as a standalone board or with accessory kits, the RDK X3 accelerates intelligent product and robot solution development.

Pinout Diagram

RDK Platform Architecture

Features:

1. Quad-core ARM Cortex-A53 1.5GHz CPU
2. 2GB LPDDR4 RAM for efficient processing
3. Dual-core Bernoulli architecture delivering 5Tops AI inference
4. Supports Ubuntu 20.04/22.04 OS
5. USB 3.0, USB 2.0, Gigabit Ethernet, Wi-Fi 2.4/5GHz, Bluetooth 4.2
6. HDMI 1.4 output supporting 1080p60 display
7. MIPI CSI camera interface for visual applications
8. wide operating temperature range (-25C to 95C)

Package Includes:

1 x D-Robotics RDK X3 Development Board with 2GB RAM
