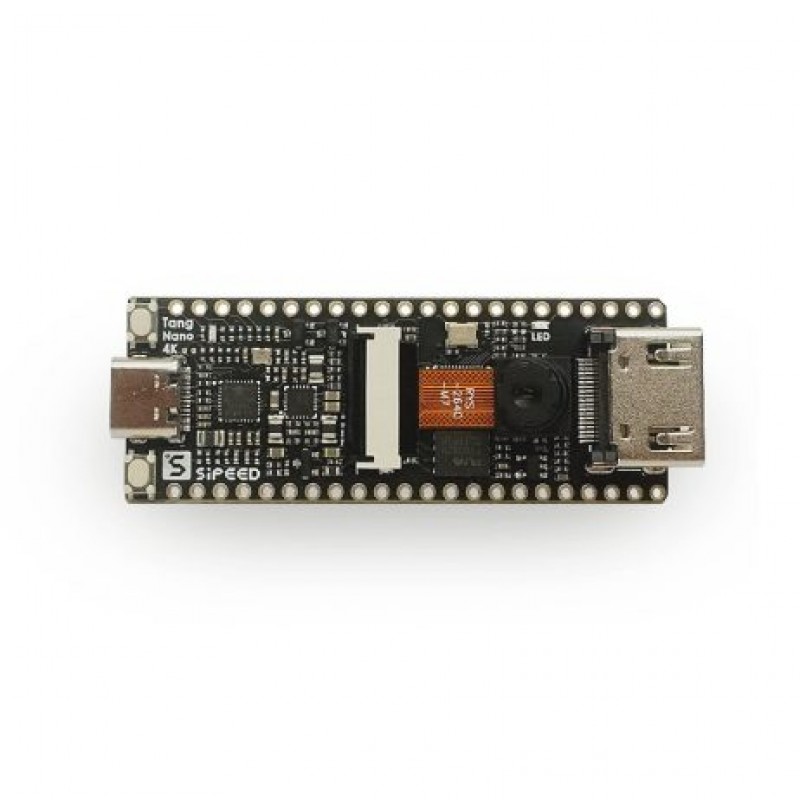

Lichee Tang Nano 4K FPGA GoAI Development Board with OV2640 Camera

The GW1NSR-LV4C onboard the Lichee Tang Nano 4K development board is a system-in-package chip with embedded ARMCortex-M3 hard core processor, 64Mbit PSRAM, 4K Lut logic resources, and onboard 32Mbit Nor Flash.
The Lichee Tang Nano 4K development board has a BL702 chip onboard, which provides JTAG debugging for the GW1NSR. The development board can be directly connected to a computer for development without the need for an external debugger and clock input.

Features:

1. Lichee Tang Nano 4K is a simple development board based on GOWIN Semiconductors Bee series GW1NSR -LV4C
2. The design of the development board is small and exquisite, and all the resources of the chip are drawn out
3. On-board JTAG USB download circuit, DVP, HDMI socket and its circuit, etc.

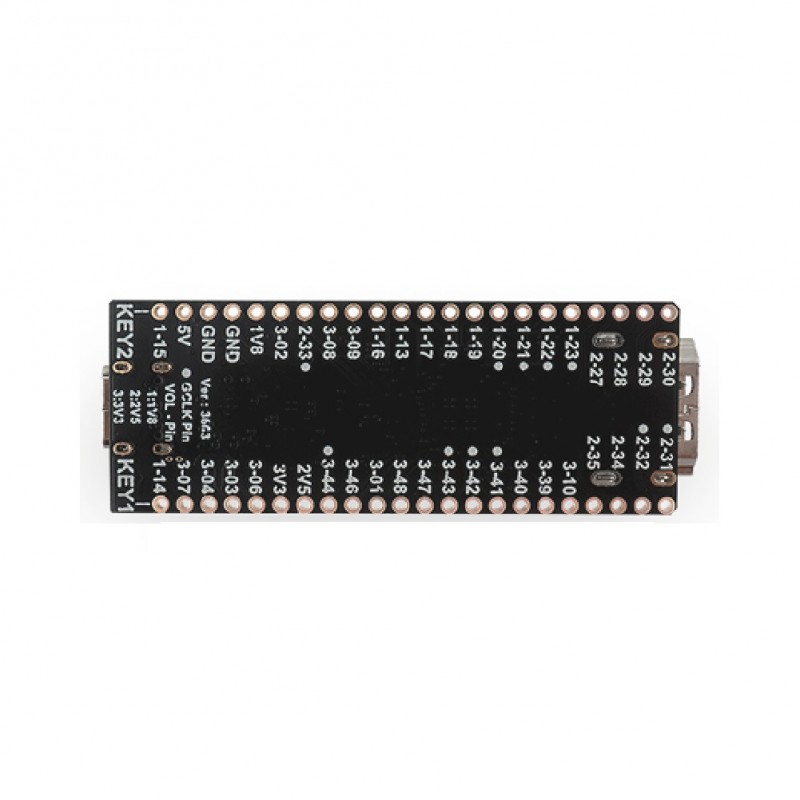

4. All IO resources are exported, which is convenient for developers to expand and use
5. Ideal for design and experimentation with small digital logic

Specifications:

1. Type: Voltage Regulator
2. hard core processor: Cortex-M3
3. logical unit: 4608
4. register: 3456
5. Block SRAM (bits): 180K
6. User Flash (bits): 2
7. I/O Bank Total: 4

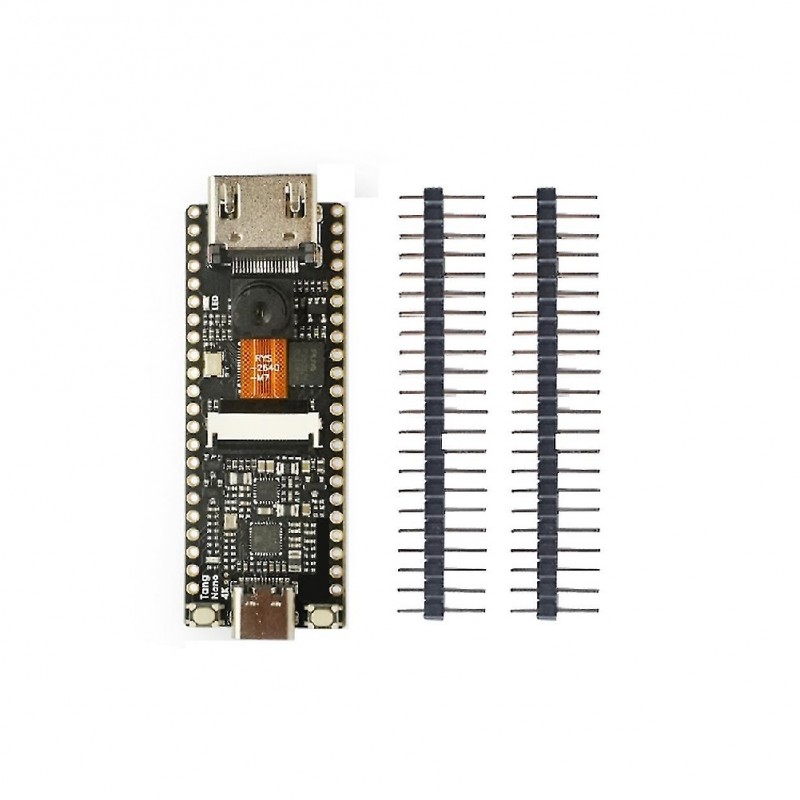

Package Includes:

1 x Development board
1 x OV2640 Camera
2 x Pin header
