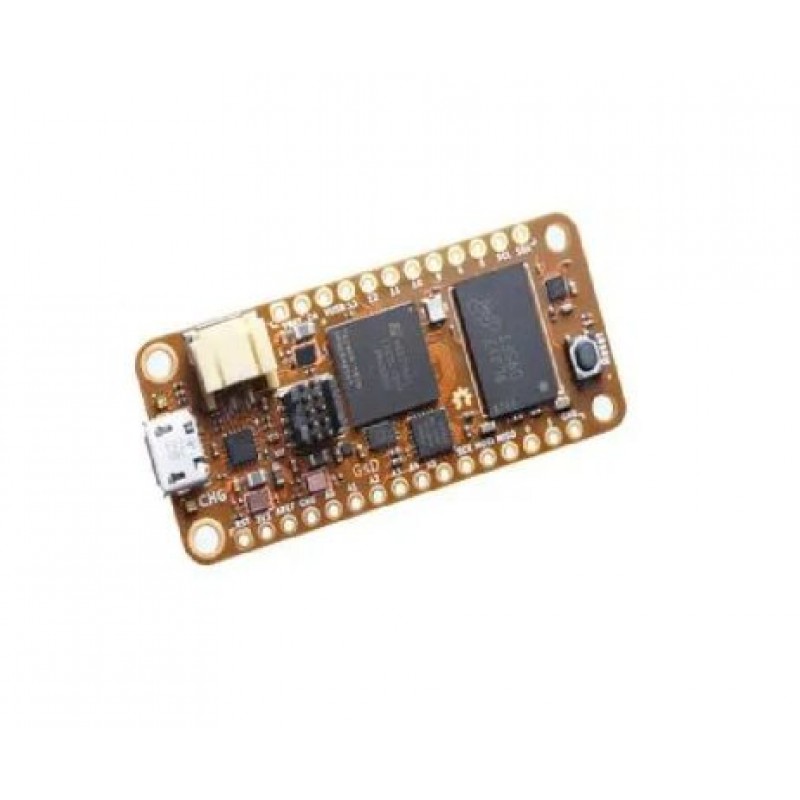

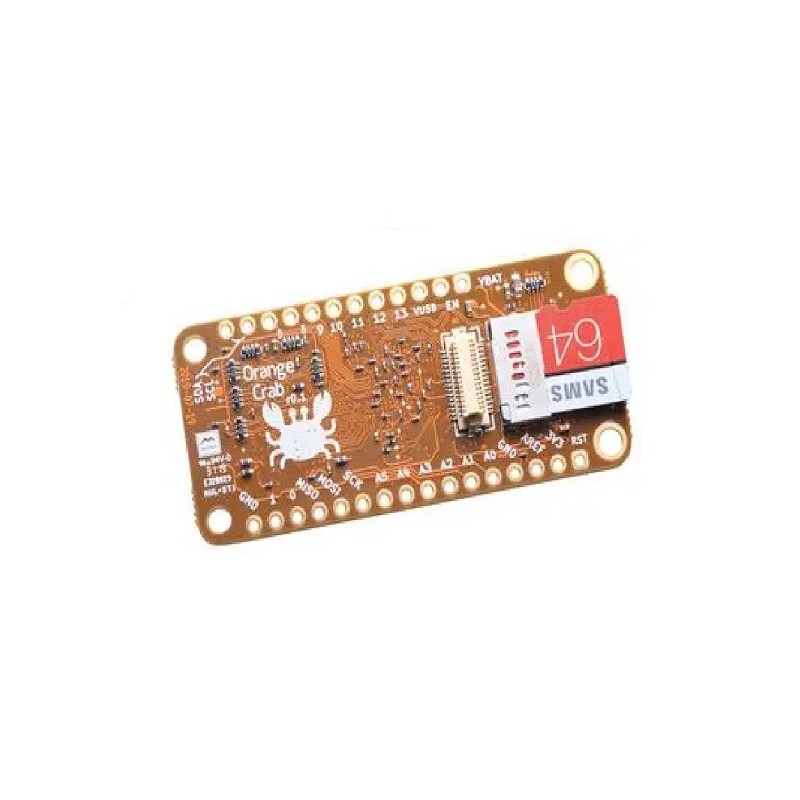

GROUPGETS LLC ORANGECRAB-R0D2-25 Development Board, Orange Crab, LFE5U-25F-8MG285C, ECP5 Family FPGA

GROUPGETS LLC ORANGECRAB-R0D2-25 Development Board is a compact FPGA development board featuring the Lattice ECP5 FPGA and designed for RISC-V experimentation and softcore SoCs. It follows the Adafruit Feather specification, offering a direct USB connection to the FPGA for easy programming. GROUPGETS LLC ORANGECRAB-R0D2-25 Development Board includes 128Mbit or 512Mbit QSPI Flash, DDR3L memory, and a MicroSD socket for storage. It has a LiPo battery connector with a charger, a 48MHz oscillator, and user I/O options such as a button, RGB LED, and 20 I/O pins. With its small size (22.86mm x 50.8mm) and high-efficiency power supply, its perfect for portable FPGA projects.

Features:

1. Compact Size: Small form factor.
2. Lattice ECP5 FPGA: Available in 25F and 85F configurations.
3. Onboard DDR3L Memory: Provides efficient data handling.
4. Preloaded USB Bootloader: Simplifies setup and programming.
5. Direct USB Connection: Full-speed USB (12Mbit) to FPGA via USB-C.
6. 128Mbit or 512Mbit QSPI Flash: For program storage.

Package Includes:

1 x GROUPGETS LLC ORANGECRAB-R0D2-25 Development Board, Orange Crab, LFE5U-25F-8MG285C, ECP5 Family FPGA
