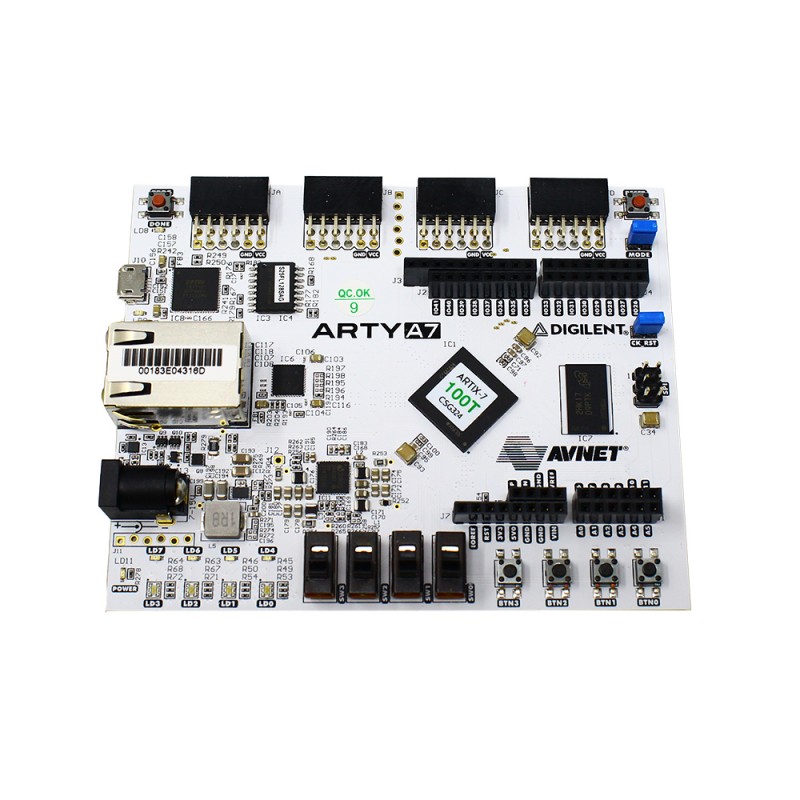

Digilent Arty A7-100T: Artix-7 FPGA Development Board

Digilent Arty A7-100T is a high-performance Artix-7 FPGA development board designed for versatility and flexibility in FPGA/SoC projects. It comes with Arduino headers, multiple Pmod ports, and a wide range of connectivity options, making it one of the most adaptable FPGA boards in the Digilent lineup.

The Digilent Arty A7-100T is built around the powerful Xilinx Artix-7 FPGA, delivering excellent performance-per-watt, high-speed transceiver line rates, DSP processing, and AMS integration. With support for the MicroBlaze Soft Processor Core, this board allows developers to create embedded applications with ease, utilizing a variety of peripherals, interfaces, and memory options.

Supported by Xilinx Vivado Design Suite (including the free WebPACK edition), the Digilent Arty A7-100T also integrates seamlessly with the Vitis Core Development Kit and Xilinx Software Development Kit. It offers higher logic capacity with the XC7A100TCSG324-1 device compared to its smaller sibling, the Arty A7-35T, making it ideal for advanced FPGA applications.

The Arty A7 can be programmed with Digilents Adept software. Digilent Adept is a unique and powerful solution that allows you to communicate with Digilent system boards and a wide assortment of logic devices. Find out more about Adept here.

Features:

1. FPGA Features
   1. Internal clock speeds exceeding 450MHz
   2. On-chip analog-to-digital converter (XADC)
   3. Programmable over JTAG and Quad-SPI Flash
2. System Features
   1. 256MB DDR3L with a 16-bit bus @ 333 MHz (667 MT/s)
   2. 16MB Quad-SPI Flash
      1. Due to supply chain constraints, either the S25FL127S or S25FL128S Flash Memory may be loaded on your board. These parts are not functionally equivalent, but flash programming through Vivado and the QSPI boot mode are not affected. More information can be found in the Arty A7 Reference Manual, available in the Support tab.
   3. USB-JTAG Programming circuitry (Micro B USB cable required)
   4. Powered from USB or any 7V-15V source
3. System Connectivity
   1. 10/100 Mbps Ethernet
   2. USB-UART Bridge
4. Interaction and Sensory Devices
   1. 4 Switches
   2. 4 Buttons
   3. 1 Reset Button
   4. 4 LEDs
   5. 4 RGB LEDs
5. Expansion Connectors
   1. 4 Pmod connectors
   2. Arduino/chipKIT Shield connector

1. Product Compliance:
   1. HTC:8471500150
   2. ECCN:EAR99

Package Includes:

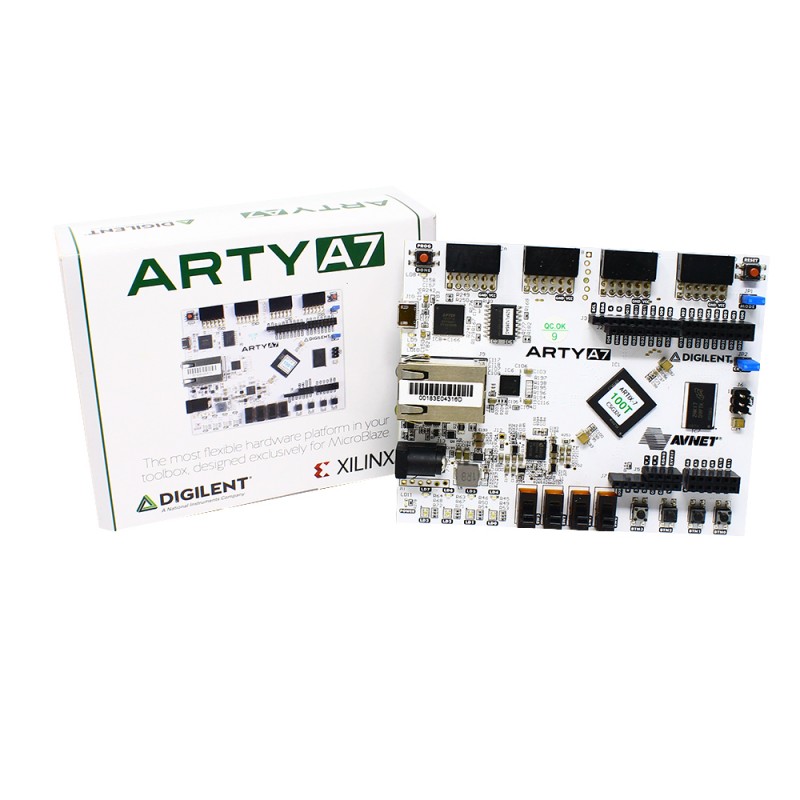

1 x Arty A7-100T Artix-7 Development Board
