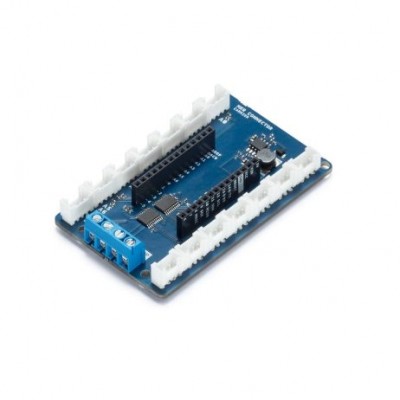

Official Arduino MKR Connector Carrier (Grove Compatible) ASX00007

Do you have several components to connect to your project and would rather use connectors instead of soldering? The Official Arduino MKR CONNECTOR CARRIER provides Seeed Studios Grove connectors to your MKR board.

The MKR CONNECTOR CARRIER shield is an essential tool for rapid prototyping activity. It allows you to connect easily and quickly sensors with Grove connectors. This shield can allow you to build applications with different IoT connectivities by simply changing the MKR board and with almost no changes to the code.

Use your MKR board on Arduinos IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.

Features:

1. INTERFACE: 14 Grove Connectors
2. Analog Inputs: 5 V
   1. A0,A1,A2,A3,A4 single grove Analog input
   2. A5, A6 double grove Analog input
3. Digital Input/Output 5 V
   1. D0,D1,D2,D3,D4 single grove I/O (detailed info)
   2. D5,D6 double grove I/O (detailed info)
4. Other Connectors One 5V I2C, One 5V UART
5. INPUT VOLTAGE (SCREW TERMINAL BLOCK): 7V 16V
6. CIRCUIT OPERATING VOLTAGE 3.3V
7. COMPATIBILITY MKR

Package Includes:

1 x Official Arduino MKR Connector Carrier (Grove Compatible) ASX00007
