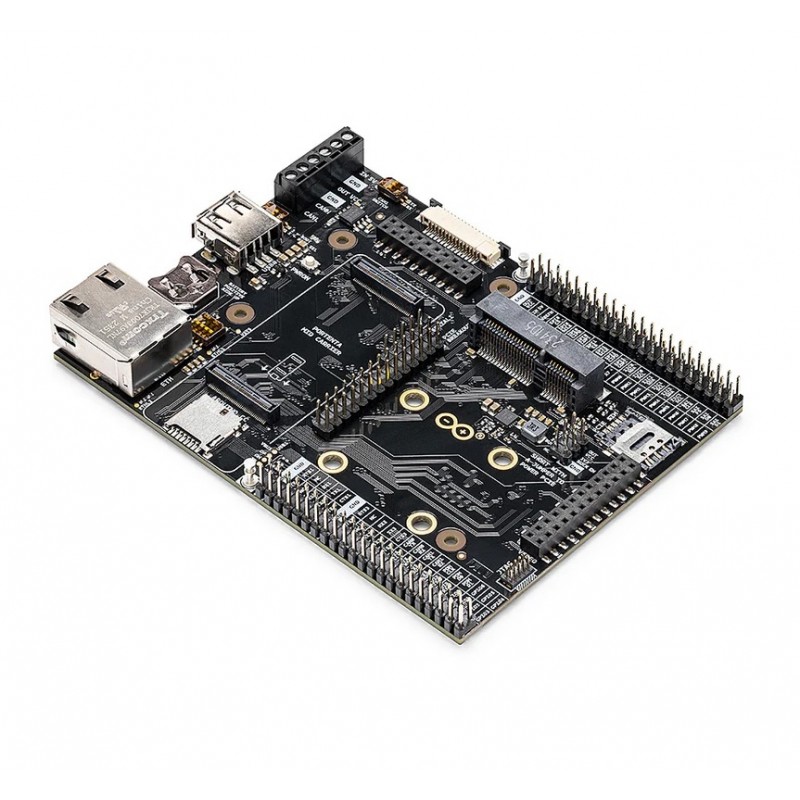

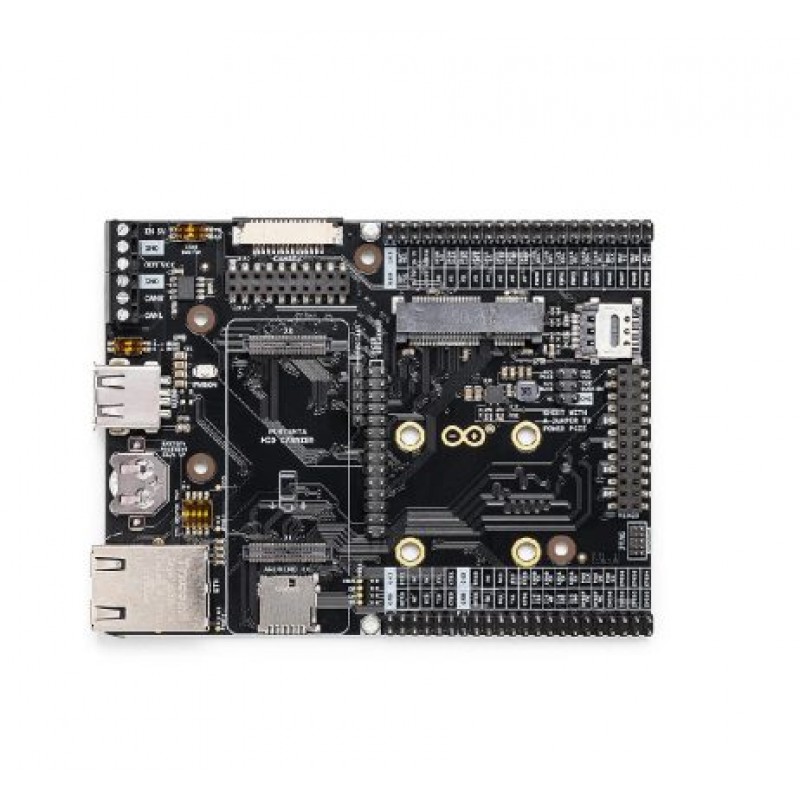

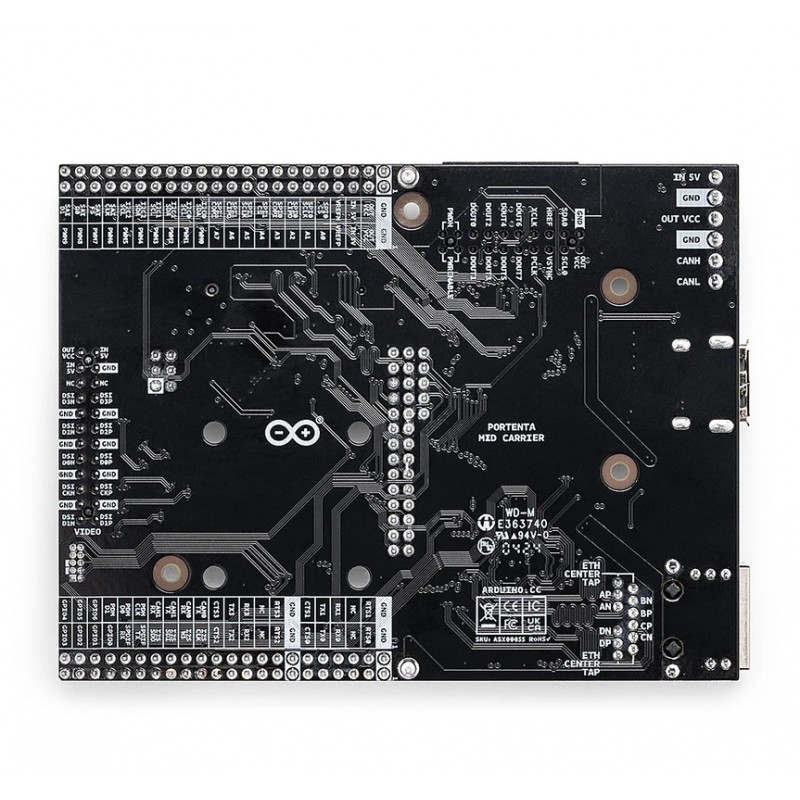

Official Arduino Portenta Mid Carrier Board Smart IoT Expansion (ASX00055)

The Official Arduino Portenta Mid Carrier Board Smart IoT Expansion (ASX00055) is a versatile expansion solution designed to extend the capabilities of Portenta family boards. It provides a wide range of interfaces, making it easier to connect peripherals, sensors, and external devices for advanced IoT and embedded applications.

With the Official Arduino Portenta Mid Carrier Board Smart IoT Expansion (ASX00055), developers gain access to additional connectivity options, including Ethernet, CAN bus, microSD, and high-speed camera interfaces. This makes it ideal for building robust IoT systems, industrial monitoring solutions, and AI-enabled edge devices.

Whether youre working on smart city infrastructure, industrial automation, or advanced prototyping, the Official Arduino Portenta Mid Carrier Board Smart IoT Expansion (ASX00055) provides a powerful and flexible foundation. Backed by the trusted Arduino ecosystem, it ensures reliability and ease of integration for professional IoT projects.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Scalable Prototyping Tool: Ideal for expanding Portenta applications with flexibility.
2. High-Density Signal Access: Quick access to all high-density signals of Portenta boards.
3. Multiple Connectivity Options: Expand projects with Ethernet and mini PCIe connectors.
4. MicroSD Card Slot: Boot from an external source for enhanced functionality.
5. CAN Lines for Actuators: Easily interact with actuators using onboard CAN lines (with transceiver support).
6. Camera Connectors: Develop industrial machine vision solutions with integrated camera connectors.
7. Reference Design: Simple design to facilitate the development of proprietary hardware features.

Specification:

1. SOM Socket:Portenta high density connectors2
2. USB : 1x USB Type-A connector
3. Ethernet: Gigabit Ethernet on RJ45
4. Memory: 1x microSD slot
5. mPCIe: 1x mini PCIe connector
6. Camera: 1x MIPI camera connector and 1x Arducam camera connector.
7. CAN Interfaces: 1x CAN and 1x FD-CAN
8. Battery: 1x RTC LiPo battery slot
9. Display : 1x Official Arduino GIGA Display Shield connector
10. Debugging: Onboard JTAG pins
11. Headers: 2x 44-pin headers
12. Dimensions: 114 mm x 86.5 mm.
13. Interfaces: UART, IC, SPI, PDM, SAI, GPIO, PWM, and Analog I/O.

Package Includes:

1 x Official Arduino Portenta Smart IoT Mid Carrier Board ASX00055
