UNO R3 Beginners Kit for Arduino Uno - Secondary Kit

Uno R3 Beginners Kit for Arduino Uno- Secondary Kit

This is a very good kit for the starter to study Arduino programming at High-quality components. You are able to learn and do many experiment, such as lighting up the LED, then get the LED to be an output display. Electronics component High-quality Arduino UNO R3 Compatible. 100% compatible with Arduino UNO R3 MEGA 2560 NANO Arduino kit.

Features:-

• All-in-one kit, a great starter kit for learning coding.
• Great for Starting with Arduino Programming
• A variety of components are included in this pack to try out different projects.
• The kit comes with quality components assured.

Specifications:-

• Model Type: UNO Rev R3
• Microcontroller Chip: ATmega328
• Input Voltage(Recommended): 7-12V
• Input Voltage (limit): 6-20V
• Operating Voltage: 5
• Analog I/O Pins: 6
• Digital I/O Pins: 14 (of which 6 provide PWM output)
• PWM Digital I/O Pins: 6
• DC Current per I/O Pin: DC Current per I/O Pin: 40 mA; DC Current for 3.3V Pin: 50 mA
• Clock Speed: 16 MHz
• EEPROM: 1 KB (ATmega328)
• Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
• PWM Output Pins: 6
• SRAM: 2 KB (ATmega328)
• Power Supply Option: DC Jack or USB
• On-Board LEDs: Yes
• Operating Temperature (°C): -40 to +90
• Dimensions in mm (LxWxH): 75 x 54 x 12
• Weight (gm): 26

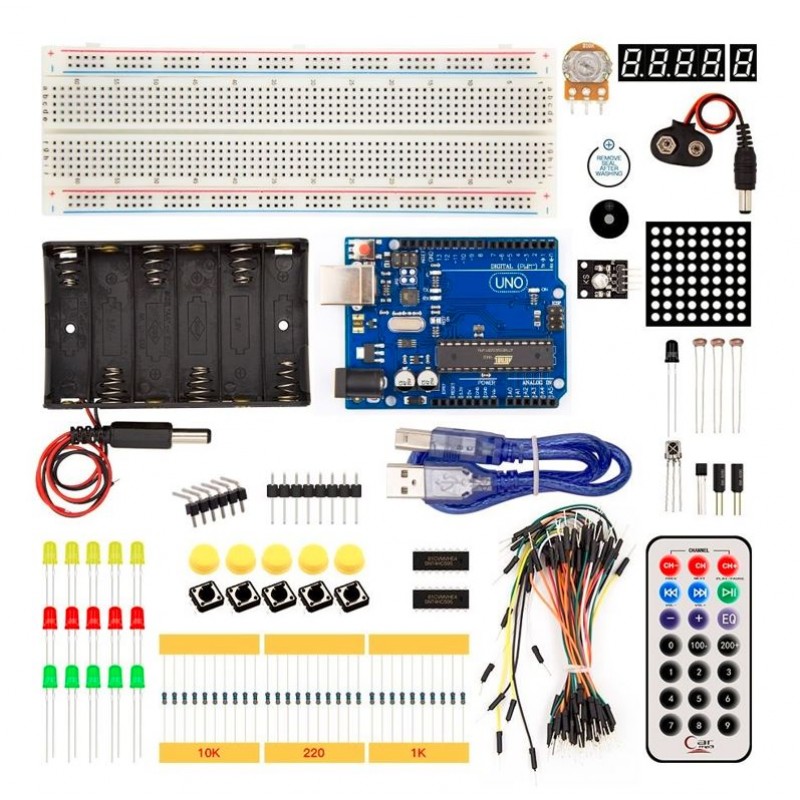

Package Includes:-

1 x Arduino Uno R3 board with USB Cable

1 x Active Buzzer

1 x Passive Buzzer

10 x Resistor 220 OHM

10 x Resistor 10K OHM

10 x Resistor 1K OHM

1 x Breadboard 830 pt

1 x 10K Potentiometer

2 x 74HC595N Shift Register IC

1 x Jumper wire (Male to Male) - 65 pcs

1 x Infrared Receiving Head / IR Sensor

2 x Tilt switch / Roll Ball Switch

5 x Red Led

5 x Green Led

5 x Yellow Led

1 x LM35DZ Sensor

1 x Flame Sensor

3 x LDR Sensor

5 x Button Switch / Push Button With Cap

5 x Push Button Cap

1 x IR Remote Control

1 x 1-Digit 7 Segment Display

1 x 4-Digit 7 Segment Display

1 x 8*8 Dot-Matrix Tube

1 x RGB 3-Color Led Module

1 x 6-Cell Holder With DC Jack

1 x Battery Snapper With DC Jack

1 x Instruction CD
