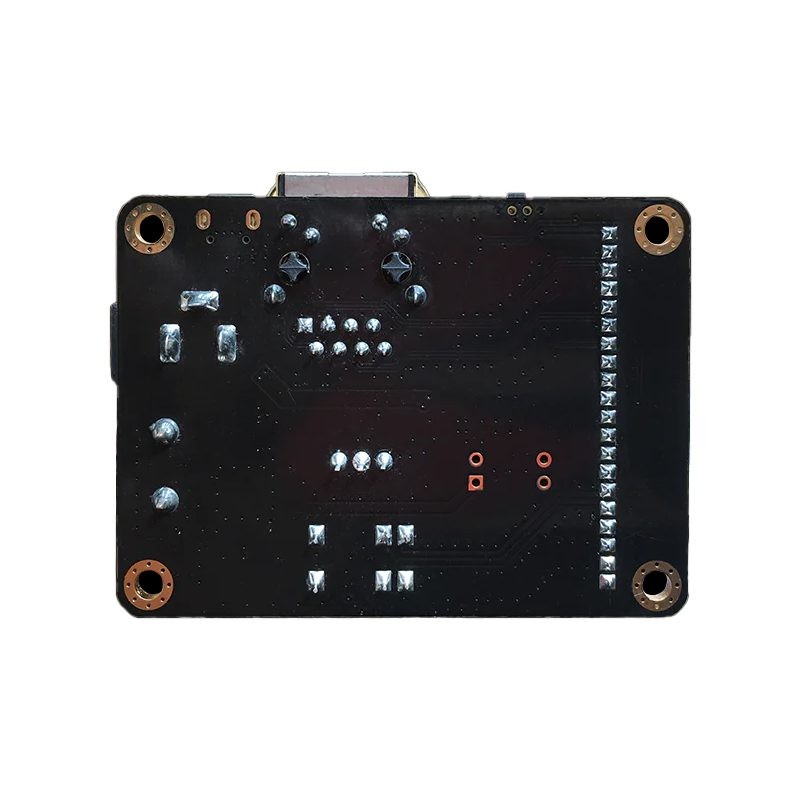

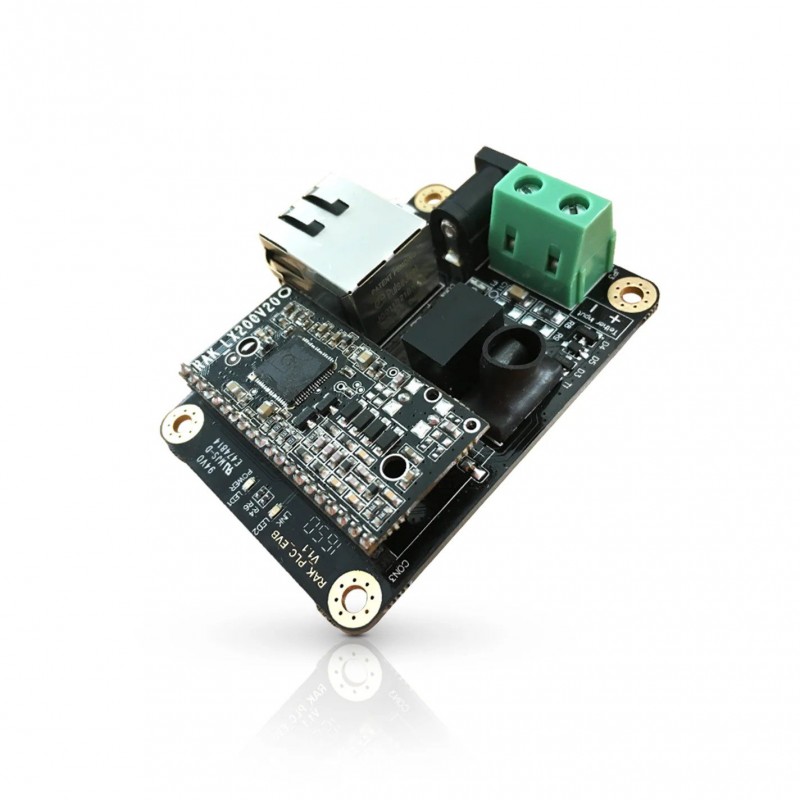

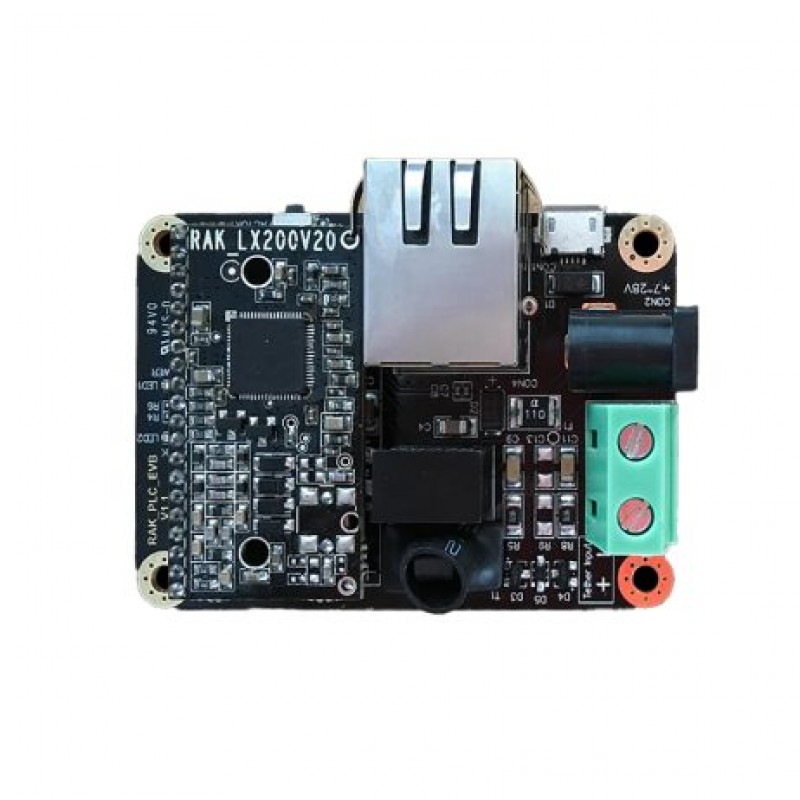

RakWireless WisLink PLC LX200V20 EVB Power Line Communication(PLC) Module

RakWireless WisLink PLC LX200V20 EVB Power Line Communication(PLC) Module based on Qualcomm QCA6410 SoC, is a new type of PLC based on OFDM (Orthogonal Frequency Division Multiplexing) modulation technology of data transmission products. The maximum transmission rate of power line* can reach 200 Mbps, EVB provides standard Ethernet front-end ports and also supports a twisted pair interface.

It supports 128-bit encryption AES and operates in the 2-30 MHz band without interfering with the existing CATV signal over the coaxial cables. Faster time-to-market and flexibility of product features.

Features:

1. SoC: Qualcomm QCA6410
2. Medium (Supports multiple transmission medium):Power Line: Range up to 300 meters for IP access, Twisted Pair: Range up to 600 meters for IP access
3. Speed: maximum physical layer data rate is 200Mbps
4. 128bit AES encryption
5. IEEE 1901 and HomePlug AV standards compliance
6. A maximum of 8 modules can interface with each other
7. Modular design, easy to embedded and implement to any existing devices

Package Includes:

1 x RakWireless WisLink PLC LX200V20 EVB Power Line communication(PLC) Module

3 x Wire (Red, Black, White)

1 x Adapter
