Radiomaster ER5A V2 2.4GHz ELRS PWM Receiver

ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for aircraft applications.

Features:

1. Based on the Revolutionary ExpressLRS System
2. High performance, high reliability, flexible configuration, fast response speed and ultra-long range
3. Support 5 PWM Channels
4. Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
5. Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
6. Optimized ground up PCB design
7. Supports Wi-Fi updates and WEBUI configuration
8. Compact size, easy to install. Perfect for aircraft applications
9. Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Package Includes:

1 x ER5A V2 2.4GHz ELRS PWM Receiver

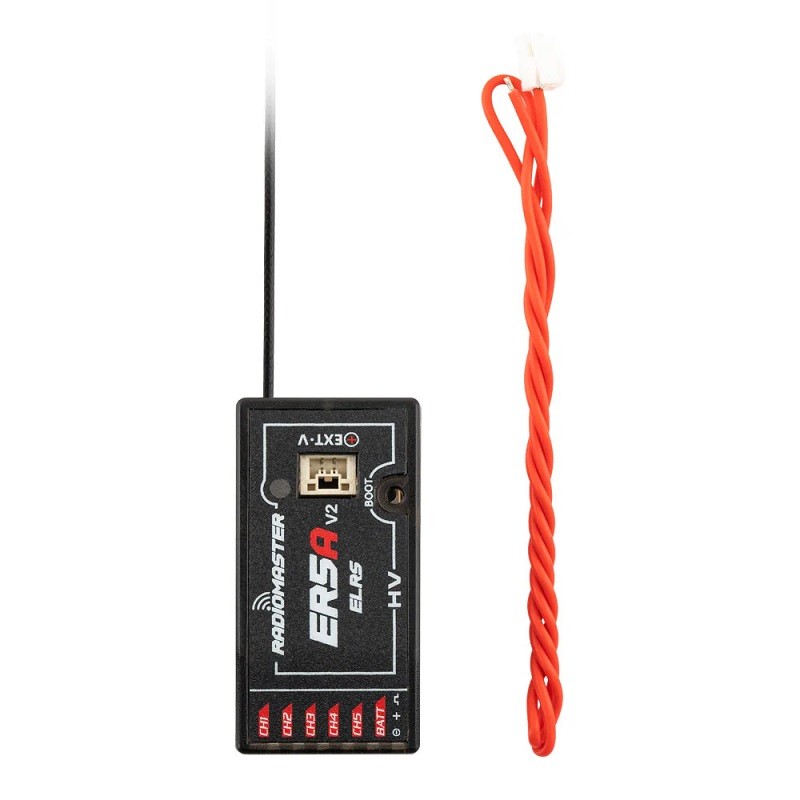

1 x Voltage telemetry wire
1 x User Card
