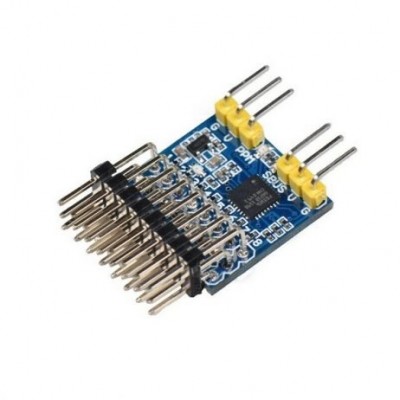

8 Channel PWM PPM SBUS Signal Conversion Module

8-channel remote control receiver signal conversion module using 32-bit MCU to collect signals and conversion, the input signal automatically identified, without manual switching. This signal converter Converts the ordinary remote control PWM signal into the wizard with the SBUS signal.

With this signal converter, you can use the DJI Wizards remote control on an ordinary plane (the wizards remote control receivers SBUS signal is converted to a normal PWM signal for ordinary ESC and steering gear).

With this signal converter, you can convert the PPM signal (coaching interface) of a normal remote control to a PWM signal (equivalent to a wired receiver, converted to a normal PWM signal for use with a normal ESC and steering gear).

Features:

1. This modules wide voltage design supports up to 20V input
2. This Module can create Input PWM signal and output PPM and SBUS signals at the same time

Package Includes:

1 x 8 Channel PWM PPM SBUS Signal Conversion Module

Specifications :-

Operating Voltage (VDC)	3.7 ~ 8.4
Working Current	<30mA
Length (mm)	29
Width (mm)	26
Height (mm)	10
Weight (gm)	5
