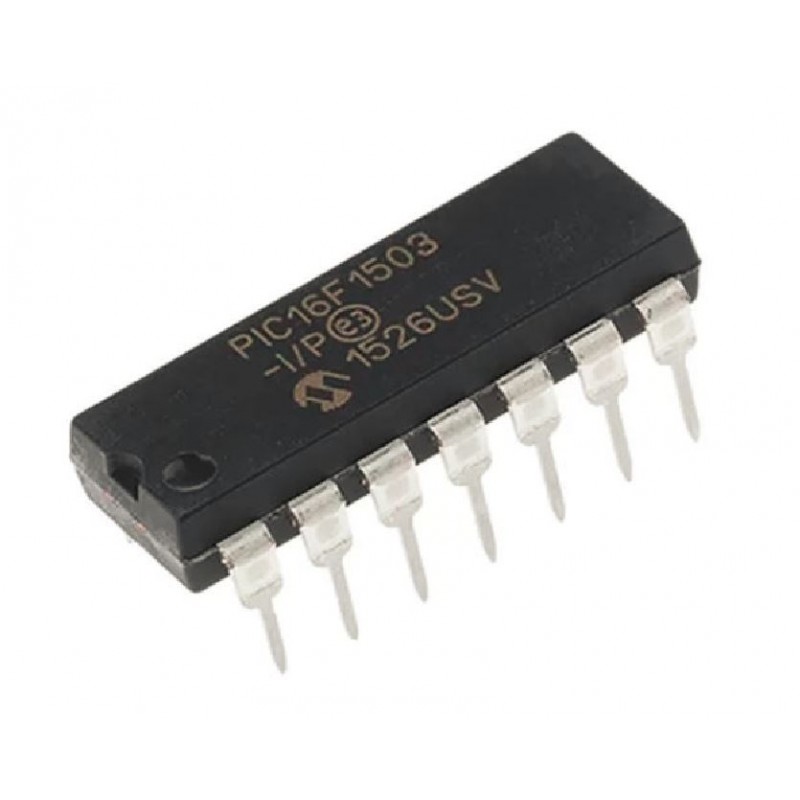

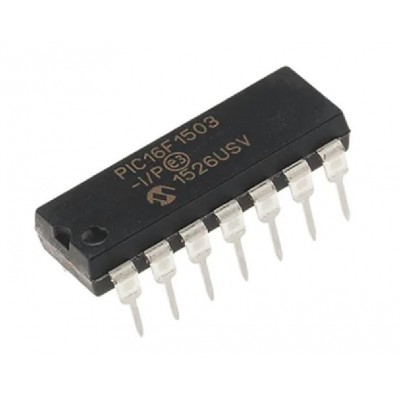

PIC16F1503 Microcontroller

The PIC16F1503-I/P is an enhanced mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash-based Microcontroller packs powerful PIC®(RISC) architecture. This product offers all of the advantages of the well-recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 12 general-purpose I/O pins, two comparators, 8-channel 10-bit analog-to-digital (A/D) converter, and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 20MHz with a wide operating voltage of 1.8 to 5.5V.

• 49 (14-bit wide) easy instructions to learn
• Hardware interrupt handling with the content save
• Programmable brown-out reset (BOR)
• Power-on reset (POR)
• Internal voltage reference (Bandgap)
• Four stand-alone PWM
• 2x Configurable logic cell modules (CLC)
• 1x Complementary waveform generator (CWG)/Complementary output generator (COG)
• Numerically controlled oscillator (NCO)
• In-Circuit Serial Programming (ICSP)

Applications:-

• Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Specifications:-

• Operating Voltage : 1.8 to 5.5V.
• Hardware Stack : 16 level
• File Select Registers : 2 (16-bit)
• Internal Oscillator : 16MHz
• Digital Timers : Two 8-bit
• Digital Timer : One 16-bit
• ROM : 3.5KB
• RAM : 128bytes
• I/O pins : 12 general-purpose I/O pins
• Analog-to-Digital (A/D) converter : 8-channel 10-bit analog-to-digital
• Frequency : 20MHz
• Package : DIP

Package Includes:-

1 x PIC16F1503 Microcontroller
