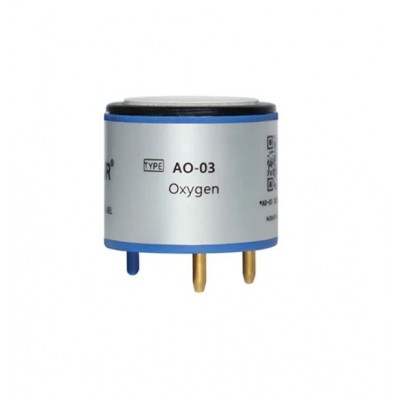

Oxygen Sensor Model AO-03
- Product Code: EPI17939
- Availability: 6
-
Rs.1069.00
- (Excluding 18% GST)
OR
AO-03 oxygen sensor is widely used in the fields of mining, steel manufacturing, petrochemical and air monitoring. For example, it can be integrated into oxygen alarms in mines, air quality detectors and commercial air purification equipment The data provided in this document are valid at 20° C, 50% RH and 1013 mbar for 3 months after the manufactured date of sensor. Please strictly follow the instructions for operating the oxygen analyzer and replacing the oxygen sensor.
Features:-
- Linear output from 1 to 25% Vol.
- No external power supply
- Plug-and-play
- Quick response
- Accurate and reliable
Specifications:-
- Model : AO-03
- Product Type : Oxygen Sensor
- Output Signal : 0.1±0.03 mA in Air
- Measurement Range : 1~25% Vol. O²
- Response Time ( μS) : <15 s （T90）
- Operating Temperature Range : 0 to 50℃
- Operating Pressure Range: Atmospheric : ±20%
- Operating Humidity Range : 5-99% RH non-condensing
Package Includes:-
1 x Oxygen Sensor Model AO-03
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
