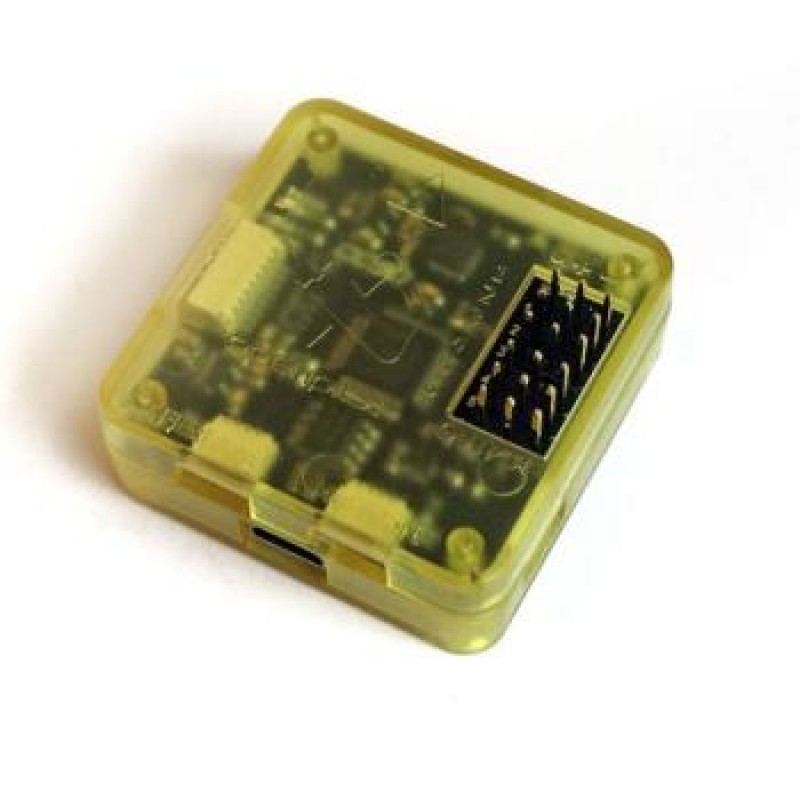

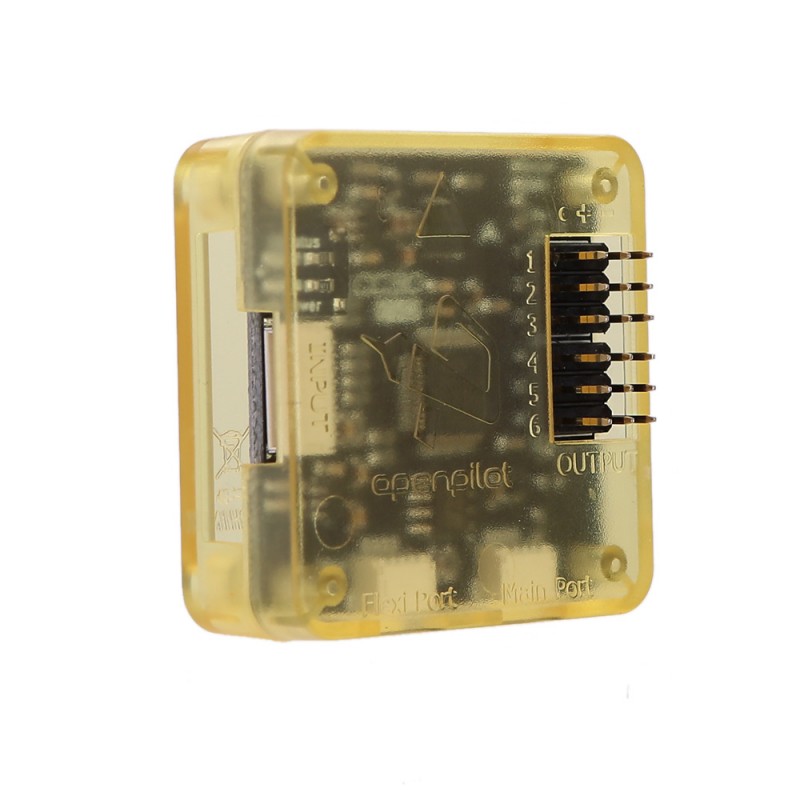

OpenPilot CC3D EVO Flight Controller Straight Pin

This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables.It also supports S.BUS.Evo is equipped with a powerful 32-bit STM32 processor with 128kb Flash and 20kb RAM.The 3-axis MEMs technology is used for both gyro and accelerometer.

The OpenPilot CC3D EVO Flight Controller Straight Pin card is easy to use with your computer.With USB and OpenPilot software, the card can be programmed in Windows, Mac, or Linux without the need for any drivers to install.OpenPilot is a very user-friendly program designed to be used by anyone, regardless of programming experience.

TheOpenPilot CC3D EVO Flight Controller Straight Pin andOpenPilot CC3D EVO Flight Controllerside Pin boards may not have any technical difference. There is the only difference between connector pins.(one has a Straight pin and other have 90 side pin.)

Note: Please dont flash/Update the Default firmware. Updated or new firmware may cause a problem of connectivity with PC/Laptop. This OpenPilot CC3D EVO Flight Controller is available in black & white colored PCBs, you may get any of them randomly.

Features :

CC3DEVO HardwareFeatures :

1. WIthafunctionofbeingdirectlypluggedintothesatellitereceiver(It needntconversion cable)
2. PowerfulSTM3232-bitmicrocontrollerrunningat90MIPswith128KBFlashand20KBRAM.
3. 3-axishigh-performanceMEMsgyrosand3-axishigh-performanceMEMsaccelerometer.
4. Tiny36 x 36 mm4layerPCBforsuperiorelectricalnoisereductionandflightperformance.
5. SoftwaresupportforWindows,Mac, andLinux.
6. Directhigh-speedUSBsupportwithnodriversrequired,atrueplugandplaydevice.
7. Spektrumsatellitereceiversupport.
8. FutabaS-BUShardwaresupport.
9. InnovativeFlexi-porttechnologyforsuperiorportflexibility.
10. 4MbitsonboardEEPROMforconfigurationstorage.

Flexiport :

• Copter Control also offers the innovative Flexiport which provides either I2C connectivity or a second serial port. Flexiport gives Copter Control the flexibility to use either I2C and a single serial port or dual serial port, according to your connectivity needs.

Superioruserexperience :

1. OpenPilothastriedtomakeyourexperiencewiththeCC3Daseasyandtrouble-freeaspossible.Naturally, forahigh-endproduct,thehardware iscomplete;thereisnothing tosolder.TheincludedRC harnessallowsyoutoconnectanystandardPWMreceiver. AllCopterControlboardsaretestedbeforeshippingandcomewithbootloaderalreadyflashed.
2. Astandardmini USB cable (notincludes)is used toload the latest firmwareand configure everythingforyouruniqueairframe. TheOpenPilotproject,whilststillyoung,ittryingtomakeOpenSource much more user-friendly.
3. OpenPilotsoftwareisdesignedtobeusedbyeverybody!Allmajoroperatingsystemsaresupportedandinstallpackagesareprovided.
4. ThesoftwareisallFreesoftwareundertheGPLv3licenseandnotonlyareyouwelcometohackit,butweencourageit.

SensorsandComponents :

1. 3-axisSupportsseveralcommonRCinputs:6PWMchannels,combinedPPM,Spektrum/JRDSM2,
2. SupportsseveralcommonRCinputs:6PWMchannels,combinedPPM,Spektrum/JRDSM2, DSMJ,DSMXsatellites,andFutabaS.Busreceivers.
3. Simultaneoussupportformultiplereceivers.
4. ReceiverPortfunctions(configurable):6PWMinputchannelsorcombinedPPMstream,4PWMoutputchannels
5. MainPortfunctions(configurable):serialtelemetry(default),GPS,S.Bus,Spektrum/JRsatellites
6. FlexiPort(configurable):serialtelemetry,GPS,Spektrum/JRsatellites,orI2Cperipherals(under development)
7. 10PWMoutputstoservosorESCs,orforcamerastabilization
8. Camerastabilization supportsupto3axis cameramountswith stabilizationandmanual controlfromanyofconfiguredreceivers.
9. OnboardUSBconnectivityforeasyconfiguration.
10. USBandserialtelemetryandconfiguration
11. SupportedbypowerfulOpenPilotGCS
12. 4Mbitonboardmemory
13. 3CQuaternionbasedcomplementaryfilterrunningat500Hz

Package Includes :

1 xOpenPilot CC3D EVO Flight Controller Straight Pin

2 x Connecting Wires.

1 x PC plastic shell

Tutorial Links :

Configure OpenPilot CC3D Evo
