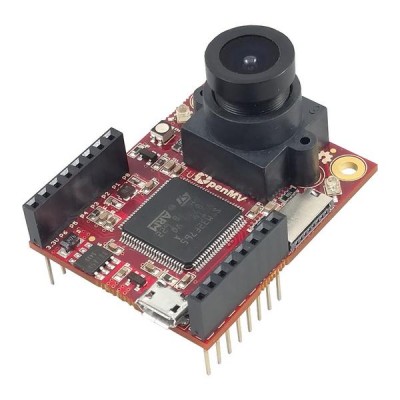

OpenMV Cam M7 Smart Vision Camera

The OpenMV Cam M7 Smart Vision Camera is a small, low power, microcontroller board that allows you to easily implement applications using machine vision in the real world. You program the OpenMV Cam in high-level Python scripts (courtesy of theMicroPythonOperating System) instead of C/C++.

This makes it easier to deal with the complex outputs of machine vision algorithms and working with high-level data structures. But, you still have total control overyour OpenMV Cam and its I/O pins in Python. You can easily trigger taking pictures and videos on external events or execute machine vision algorithms to figure out how to control your I/O pins.

The OpenMV Cam Features:

TheSTM32F765VIARM Cortex M7 processor running at 216MHz with 512KB of RAM and 2MB of flash. All I/O pins output 3.3V and are 5V tolerant. The processorhas the following I/O interfaces:

1. A full-speed USB (12Mbs) interface to your computer. Your OpenMV Cam will appear as a Virtual COM Port and a USB Flash Drive when plugged in.
2. ASD Card socket capable of 100Mbs reads/writes which allows your OpenMV Cam to record video and easy pull machine vision assets off of the SD card.
3. An SPI bus can run up to 54Mbs allowing you to easily stream image data of the system to either the LCD Shield, the WiFi Shield, or another microcontroller.
4. An I2C Bus, CAN Bus, and an Asynchronous Serial Bus (TX/RX) for interfacing with other microcontrollers and sensors.
5. A 12-bit ADC and a 12-bit DAC.
6. Three I/O pins for servo control.
7. Interrupts and PWM on all I/O pins (there are 10I/O pins on the board).
8. And, an RGB LED and two high power 850nm IR LEDs.

The OV7725 image sensor is capable of taking 640480 8-bit grayscale images or 640480 16-bit RGB565 images at 60 FPS when the resolution is above 320240 and 120 FPS when it is below. Most simple algorithms will run at above 30 FPS. Your OpenMV Cam comes with a 2.8mm lens on a standard M12 lens mount. If you want to use more specialized lenses with your OpenMV Cam you can easily buy and attach them yourself.

To download OpenMV Cam M7 firmware files, click here.

Pinout:

Features:
